Model BCF-24/65/110, BCM-110
2-2. UNPACKING
(Continued)
The BCF-24 weighs about 250 lbs (112.5 kg), the
BCF-65 about 340 lbs (153 kg), and the BCF/BCM-110
about 364 lbs (165 kg). Care should be taken when
lifting unit to prevent personal injury.
4.
Open door and remove packing from racks and the hori-
zontal slides from the inside of the unit.
5.
Peel off any protective covering from the exterior of the
cabinet.
6.
Install the slides onto the vertical racks.
7.
Your blast chiller/freezer is now ready for operation.
2-3. ELECTRICAL
The blast chiller/freezer is available as a 208, 230, or 200 VAC, 50
or 60 Hz, single phase unit, both for domestic and international use.
The data plate, located on the left side of the unit, will specify the
correct electrical supply. The BCF-24 and 65 are shipped with a
6 foot, 7 inch (2 m) cord and plug, and requires a grounded
receptacle with a separate electrical line protected by a fuse or
circuit breaker of the proper rating. The NEMA number for the
plug is NEMA 6-20P.
This unit must be adequately and safely grounded.
Refer to local electrical codes for correct grounding
procedures. If unit is not adequately grounded, electri-

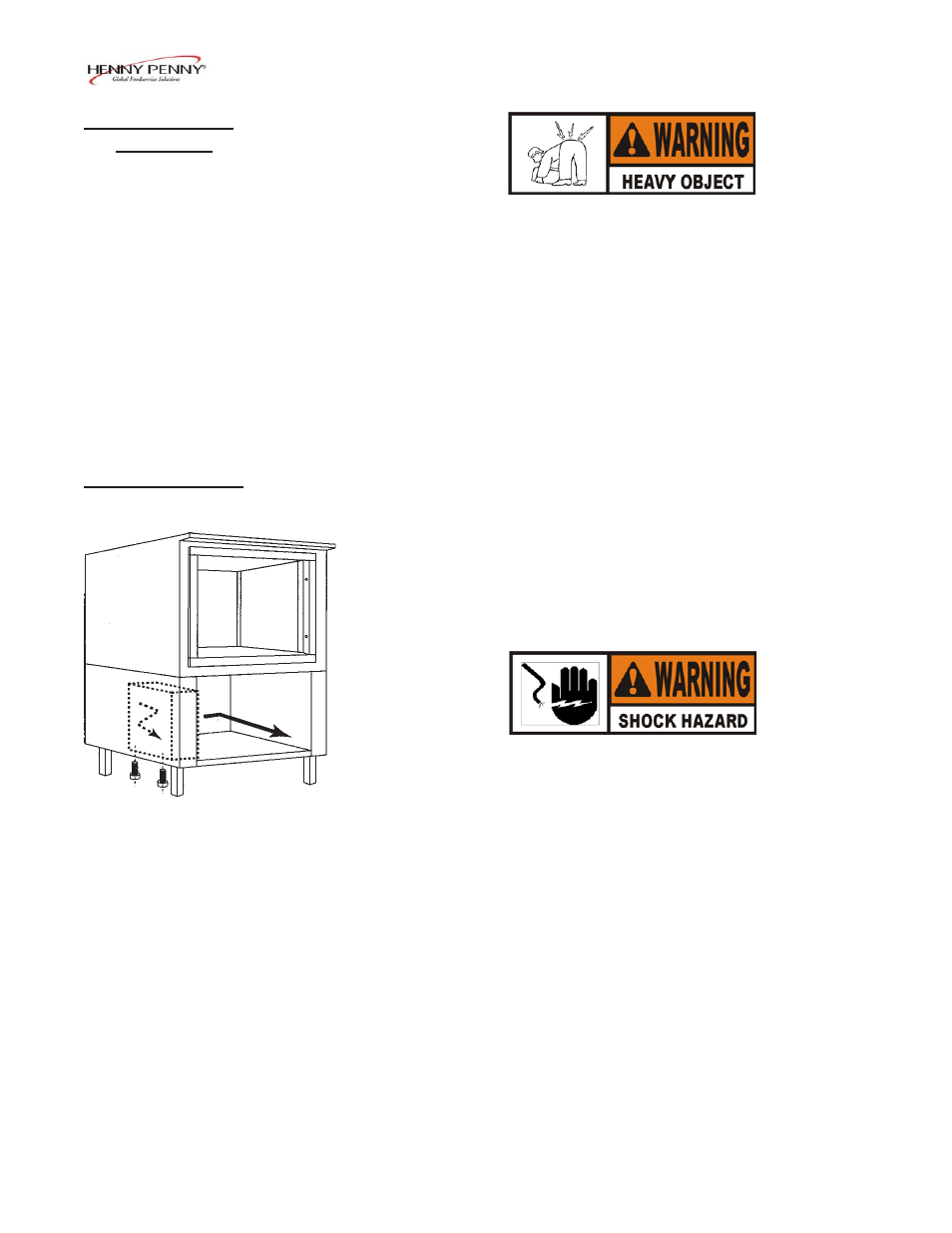

Electrical Box Location
cal shock could result.
To avoid electrical shock, this appliance must be
equipped with an external circuit breaker which will
disconnect all ungrounded (unearthed) conductors.
Refer to the table below for electrical ratings:
Model No.
Volts
Watts
Amps
Freq.
Phase
BCF-24
208-240
2300
4.3
60
1
230
1800
9
50
1
200
1800
11
50
1
BCF-65
208-240
3000
7
60
1
230
2900
13
50
1
200
2500
12
50
1
BCF-110
208-240
4600
17
60
3
and
400
3100
9
50
3
BCM-110
200
3800
17
50/60
3
2-2
