Amplifier Connection (TO AUDIO AMP)
Connect to an external audio amplifier input for listening to TV from a stereo system speakers.
Audio Adjustments
1. Select INTERNAL SPEAKER ON located in the AUDIO menu on screen.
2. Set amplifier volume to minimum.
3. Adjust TV volume to desired level.
4. Adjust amplifier volume to match the TV.
5. Select INTERNAL SPEAKERS OFF&VAO from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled from the TV.
Note: TO AUDIO AMP terminals should not be connected directly to external speakers.
In OFF&FAO the volume is controlled by the external amplifier.

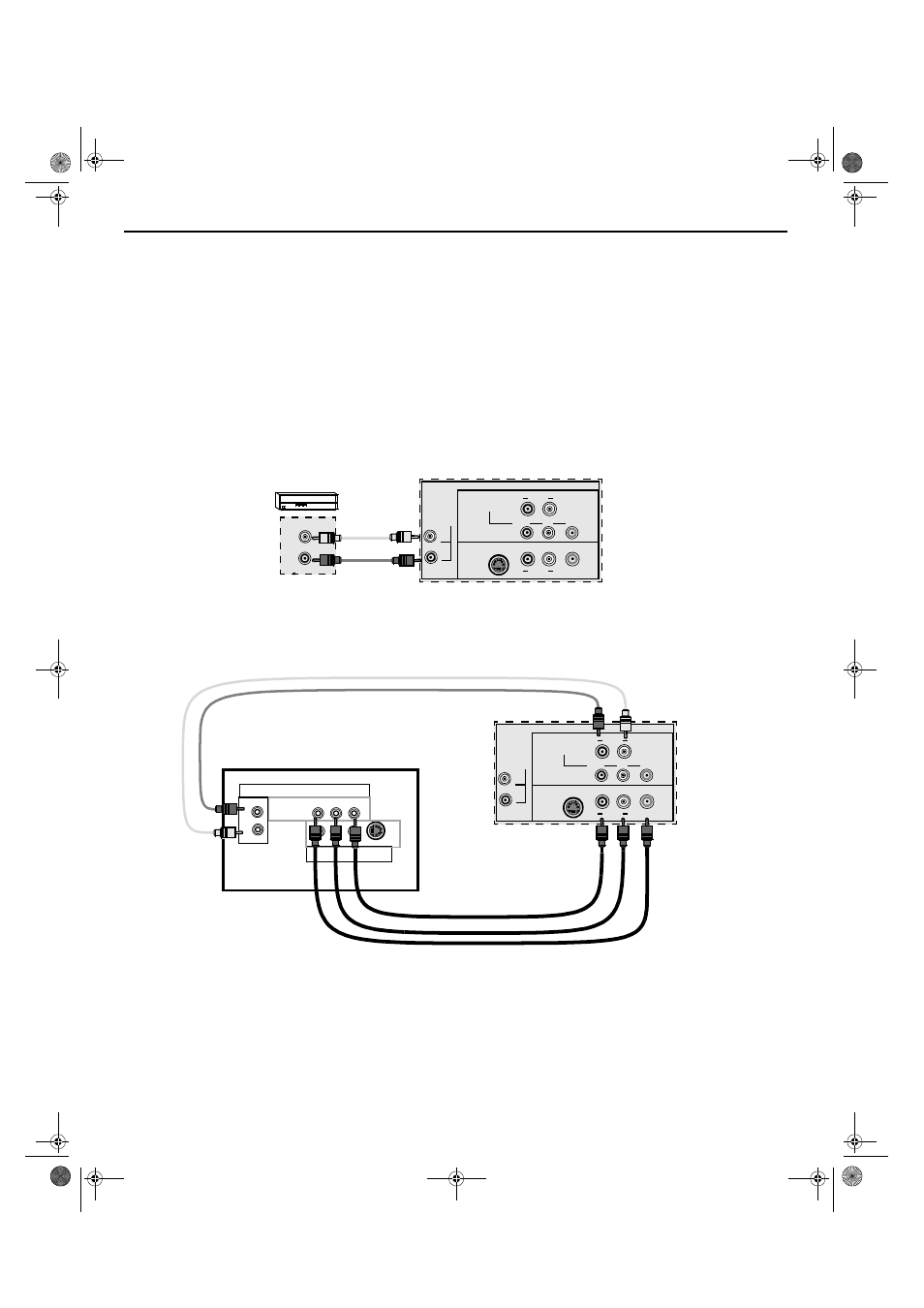

Digital TV - Set-Top Box (DTV-STB) Connection
Use this diagram to connect a DVD player or a DTV-STB (Digital TV-Set-Top Box) to the back of your TV.
Note: There are three video inputs, Y, P
B
, and P
R
. Separate component color inputs provide luminance and color separation. Use the
L (left) and R (right) audio inputs.
