Installation, Procedure – Hitachi 27UX01B User Manual
Page 6
Installation
- 6 -
Optional Equipment Connections
Audio / Video Connections
VCRs, video disc players, video game consoles, and SAT equipment can also be connected to the video inputs. See the
optional equipment manual for details.
Procedure
1.

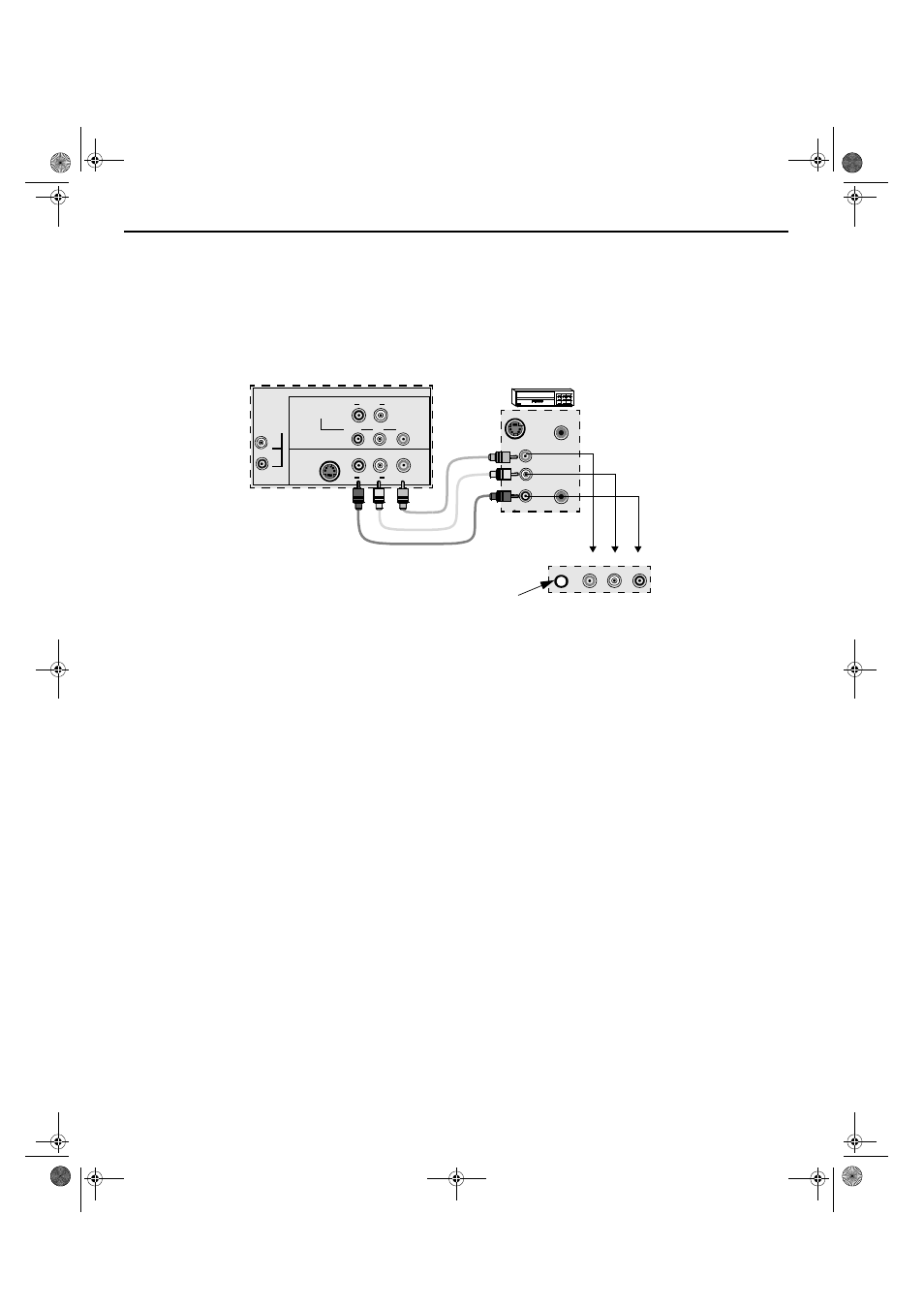

Connect equipment as shown to front or rear Audio/Video input jacks.
2.
Select the video mode by pressing INPUT button.
3.
Operate optional equipment as instructed in equipment manual.
NOTE:
The S-VIDEO connection is optional and overrides normal VIDEO connection.
Use INPUT 2, AUDIO R and L with S-VIDEO connection.
TO AUDIO
AMP
VIDEO
S-VIDEO
R AUDIO
L
COMPONENT
VIDEO INPUT
P
R
Y/VIDEO
P
B
R
L
INPUT 1
R AUDIO
L
INPUT 2
L
R
AUDIO OUT
VIDEO OUT
VCR
ANT INPUT
CABLES NOT SUPPLIED
OUTPUT
TERMINALS ON BACK OF TV
S-VIDEO OUT
L AUDIO IN R
VIDEO 3
Jack used for 1/8”
headphone plug
TERMINALS ON FRONT OF TV
HPJ
0348E3.fm Page 6 Tuesday, April 25, 2000 4:15 PM
