2. Installing the Icemaker
1) Unpack the icemaker, and remove all shipping cartons, tape(s) and packaging.

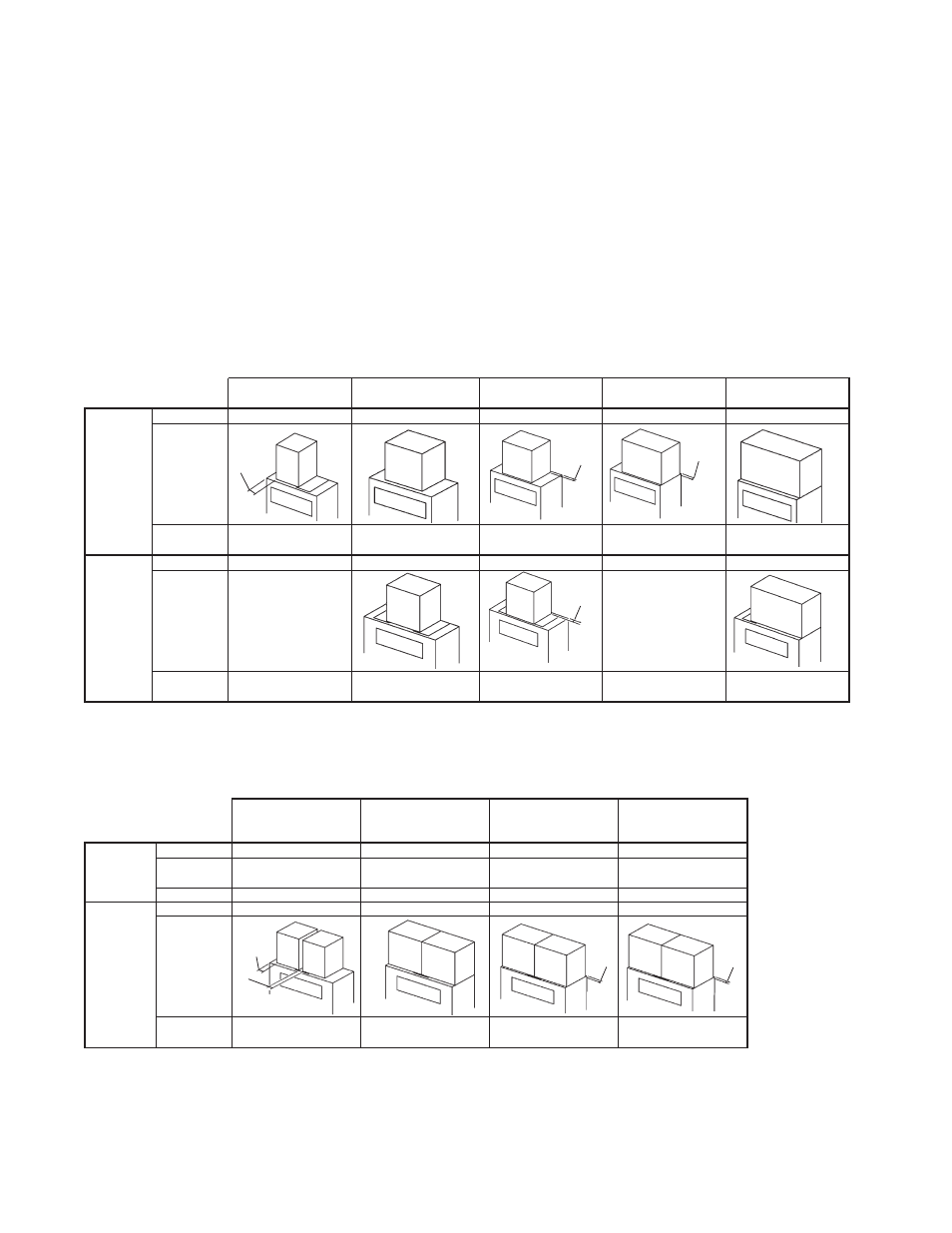

2) Refer to the charts below and also to the "SET UP" instructions on the icemaker when
installing the icemaker.
3) Apply the gasket (included) to the top of the bin and around the perimeter where the
icemaker will be installed. Each corner should be mitered and sealed with food-grade
silicone.
4) Use the adjustable legs to level the ice bin in both the left-to-right and front-to-rear
directions.
Two 22" WIDE UNITS Two 30" WIDE UNITS
(except KML, KMD
& KM-900)
Two 30" WIDE UNITS
(KML only)
Two 30" WIDE UNITS
(KMD only)
B-1150SS
B-1300SS
Top Kit N/A N/A N/A N/A
Unit
Position
N/A N/A N/A N/A
Cover N/A N/A N/A N/A
B-1500SS
B-1650SS
Top Kit 60" UNIVERSAL 60" UNIVERSAL 60" UNIVERSAL 60" UNIVERSAL
Unit
Position
Cover
(3A3198-01)
YES YES YES YES
3" 1"
4.5"
3"
* One 30" wide unit on a B-1500SS or B-1650SS requires two covers (HS-2111).
22" WIDE UNIT 30" WIDE UNIT
(except KML & KMD)
30" WIDE UNIT
(KML only)
42" WIDE UNIT 48" WIDE UNIT
B-1150SS
B-1300SS
Top Kit 48" UNIVERSAL 48" UNIVERSAL 48" UNIVERSAL 48" UNIVERSAL 48" UNIVERSAL
Unit
Position
Cover
(3A3198-01)
YES NO NO NO NO
B-1500SS
B-1650SS
Top Kit N/A 60" UNIVERSAL 60" UNIVERSAL N/A 60" UNIVERSAL
Unit
Position
N/A N/A
Cover
(3A3198-01)
N/A YES (QTY 2) YES (QTY 2) N/A YES
3"
*
1"
1"
7"
*
