Installation
18

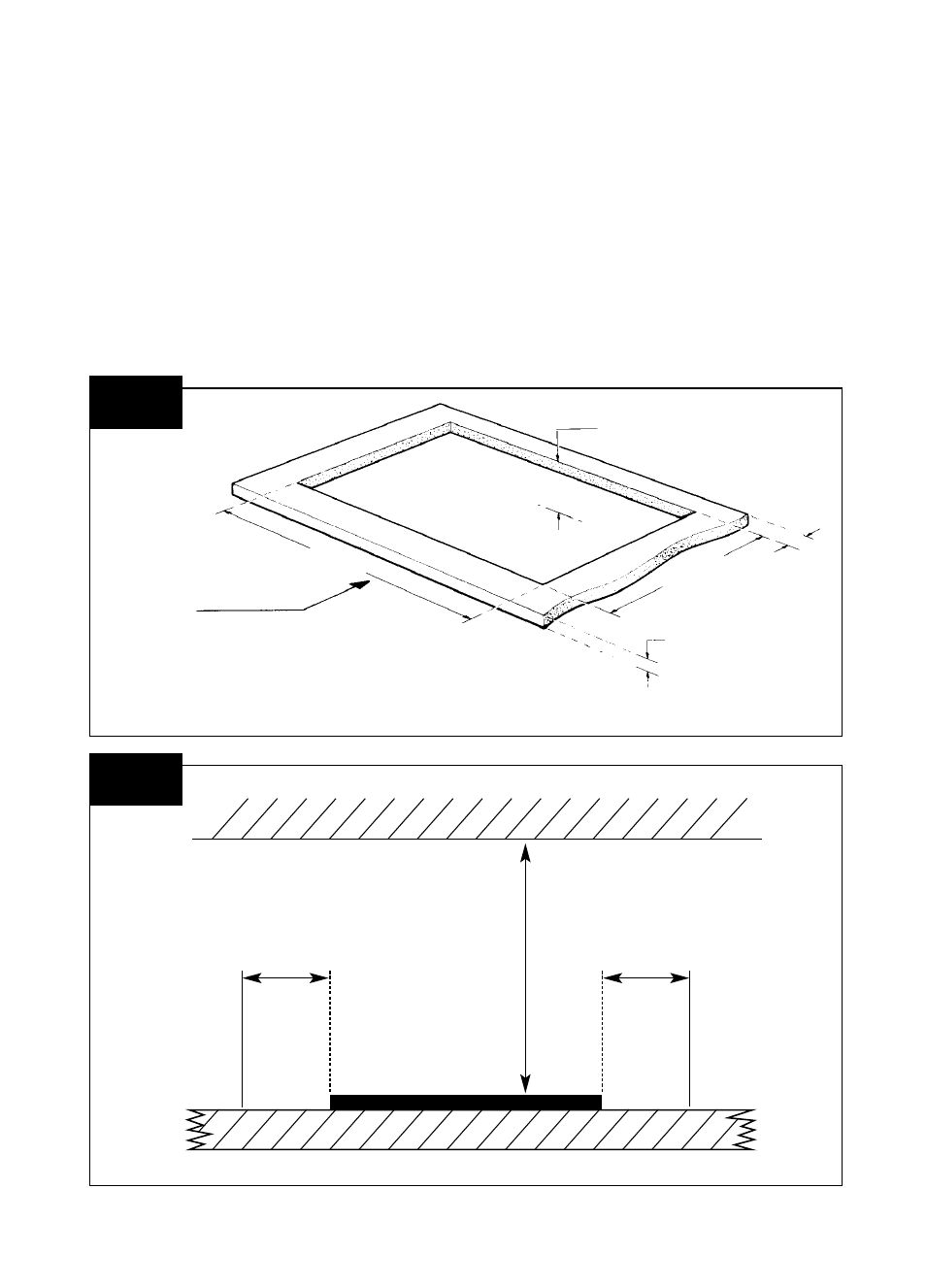

Fig. 1
IMPORTANT
Minimum unobstructed depth
50mm
Worktop thickness
Preferred 30-40mm
19mm minimum
recommended
55mm
490mm
560mm
Front edge
of worktop
FITTING THE HOB
Unpack the hob from the carton.
Lower the hob into the worktop ensuring the mains lead is fed into the base unit and is not
trapped under the flanges.
Fix the hob to the worktop.
Connect the hob to the electrical supply (see INSTALLATION).
Ensure that the hob is functioning correctly prior to use. Instruct the user in the operation of the
hob.
Fig. 2
100mm
minimum
clearance
100mm
minimum
clearance
650mm
minimum
clearance
HOB
