TNT Physical Specifications
DEALER NAME:
Mineral tank sizes shown are with composit/FRP tanks.
RATED CAPACITY FLOW RATES (gpm)
RESIN LOW SALT MEDIUM SALT HIGH SALT BKW
MODEL CU.FT. GRAINS/LBS GRAINS/LBS GRAINS/LBS 15 PSI 25 PSI GPM
TNT-300-24 10 190,000/60 280,000/100 320,000/150 120 170 12
TNT-300-30 10 190,000/60 280,000/100 320,000/150 175 225 20
TNT-450-30 15 285,000/90 420,000/150 480,000/225 158 212 20
TNT-450-36 15 285,000/90 420,000/150 480,000/225 200 278 30
TNT-600 20 380,000/120 560,000/200 640,000/300 189 257 30
TNT-750 25 475,000/150 700,000/250 800,000/375 212 280 40
TNT-900 30 570,000/180 840,000/300 960,000/450 215 282 40
TNT-1200 40 760,000/240 1,120,000/400 1,280,000/600 213 280 50
TNT Capacity Ratings
1. Steel tank design configurations available up through 60” tank diameters. Consult factory for details.
OPERATING CONDITIONS
1. Water Pressure 30 - 100 psi.
2. Water temperature is not to exceed 110°F and the unit cannot be subject to freezing conditions. Consult factory for higher water temperature applications.
3. Limit of 2 ppm of Ferrous Iron. Add 3 grains per gallon of hardness for each ppm of iron present.
4. Flex connectors and vacuum breakers are required when using the PolyGlass Composite mineral tanks.
5. Backwash flow rates are calculated at 4 gpm per sq. ft. of bed area and rounded off based on 50ºF water temperature.
6. Refer to Hellenbrand Bulletin 2050 “Flow Rates and Soft Water Quality (Hardness Leakage) if your application requires that levels of hardness leakage do not exceed “x”.

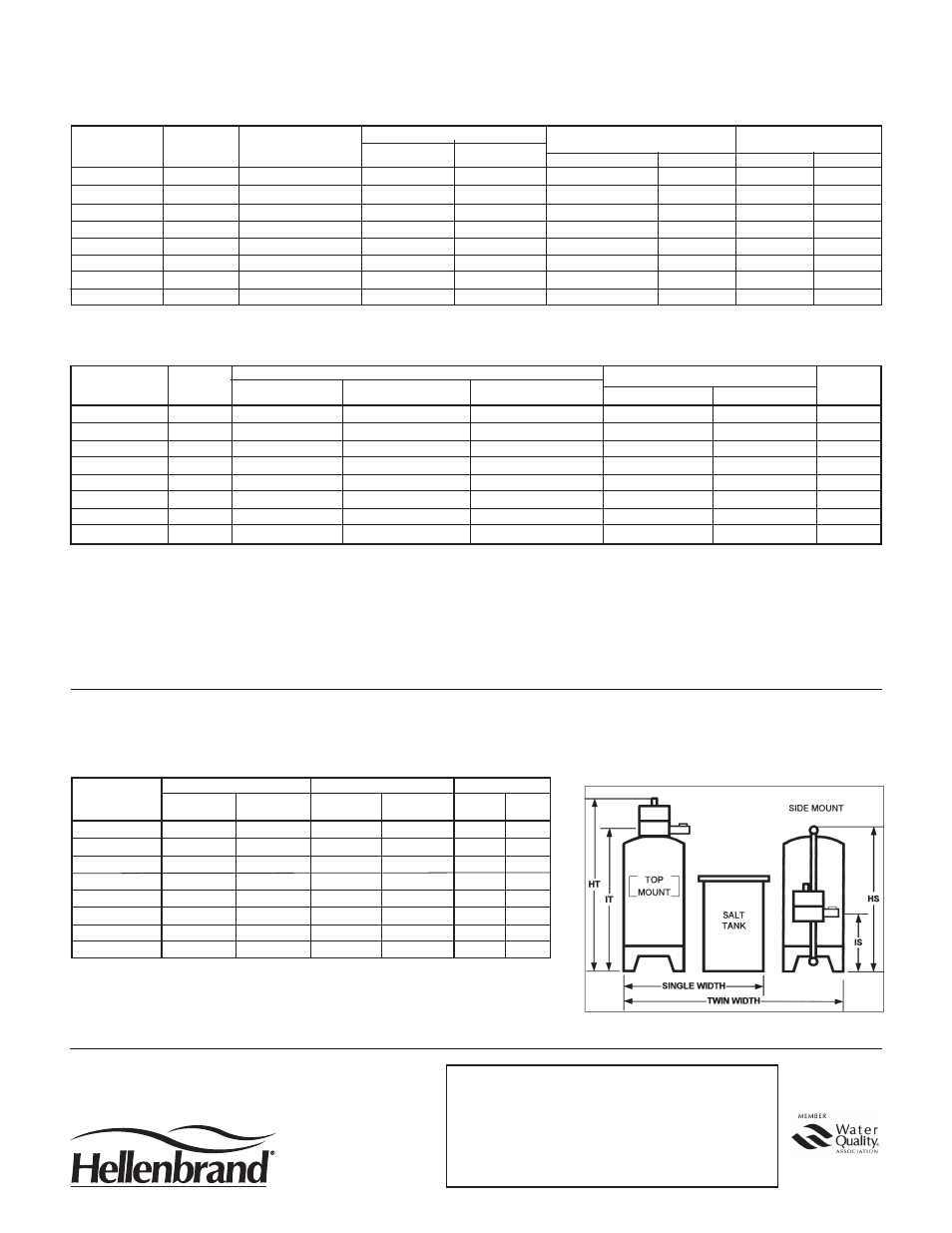

TNT Series Fiberglass Dimensions
with Six-Inch Flange Opening
106612
6/12-LBRY
TNT-300-24 101 87.5 82.5 51 62 99
TNT-300-30 101 87.5 80 51 68 108
TNT-450-30 112 96.5 80 51 83 117
TNT-450-36 112 97 81 51 83 129
TNT-600-36 112 97 81 51 83 129
TNT-750-42 113 104.5 92 51 92 144
TNT-900 113 104.5 92 51 92 144
TNT-1200-48 116 103 93 51 106 164
All dimensions ±1” and are subject to change without notice. Use as reference only.
*Allow additional 12” for resin filling on HT dimension.
**Allow additional 18” for resin filling on HS dimension.
Call factory for optional tank & dimensional configurations.
Product Improvement designs are subject to change without notice.
HELLENBRAND, INC.
1-800-626-1417
www.hellenbrand.com
HEIGHT INLET/OUTLET HEIGHTS SUGG. WIDTH
TOP MOUNT SIDE MOUNT TOP MOUNT SIDE MOUNT SINGLE TWIN
MODEL HT* HS** IT IS
RECOMMENDED BRINE TANK MINERAL TANK APPROXIMATE
PIPE SIZE MINERAL TANK SIZE SALT STORAGE GRAVEL UNDERBEDDING SHIPPING WEIGHT
MODEL (INCHES) (INCHES) (INCHES) ( LBS) 1/4" X 1/8" #20 SINGLE TWIN
TNT-300-24 3 24 X 72 24 X 50 1,110 0 150 1085 2145
TNT-300-30 3 30 X 72 24 X 50 1,110 200 75 1160 2295
TNT-450-30 3 30 X 72 30 X 50 2,030 200 75 1600 3120
TNT-450-36 3 36 X 72 39 X 48 2030 300 150 1835 3590
TNT-600 3 36 X 72 39 X 48 1,640 300 150 2115 4135
TNT-750 3 42 X 72 42 X 60 2,580 500 175 3475 6325
TNT-900 3 42 X 72 50 X 60 4,130 500 175 4280 8560
TNT-1200 3 48 X 72 50 X 60 3,495 700 200 4800 8760
