2-3/8"

(6 cm)

Chime Back Case

Keyhole Mounting

Chime Back

Case Mounting

Close Chime Case

From Bottom

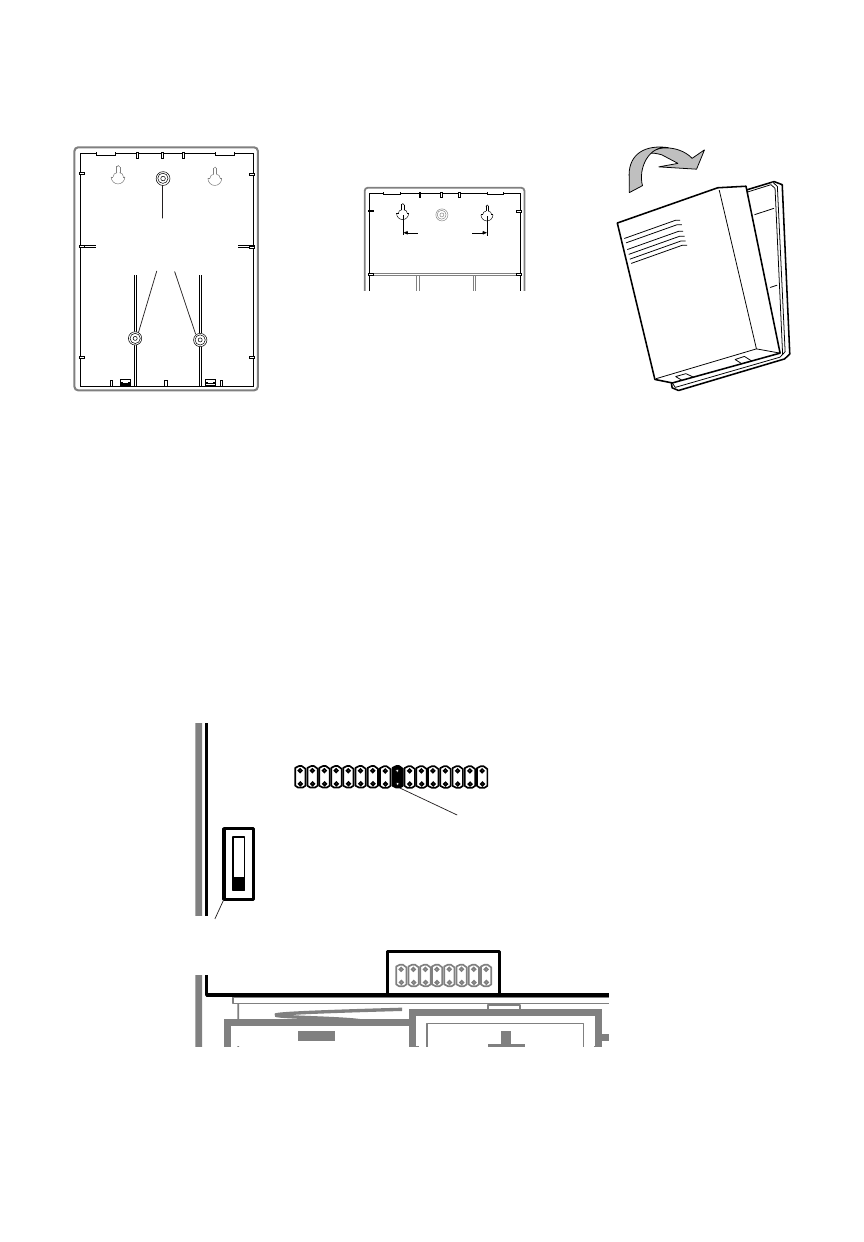

The chime can be mounted by using the 3 holes in the back of the case, or by
using 2 screws with the keyholes.

Holes for Wall

Mounting

Snap the front of the chime case back on. Start with the bottom edge of the
case aligned with the bottom of the back plate.

Music Selection

Your Heath

/Zenith wireless doorbell has 64 different selectable tunes. The

songs in your musical chime are arranged in four groups of 16 songs per
group. To change the selected song, first select the group (A to D) with the
slide switch. Then move the song selection jumper to the desired song in
that group. See page 4 for Musical Chime Song List.

NOTE: In this illustration, the slide switch and song selection jumper
are set at D9—Westminster chime. This is the factory default setting.

Battery

A
B
C
D

Slide

Switch

Song selection jumper

set for song #9

1 2 3 4 5 6 7 8

Inside

Chime
