SPECIFICATIONS
PRODUCT DATA
Model Name
VRM12
Part Number
Black: 0010102 White: 0011351
File creation date
7/29/2004
SPECIFICATION SHEET TABULAR DATA
Descriptive Data
Ways
Type
Mode
2-way
Full-Range
Single Amp
CONFIGURATION
SubsystemTransducer
Loading
LF
1x12 in cone — Sealed
HF
1x1 in exit compression driver — Horn-loaded
PERFORMANCE
Operating Range
73 Hz to 20000 Hz
Nominal Beamwidth
Horizontal
90°
Vertical
90°
Axial Sensitivity (whole space SPL)
94 dB
73 Hz to 20000 Hz
Peak Sensitivity (whole space SPL)
97 dB
20 Hz to 20 kHz
Input Impedance (ohms)
Nominal
Minimum
8
6.6 @ 200 Hz
Recommended High-Pass Filter
High Pass
=> 60 Hz, 24 dB/octave Butterworth
Power Handling
300 W
49 V @ 8 ohms
Calculated Maximum SPL
Average
Peak
119 dB
125 dB

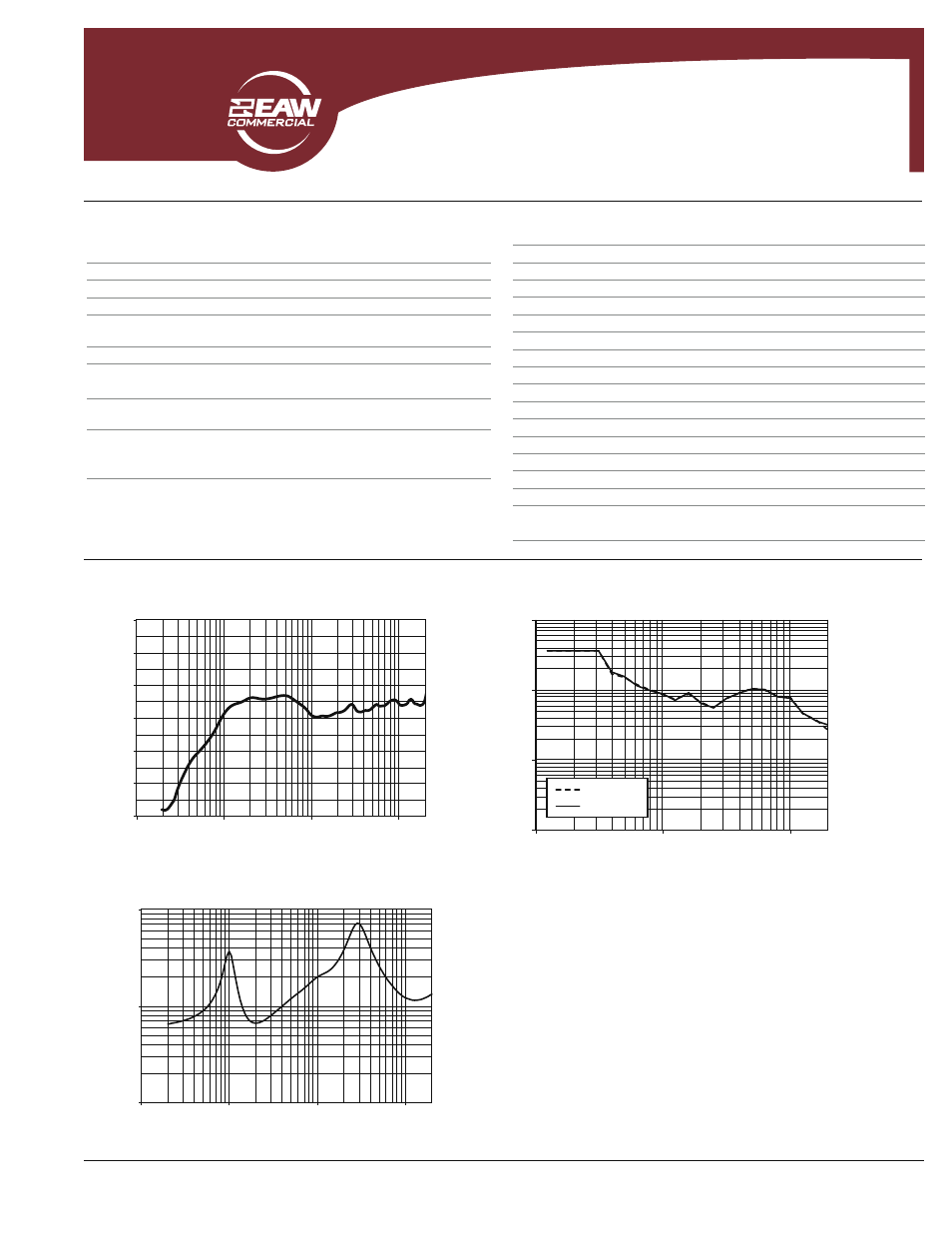

VRM12 FREQUENCY RESPONSE ON-AXIS
