12
Clearance Heights
When installing above an Electrolux hob (as specified in the table below) the minimum distance between the
surface of the hob elements/pan supports and the lower grille of the cooker hood must be 60cm (23 5/8”).
MODEL FRONT LEFT REAR LEFT REAR RIGHT FRONT RIGHT TOTAL
EPCH 1.7Kw 1.2Kw 1.7Kw 1.2Kw 5.8Kw
EPEH 1.5Kw 1.0Kw 2.0Kw 1.5Kw 6.0Kw
EPGH 3.0Kw 2.0Kw 2.0Kw 1.0Kw 8.0Kw

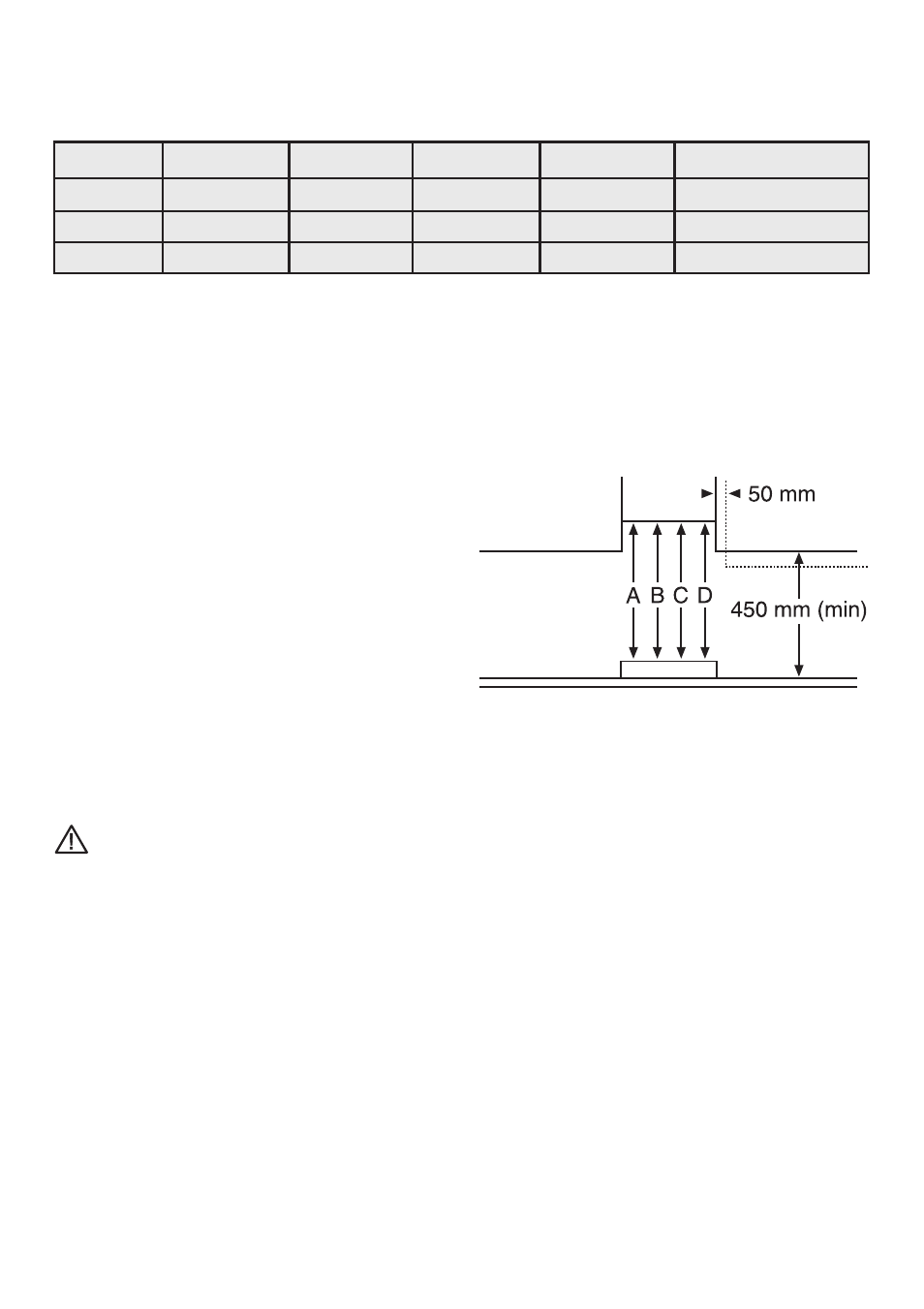

A: Built-in Electric Hob: 650mm minimum clearance
B: Built-in Gas hob: 700mm minimum clearance
C: Slot-in Electric Cooker: 685mm minimum clearance
D: Slot-in Gas Cooker:
787mm minimum clearance
Hob
Clearance Heights above other
Manufacturers Cooking Appliances
When installed above any other make of
cooking appliance the distance must be as
follows:
A minimum clearance height of 650mm(25 1/2 ”) is
required when installed above a built-in electric hob,
or 700mm (27 1/2 ”) when installed above a built-in
gas hob.
A minimum clearance height of 685mm (27”) is
required when installed above a slot-in electric oven,
or 787mm (30 1/2 ”) when installed above a slot-in gas
oven.
When installed between adjoining wall
cabinets, the wall cabinets must not overhang
the hob and the distance between the
underside of the cabinet and the worktop
must be 450mm. If the height of the wall
cabinet is less than 450mm a gap of 50mm
must be maintained either side of the hob.
This cooker hood must not be installed above
a cooking appliance with a high level grill.
