Electro-Voice EVI-15 - Manual (Page 16)

Part Number 534762—9822

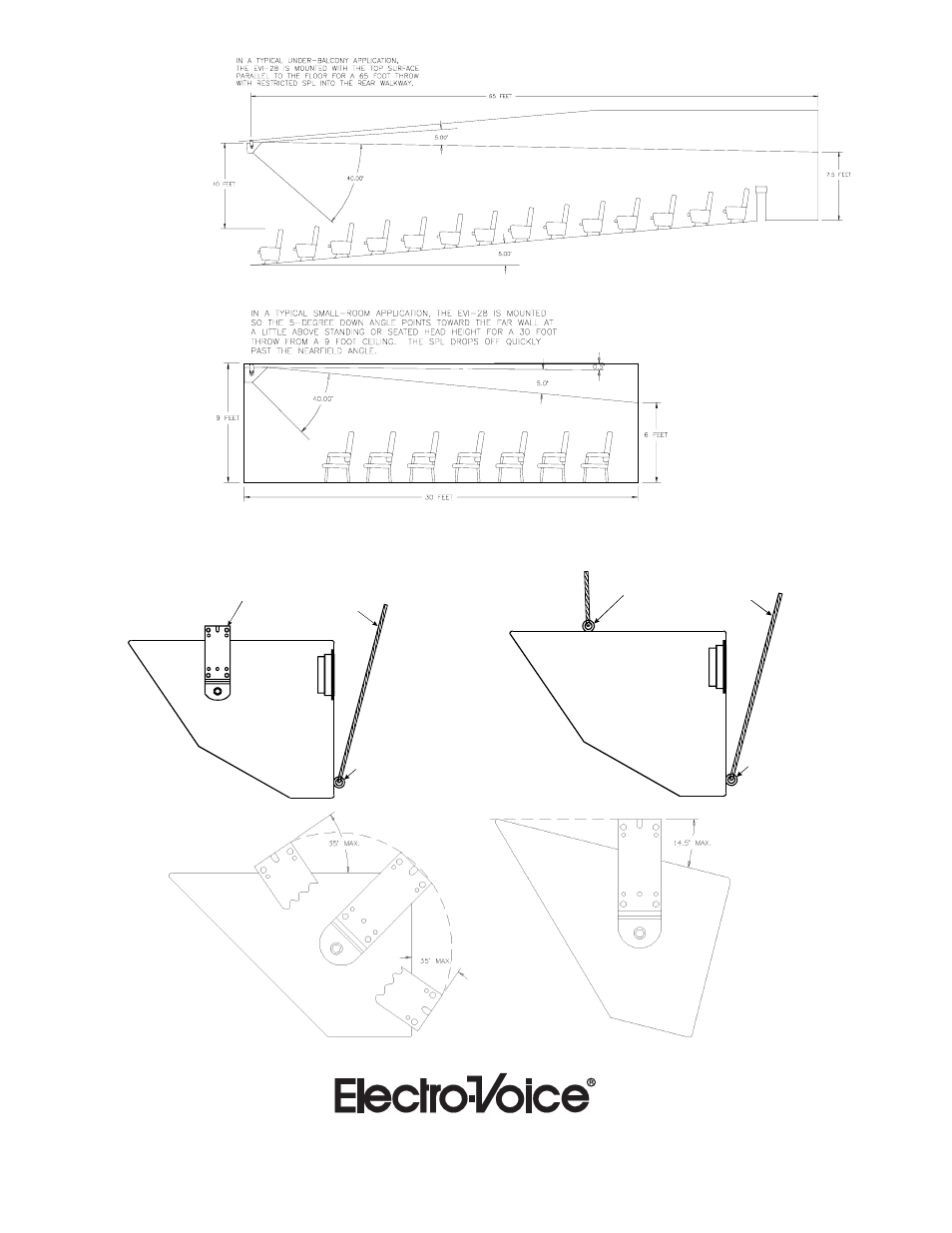

Figure 14 Figure 13
Figure 15
600 Cecil Street, Buchanan, MI 49107
800/234-6831, 616/695-6831, 616/695-1304 Fax
©Telex Communications, Inc. 1998 • Litho in U.S.A.
BOLTS AND CABLING/CHAINS MUST
BE RATED FOR OVERHEAD LIFTING
(NOT SUPPLIED)
BOLTS AND CABLING/CHAINS MUST
BE RATED FOR OVERHEAD LIFTING
(SEE TEXT)
3/8-16 FORGED SHOULDER
EYEBOLT (SUPPLIED) WITH
PULL-UP STRAP
PULL-UP STRAP
ATTACHED TO 3/8-16
FORGED SHOULDER
EYEBOLT (SEE TEXT)
Figure 11
Figure 12
