Installation Manual 9
Transmitter Orientation and Power Supply
P
o
wer Su
ppl
y
I/O
W
irin
g
– DP
an
d
DN
I/
O W
iri
n
g
– AN
Be
fo
re
Y
o
u
Begin
A user-supplied switch may be installed in the power supply line. For compliance with low-voltage
directive 2006/95/EC (European installations), a switch in close proximity to the transmitter is
required.

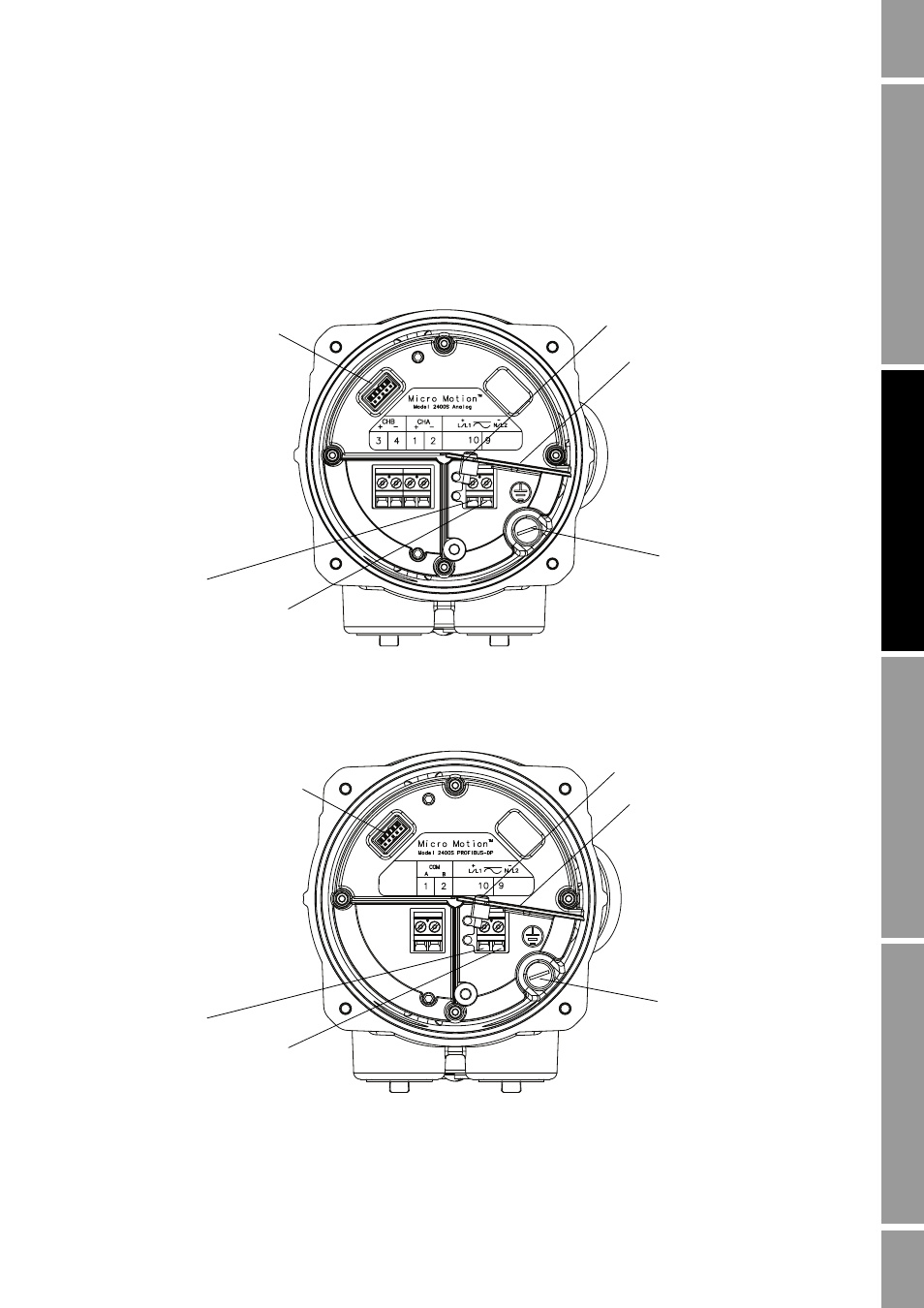

Figure 2-3 Wiring the transmitter power supply
+ (L)
– (N)
Transmitter internal
grounding screw
User interface connector
Warning flap screw
Warning flap
Model 2400S Analog transmitter
+ (L)
– (N)
Transmitter internal
grounding screw
User interface connector
Warning flap screw
Warning flap
Model 2400S PROFIBUS-DP transmitter
