Fitting the appliance and cabinet
The gas supply connection ramp is positioned in the front
upper side of the oven, behind the control panel.
To carry out the gas connection, partially insert the oven
in the recess (about 30 cm.) and operate on the
connection ramp from the top. The gas connection can
be carried out in both the following systems:

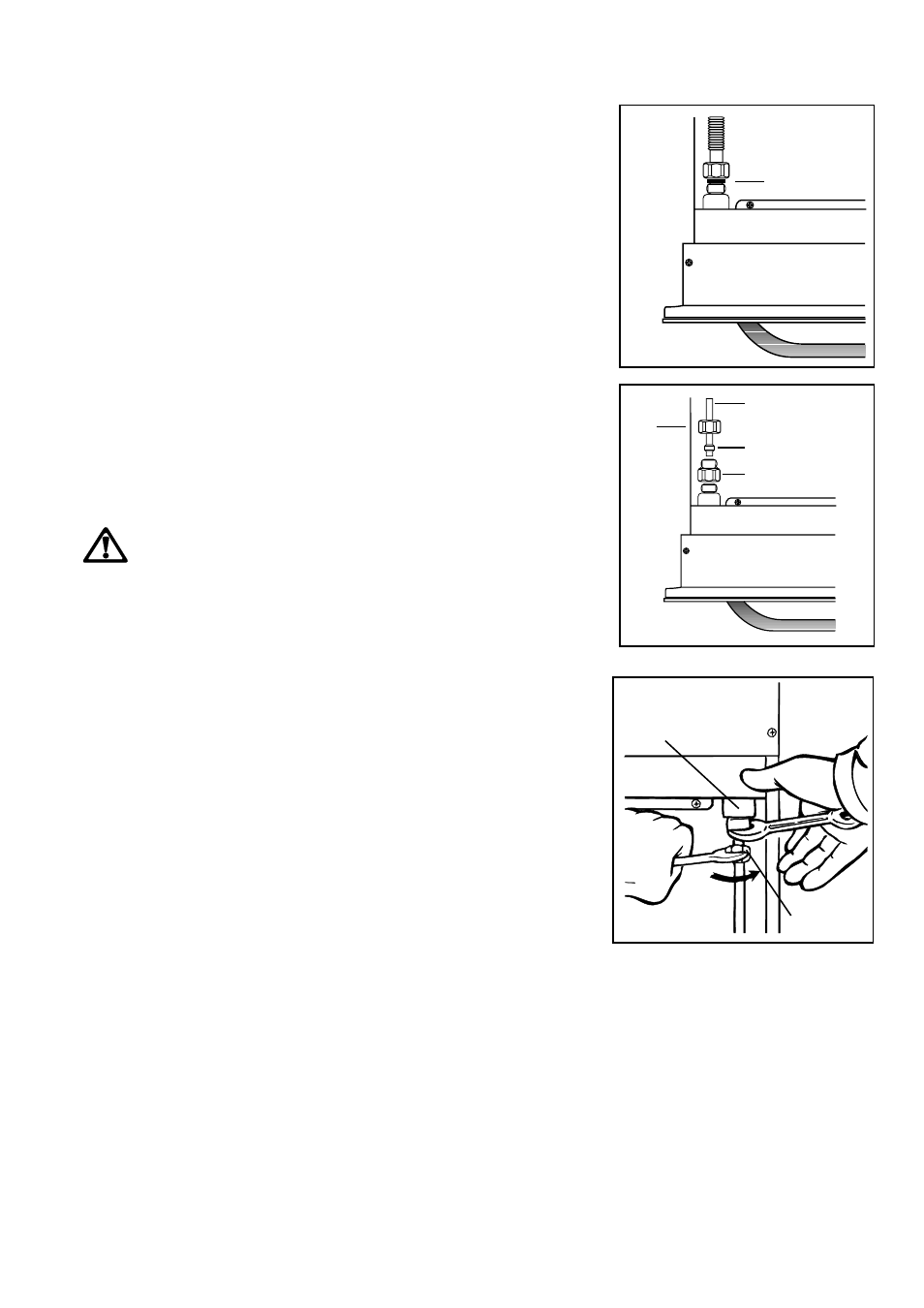

1) Fig. 6 — flexible metallic pipes (with maximum length
up to 2 metres only) — screw the feed pipe to the
1/2“ connection ramp, inserting the gasket provided
between the pipe and the ramp;
2) Fig. 7 — rigid metallic pipe (soft copper - minimum
diameter: 8 mm) — insert the copper pipe into the
connection ramp after fitting the correct nut and olive
onto the copper pipe using a male / female adapter
(not supplied).
To carry out the connection:
- tighten (fig.8) the nuts by means of a 22 mm. spanner,
in order to keep the ramp in position and not to cause
any distortion to the gas supply circuit.
- completely insert the oven in the recess and secure it
as indicated in the relevant paragraph.
Check the gas supply ramp and the gas
connection pipe are not squeezed while the
oven is positioned into the recess.
The use of rubber flexible hoses is not
permitted.
WARNINGS
• The use of a gas cooking appliance results in the
production of heat and moisture in the room in which
it is installed. Ensure that the kitchen is well
ventilated: keep natural ventilation holes open or
install a mechanical ventilation device (mechanical
extractor hood).
• Prolonged intensive use of the appliance may call for
additional ventilation, for example opening a window,
or more effective ventilation, for example increasing
the level of mechanical ventilation where present.
• Check the perfect sealing of the connection using
leak detection fluid.
Gas connection
FO 0671
flexible
metallic pipe
gasket
FO 0672
rigid
metallic pipe
olive
nut
nut
FO 0673
gas supply
ramp
Fig.6
Fig.7
Fig.8
male / female
adapter
