Securing the oven to the cabinet, Fig.2 fig.4 fig.3 fig.5 – Electrolux U20417 EPSOG User Manual

Page 12

Please ensure that when the oven is installed it is

easily accessible for the engineer in the event of

a breakdown.
BUILDING IN

The surround or cabinet into which the oven will be built

must comply with these specifications:

the dimensions must be as shown in the relevant

diagrams;

the materials must withstand a temperature increase

of at least 60°C above the ambient temperature;

proper arrangements must be made of a continuous

supply of air to the oven to prevent the oven overheating.

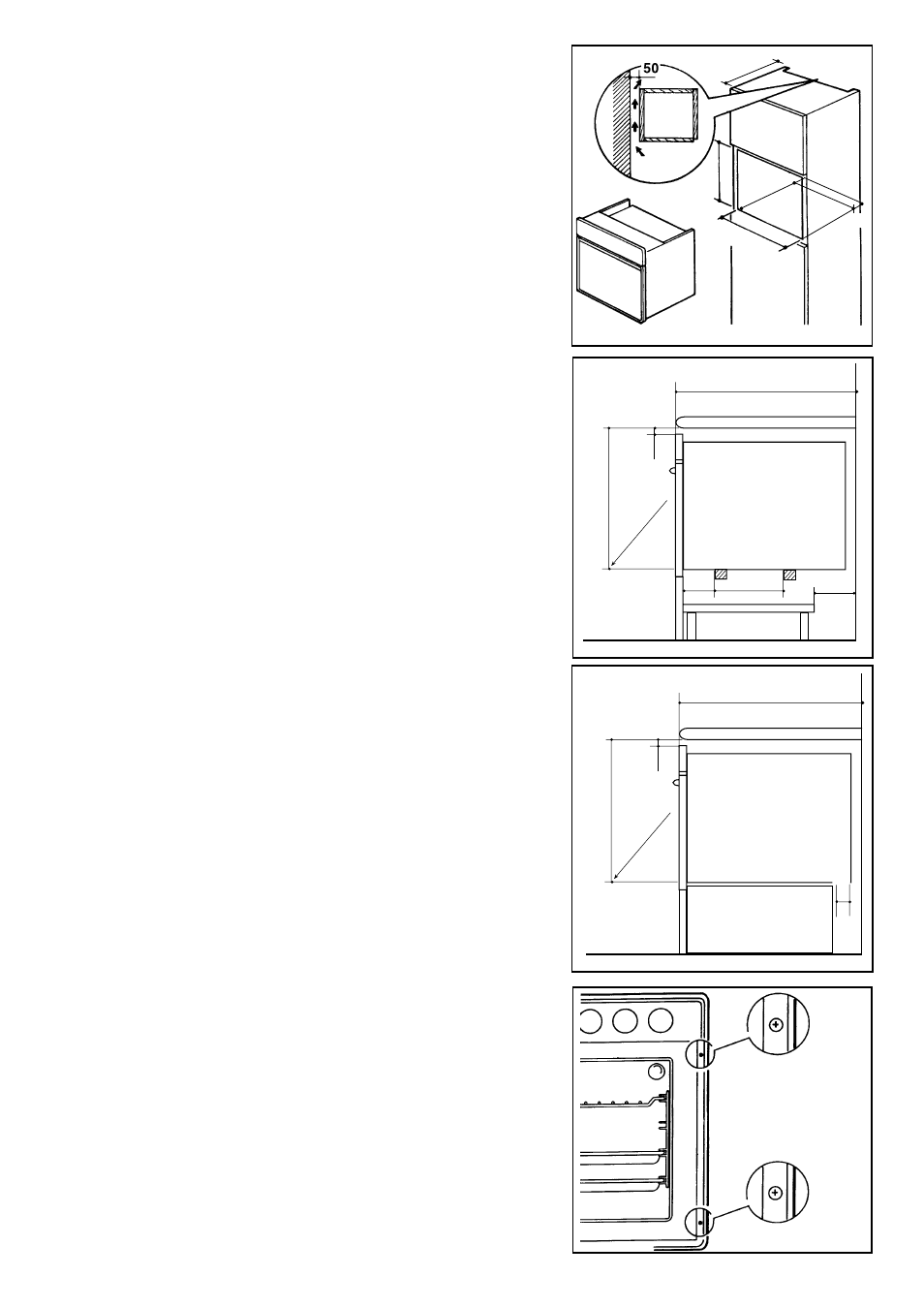

Dimensions of the oven and recess required are given

in the relevant diagrams (in millimetres).

FO 0290

580

560-570

550

440

min

110

min 550

110

591

min. 4

560÷570

min 550

140

240

591

min. 4

560÷570

110

FO 2129

FO 2128

FO 0039

1. Fit the oven into the cabinet recess,
2. Open the oven door
3. Secure the oven to the kitchen cabinet with four

wood screws, which fit the holes provided in the

oven frame.

Securing the oven to the cabinet

Fig.2

Fig.4

Fig.3

Fig.5
