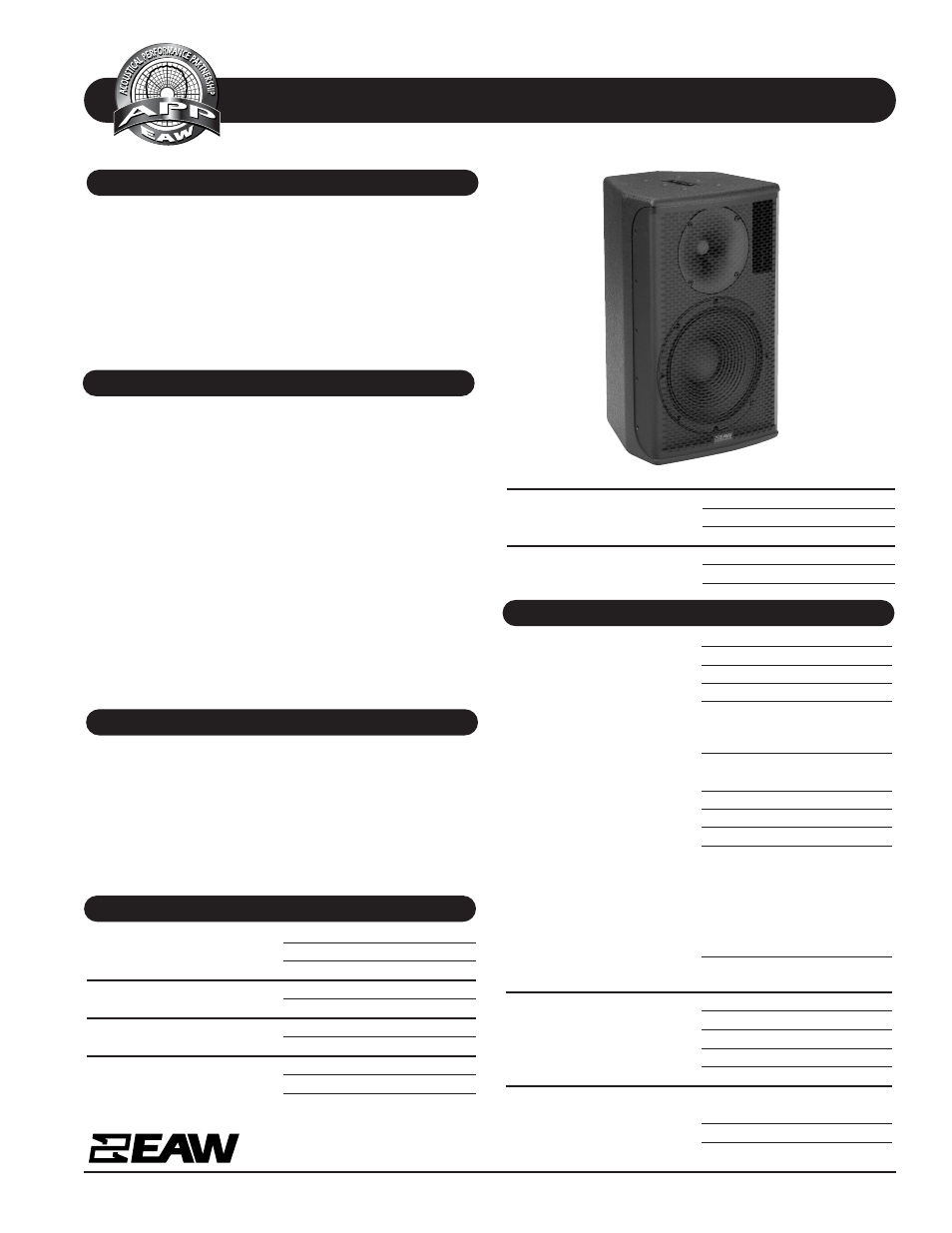

• Compact yet fully outfitted for demanding professional use
• HF compression driver and vented LF for fully professional

performance

• Wave Guide Plate™ optimizes HF pattern for near field

applications

• Asymmetric enclosure provides multiple mounting angles
• Pole mount cup & fly track plus U-bracket & Omnimount®

Series 100 or similar mounting points

• Passive crossover for easy operation and economical

powering

The JFX100 is a 2-way compact multi-purpose loudspeaker. Its
multi-functional design adds considerably to its value as a
full-range loudspeaker. Combining high output and natural
reproduction, it is specifically outfitted to serve in a variety
of both portable and permanent applications. The asymmet-
ric enclosure provides typical angles needed for ceiling and
wall mounting as well as for stage monitor operation. For per-
manent installation, enclosure hardware includes mounting
points for an optional U-bracket, an Omnimount® Series 100
or similar bracket, and fly track for suspension. Provisions for
portable use include a pole mount cup, fly track for rigging,
and a handle integral to the rear of the enclosure that facili-
tates handling and transport. The JFX100 is particularly suit-
able as a nearfield main loudspeaker or as a fill/delay element
in larger systems. Its wide angle projection makes audience
coverage easy. While the JFX100 is well suited as is for many
applications, the addition of a subwoofer expands its capabil-
ities for more demanding applications such as for smaller
houses of worship, theaters, and band PA. Six year warranty.

• Portable systems or permanent installations
• Wall and ceiling mountings
• Low profile appearance
• Main PA reinforcement in small- to

medium-sized spaces

• Downfill for flown clusters
• High SPL under balcony / stage lip / delay fill
• A/V and/or surround sound installations
• Voice & F/X reinforcement in themed attractions

SPECIFICATIONS JFX100

One Main Street, Whitinsville, MA 01588

508 234 6158

Toll Free 800 992 5013

FAX 508 234 8251

[email protected]

www.eaw.com

EAW products are continually improved. All specifications are therefore subject to change without notice.

JFX100/0004638/2 pp

September 2002

Printed in USA

Part Number

0001751

Configuration

2-way, full-range

Powering Passive LF/HF crossover

LF Subsystem

1x 10-in, vented

HF Subsystem 1x 1-in exit/1.75-in voice coil

neodymium compression driver
on Wave Guide Plate™

Recommended High-Pass

Frequency (24 dB/octave)

70 Hz

Enclosure Materials

Exterior grade Baltic birch plywood

Finish

Wear resistant textured black paint

Connectors

2x Neutrik NL4 Speakon

Hardware

Pole mount cup (bottom); 1x 3-
position fly track with integral
3/8”-16 threaded mounting/sus-
pension point (top); 4x 5/16”-
18 threaded mounting points for
Omnimount Series 100 (rear); 1x
pull back ring (rear)

Grille

Powder coated perforated steel,
foam backed

Dimensions

inches

millimeters

Height

19.75

502

Width(front) 11.68

297

Width (rear)

4.94

125

Depth

11.82

300

Weights

pounds

kilograms

Net Weight

39

17.7

Shipping Weight

43

19.5

Frequency Response (1 W @ 1 m)

±3 dB

90 Hz to 16 kHz

-10 dB

70 Hz

Axial Sensitivity (dB SPL, 1 W @ 1 m)

Full Range

96

Impedance (Ohms)

Full Range 8

Power Handling (Watts, continuous)

Full Range

300

Calculated Maximum Output (dB SPL @ 1 m)

Full Range Peak

127

Full Range Long Term

121

Nominal Coverage Angle / -6 dB points (degrees)

Conical

100

PHYSICAL

FEATURES

DESCRIPTION

APPLICATION

PERFORMANCE
