EverFocus EZ-VF325NH User Manual
Page 7
6

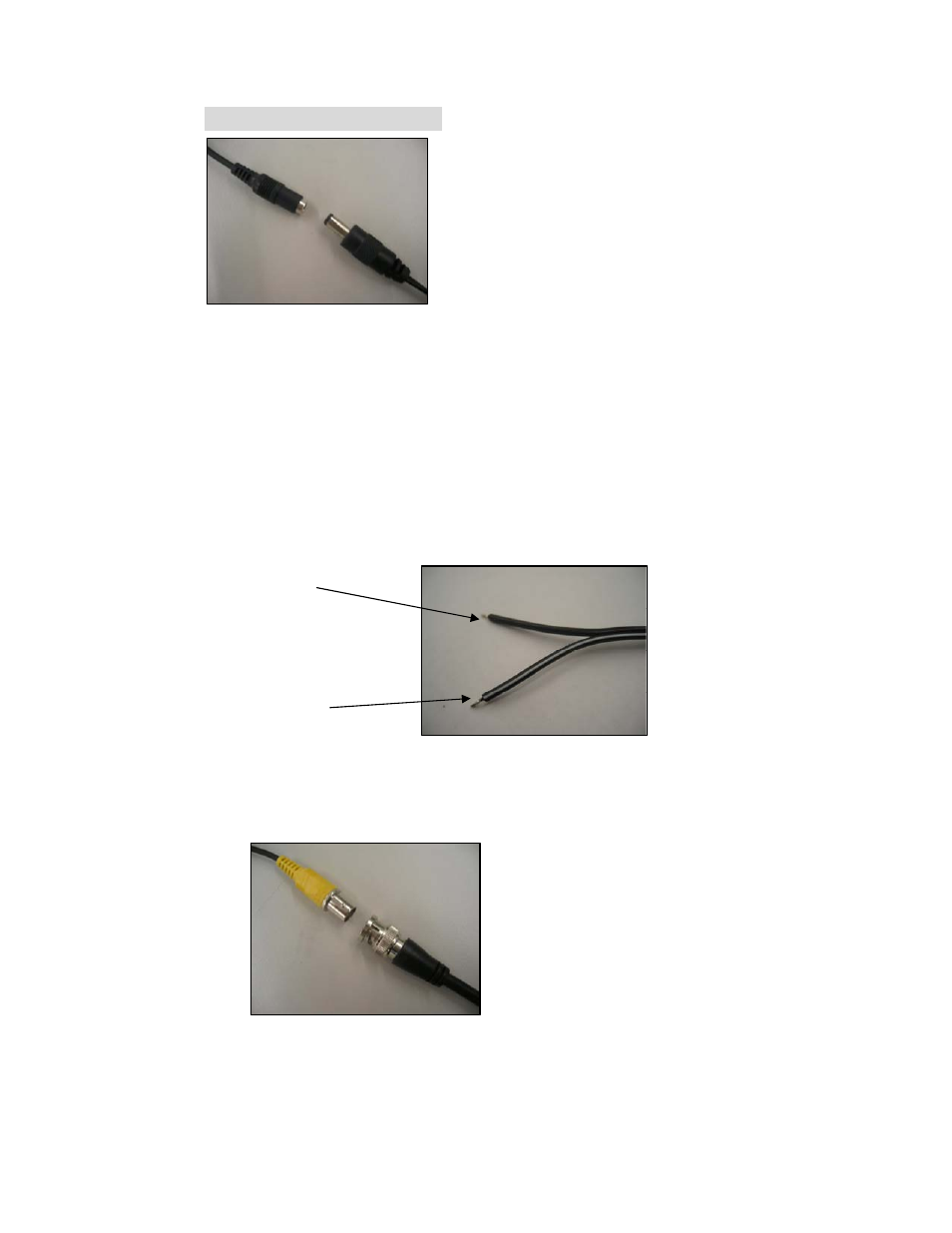

3. Connect Power and Video
a. Connect pigtail (male power adapter) to the camera female power connector.
See Figure 3-1.
b. Connect power to pigtail wires (pigtail- male power adapter is purchased
separately)
Pigtail Polarity: (Important since DC voltage is used)
Black Wire with white stripe is positive and solid black wire is negative. See
figure A4-2.
d. Connect video cable to a BNC female cable run. See figure A4-3.
Negative
Positive
(white stripe)
Figure 3-1
Figure 3-2
