10
EN
P
REPARATION

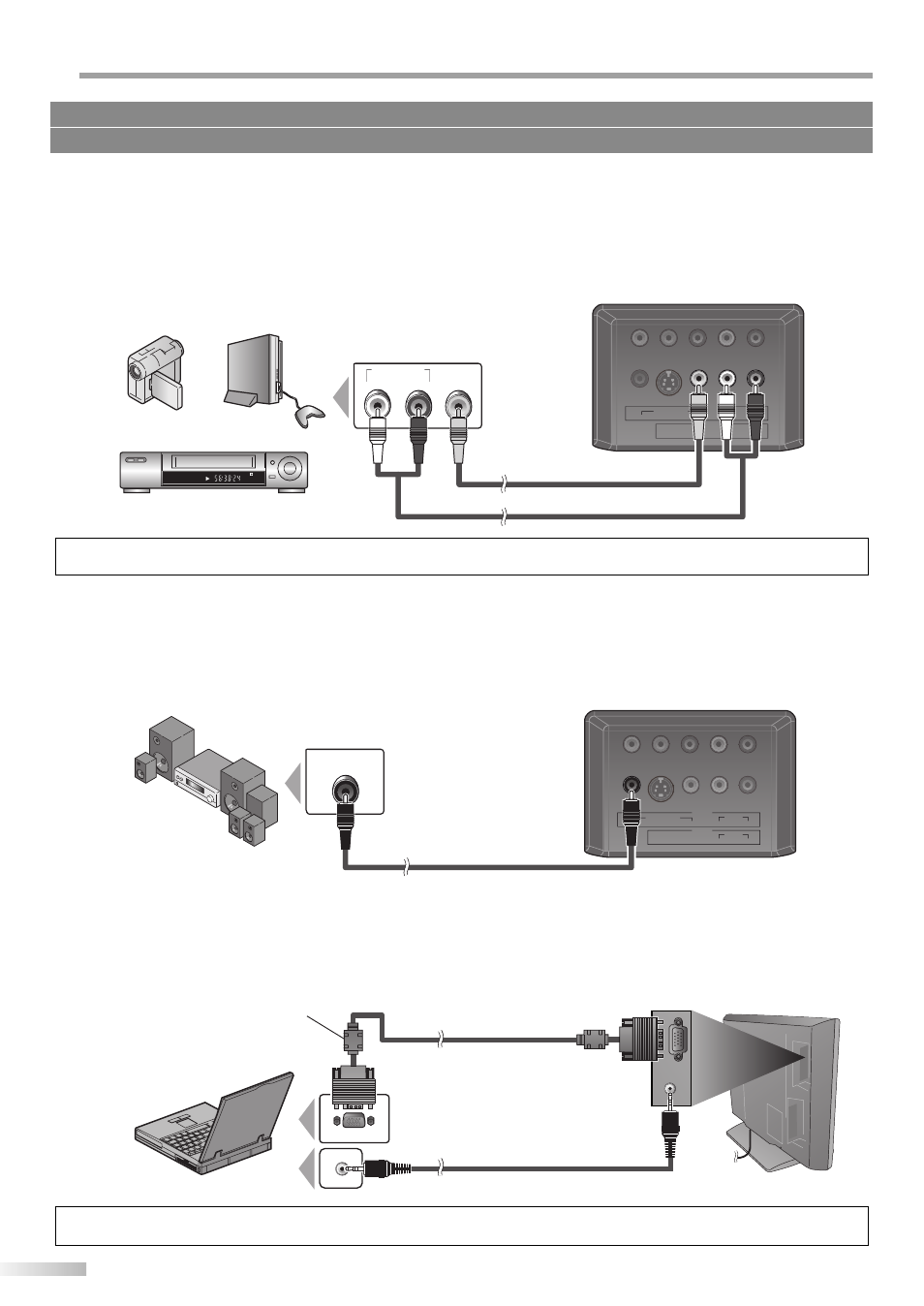

[Video Connection]
RCA video connection offers standard picture quality for video devices connected to the unit.
If you connect to the unit’s video input jack, connect an RCA audio cable to the audio L/R jacks of VIDEO1.
When the audio jack of the video device is monaural, connect an RCA audio cable to the audio L input jack.
e.g.)
STEREO STAND-BY
VIDEO 2
AUDIO COMPONENT
L R
AUDIO
L R VIDEO S-VIDEO COAXIAL
Pr Pb Y
VIDEO 1
AUDIO OUT
R L
VIDEO
OUT
rear of this unit
RCA audio cable
RCA video cable
camcorder video game
VCR
Note:
• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.
[Digital Audio Output Connection (for digital broadcasting only)]
If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital
broadcasting sound.
e.g.)
VIDEO 2
AUDIO COMPONENT
L R
AUDIO
L R VIDEO S-VIDEO COAXIAL
Pr Pb Y
VIDEO 1
DIGITAL AUDIO
COAXIAL IN
rear of this unit
digital audio coaxial cable
Dolby Digital
decoder
[PC Connection]
This unit is equipped with a PC input jack. If you connect this unit to your PC, you can use this unit as a computer
monitor.
e.g.)
mini-plug audio cable
VGA cable
VGA cable should be
with ferrite core.
personal computer
rear of this unit
Note:
• Please purchase the VGA cable that has a ferrite core.
Cables not included.
Please purchase the necessary cables at your local store.
