- 15 -

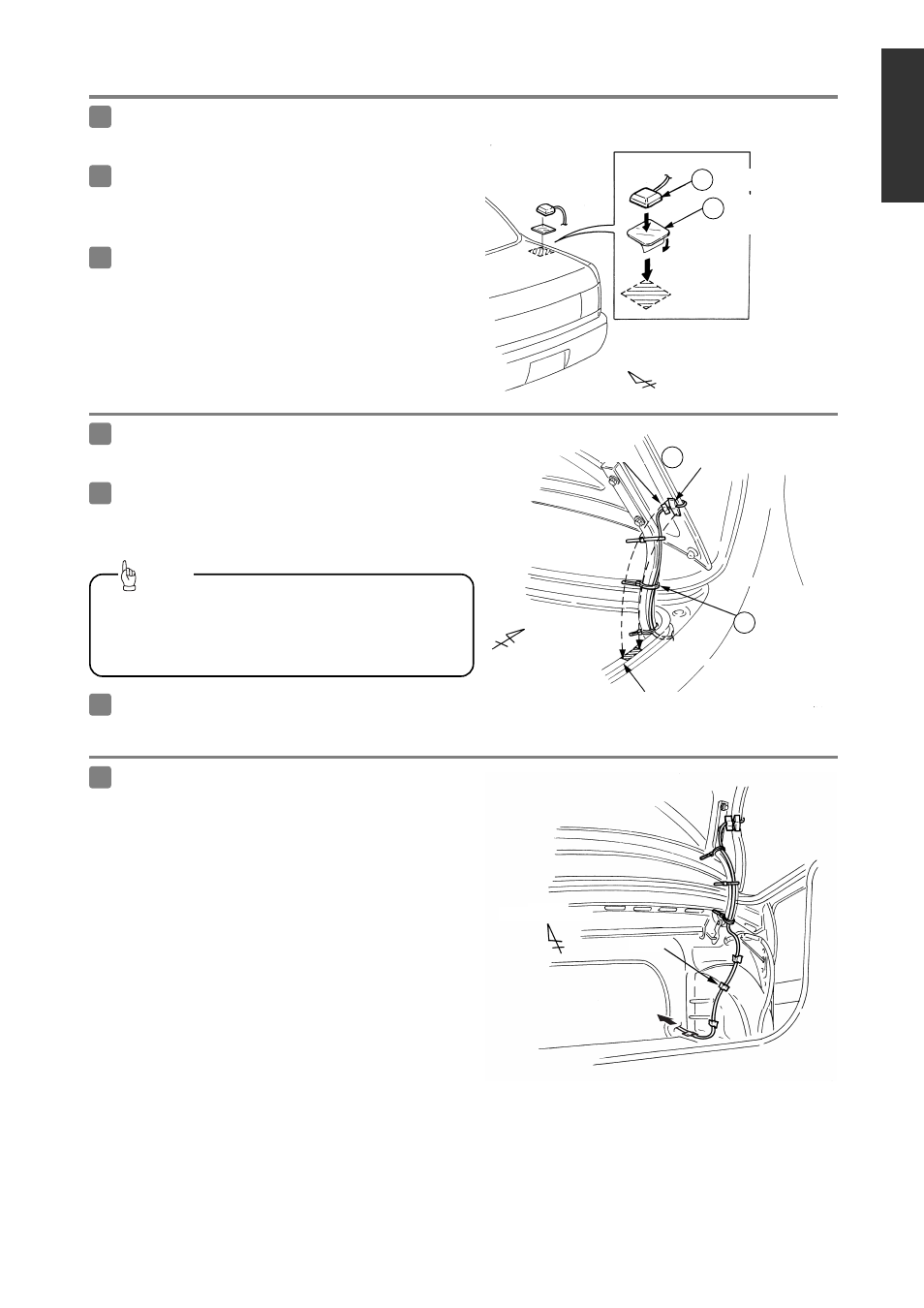

- Installation outside the vehicle (example) -
Choose an installation location where the GPS
antenna can be attached securely.
1
Remove the backing paper from the body
protective sheet and attach the sheet to the
vehicle.
2
Install the GPS antenna on top of the body
protective sheet.
3
Body protective
sheet (clear) 16
Route the GPS antenna wire to the main unit
while securing it with tape.
7
GPS antenna 13
Front of vehicle
Route the GPS antenna wire inside the vehicle's
trunk and secure it with tape.
4
Attach the waterproof cushion so that the GPS
antenna wire is flat against the weatherstrip when
the trunk lid is closed.
5
Route the GPS antenna wire while securing it
with wire ties.
6
To aid in sliding the waterproof cushion in finding
the desired mounting location, apply plain or
soapy water to the waterproof cushion.
Tip
Wire tie 17
Waterproof cushion
Front of vehicle
Weatherstrip
14
Front of vehicle
Route to
main unit
