8 | Wolf Customer Care 800.222.7820

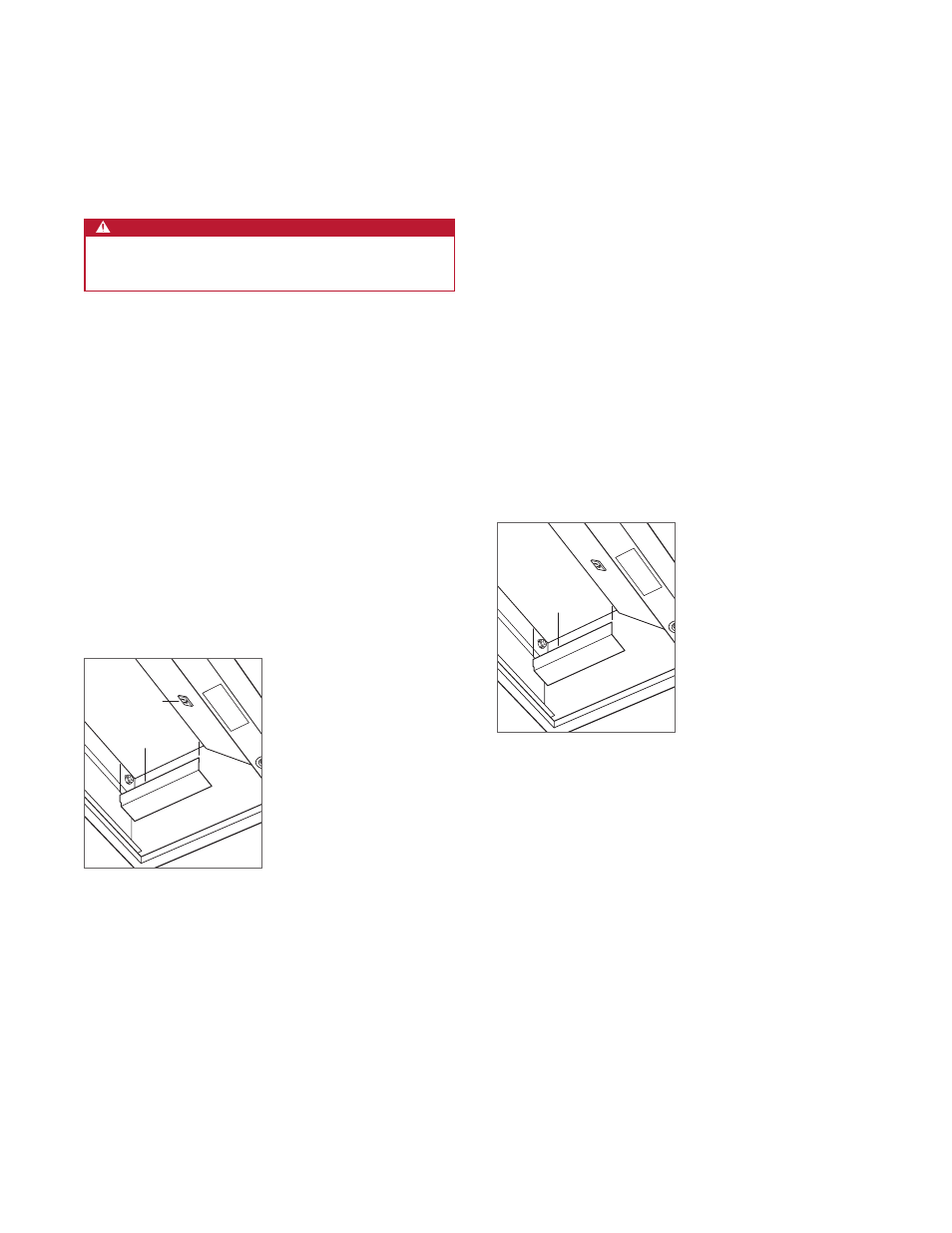

INSTALLATION
ELECTRICAL
COVER
RECEPTACLE
Electrical connections
ELECTRICAL
COVER
Electrical connections
Electrical Connections
WARNING
Before making electrical connections, verify the power
is turned off at the service panel.
IMPORTANT NOTE: Refer to installation instructions pro-
vided with the blower assembly.
INTERNAL BLOWER
1 Connect black to black and white to white with the
provided connectors, and connect the green/bare wire
to the ground screw.
2 Verify all wires are secure and not pinched, and reinstall
the cover.
3 Plug the blower power cord into the receptacle inside
the hood. Refer to the illustration below.
4 Turn on the power to the hood and verify light and
blower operation.
IN-LINE / REMOTE BLOWER
1 Remove the connector from the end of the orange wire.
2 Connect the home supply. Connect black to black and
connect the green/bare wire to the ground screw.
3 Connect the blower supply. Connect black to orange,
all three white wires with the provided connectors, and
connect the green/bare wire to the ground screw.
4 Verify all wires are secure and not pinched, and reinstall
the cover.
5 Turn on the power to the hood and verify light and
blower operation.
