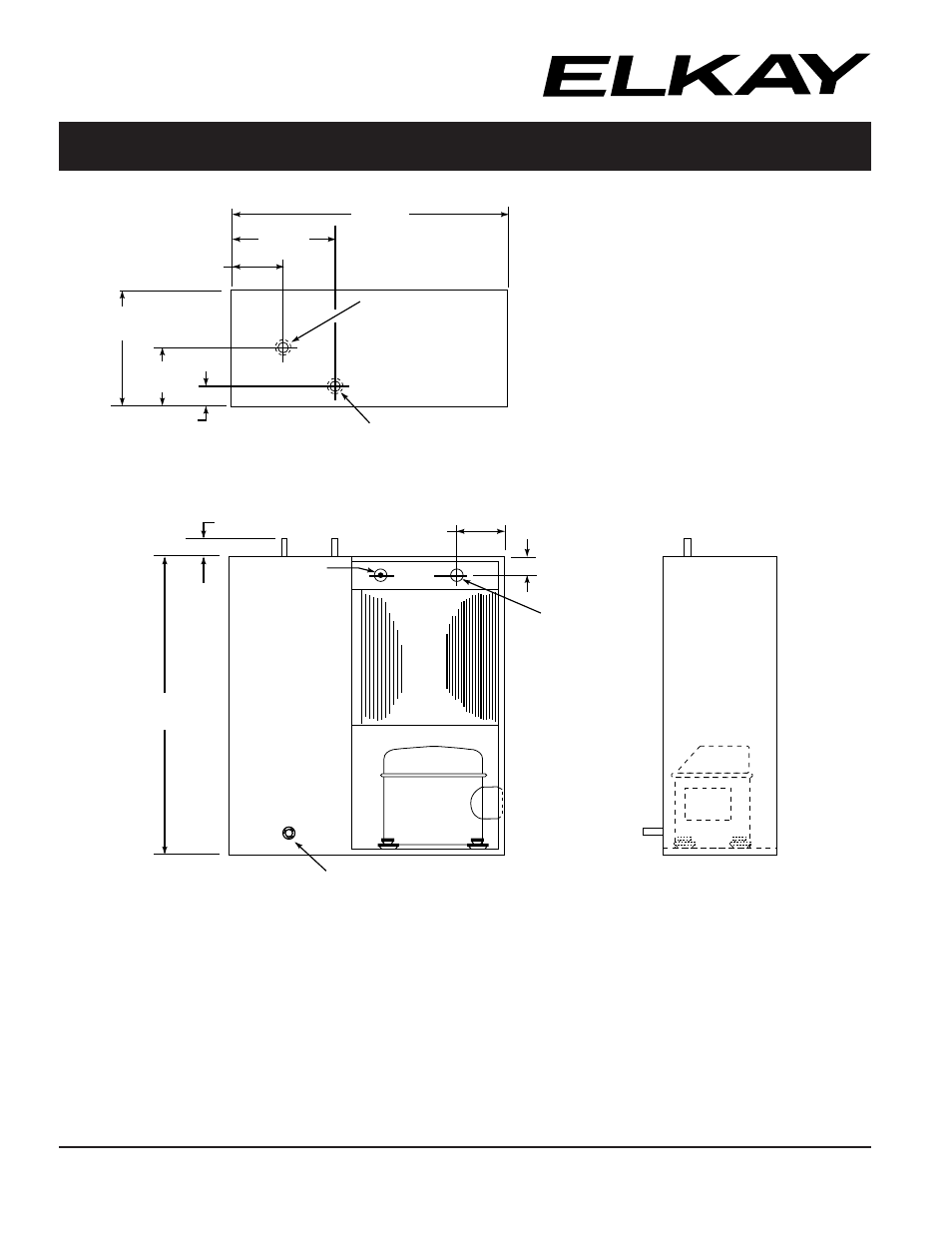

ROUGH-IN DIMENSIONS
Elkay Manufacturing Company 2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2001 Elkay Mfg. Co.
13-7F (Rev. 4/01)
No Lead Remote Chiller
Air Cooled
Model ER19
23"
(584 mm)
8-1/8"
(205mm)
4-1/4"
(114mm)
10-1/4"
(260 mm)
5-1/8"
(130mm)
1-9/16"
(40 mm)
3/8" O.D. TUBE
COLD WATER OUT
3/8" O.D. TUBE
WATER INLET
ELECTRICAL
ADJ. COLD
CONTROL
3/8" O.D. TUBE
TANK DRAIN
1-1/4"
(32 mm)
25-3/4"
(654 mm)
FRONT VIEW
TOP VIEW
SIDE VIEW
4-7/8"
(123 mm)
1-3/4" (44 mm)
Drain Plug: This chiller is provided with a plastic drain plug which incorporates
an o-ring seal. This fitting is designed for potable water applications and should
be replaced with a suitable fitting if chiller is used with more aggressive liquids.
NOTE: It is important to insure proper ventilation. Allow a minimum clearance of
6 inches (152mm) in front and 3 inches (76mm) in the rear of the unit. If
unit is to be installed in an enclosure, allow the following clearances
around unit: 1 inch (25mm) each side, 3 inches (76mm) in the rear,
3 inches (76mm) above. Wall grill, EG1 or EG2 may be used with this
unit.
