97963C (Rev. C - 12/03)

HRC2-5-1C, HRC2-10-1C

NOTE: It is important to insure proper ventilation. Allow a

minimum clearance of 6 inches (152 mm) in front and 3

inches (76mm) in the rear of the unit. If unit is to be in-

stalled in an enclosure, allow the following clearances

around unit 1 inch (25mm) each side, 3 inches (76mm) in

the rear, 3 inches (76mm) inches above wall.

This chiller has been designed for use with potable water

and includes an o-ring seal on the drain plug. This fitting

should be replaced if the unit is to be used with more

aggressive fluids.

Refrigeration Packages

Installation Instructions

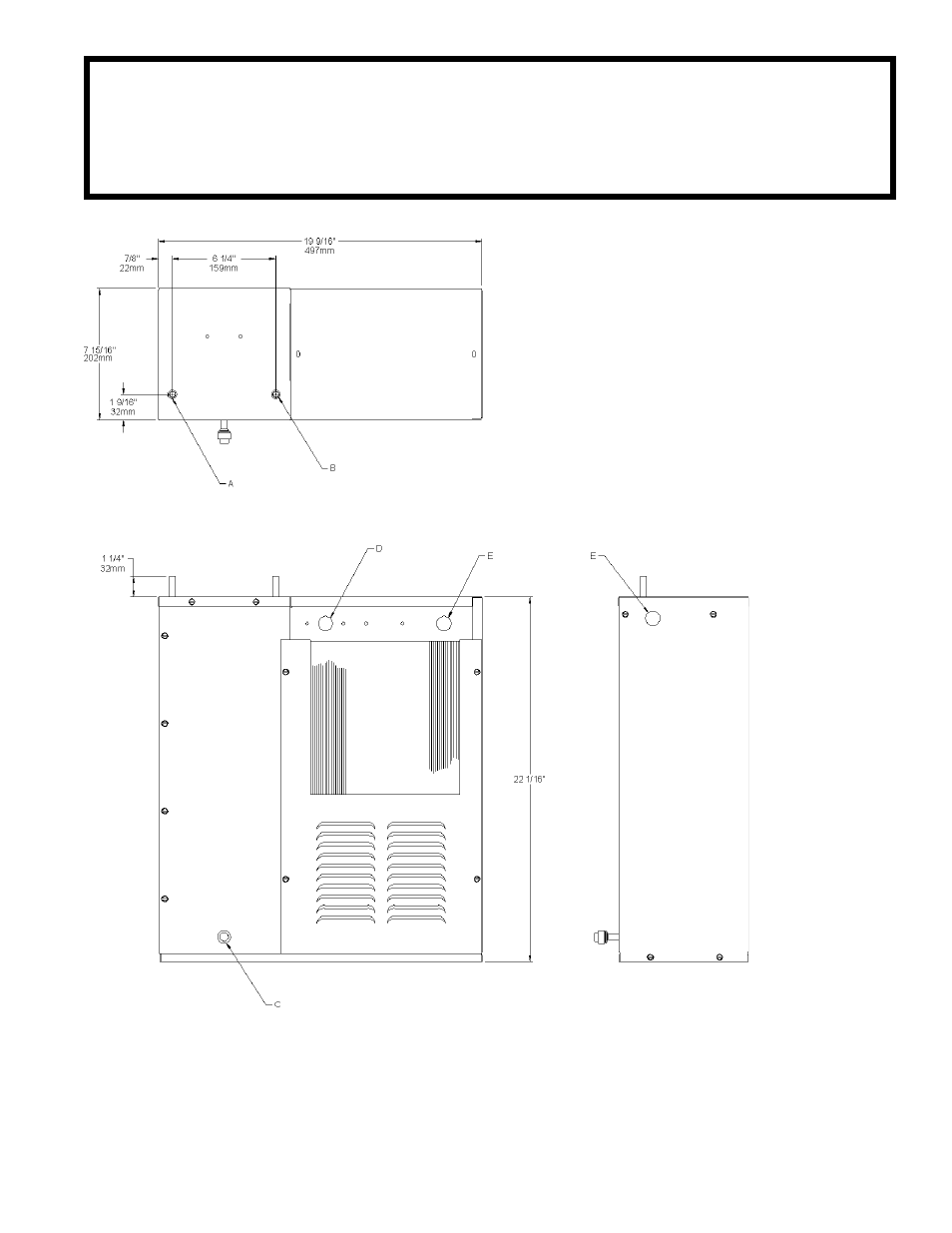

A = 3/8" O.D. TUBE WATER OUT

B = 3/8" O.D. TUBE WATER INLET

C = 3/8" O.D. TUBE TANK DRAIN

D = TEMPERATURE ADJUSTMENT

E = ELECTRICAL

LEGEND:
