2) Print testing lines to ensure the printing head is good condition.
3) Print pictures to see whether the printing image is ok.

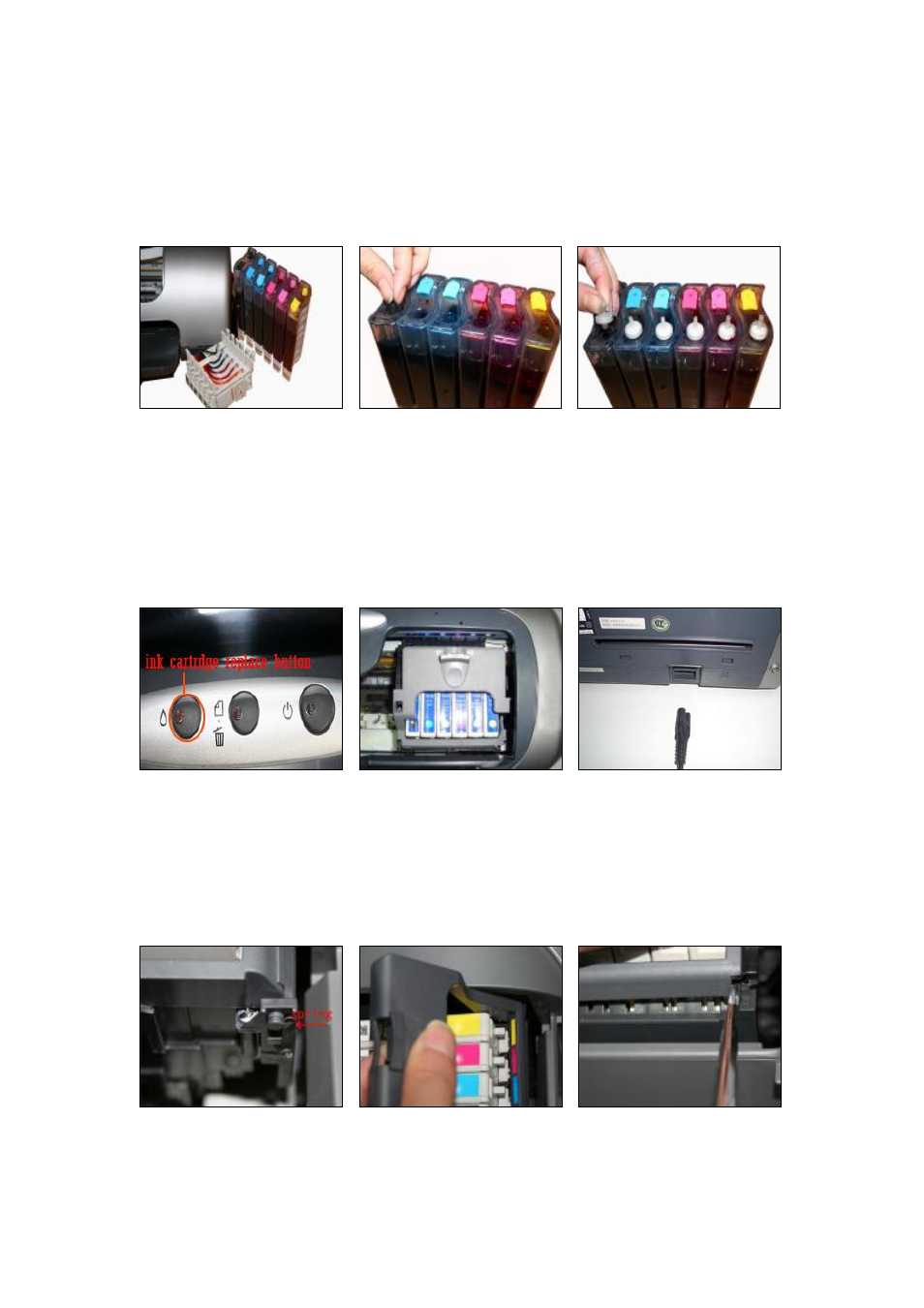

3、Installation Procedures:
1) First step
Put the CISS on the left side Pull out the small rubber plug Place 4pcs of air filters into
of the printer. In the meantime from the air hole as above air holes, the thicker side
place all the tubes at correct picture shown. is down into tank.
position.
2）Second step: Remove cartridge
Press the ink cartridge replace Move the cartridge-car to the cartridge Unplug the power
button replace position
3) Third step: Set up the Continuous Ink Supply System
Replace the spring of the open the cover of cartridge to some Insert screwdriver into the place
cartridge-car degree angle that joint cover and cartridge-car
