Eicon Networks C2x Family User Manual
Page 9
Making an ISDN Connection
9
Eiconcard C21 U-interface:
If your Eiconcard C21 has a U-interface, the NT1 is integrated into
the adapter, and you do not need a separate NT1.

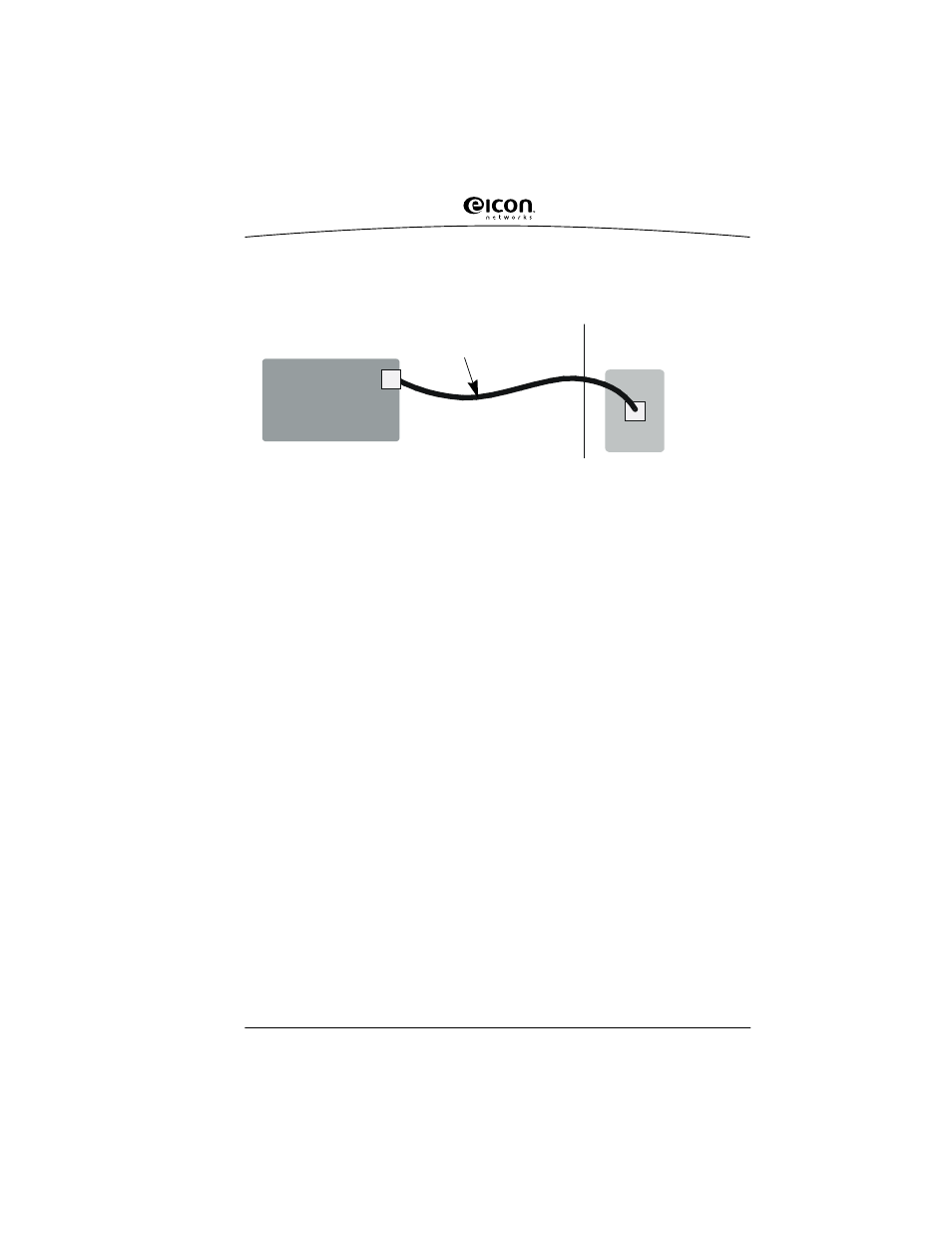

Figure 4. Connecting the ISDN cable.
1 Take the cable included with the Eiconcard C21.
2 Plug the RJ-45 end into the Eiconcard C21.
3 Plug the RJ-11 end into the ISDN wall jack.
Note
In North America, many ISDN wall jacks (with a U-interface)
are RJ-11. However, if your ISDN wall jack is RJ-45, you can still
plug the RJ-11 end of the cable into your RJ-45 ISDN wall jack
(there will be some space on both sides of the plug).
1.
Eiconcard C21
ISDN wall jack
2.
3.
