Permanent Connection
In the case of a permanent connection, it is necessary that you install a double pole switch
between the hob and the electricity supply (mains), with a minimum gap of 3 mm between
the switch contacts and of a type suitable for the required load in compliance with the
current electric regulations.
The switch must not break the yellow and green earth cable at any point.
Ensure that the hob supply cord does not come into contact with surfaces with
temperatures higher than 50 deg. C.

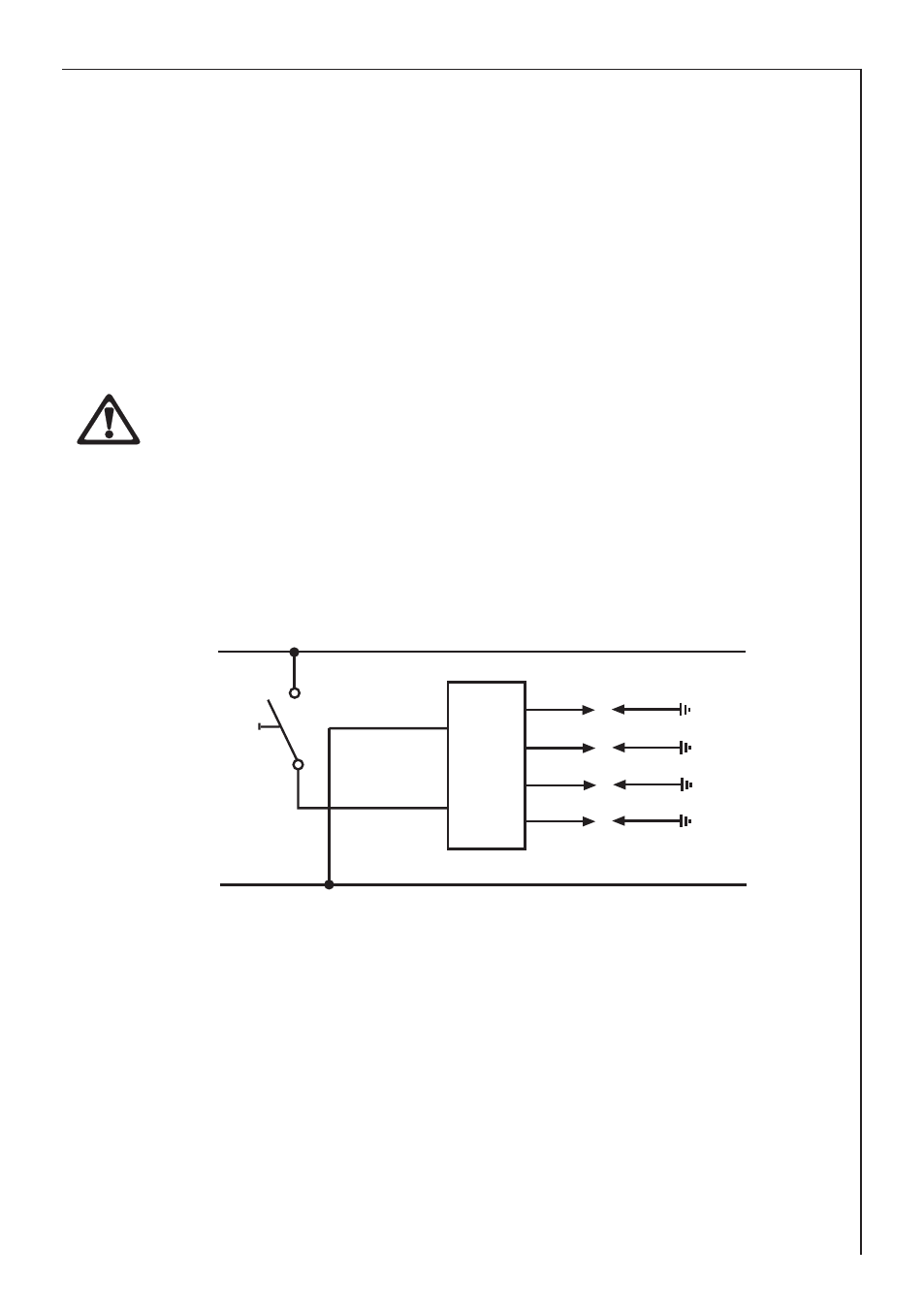

Wiring diagram
A. IGNITOR SWITCH
B. IGNITOR UNIT
B
L
N
0
1
2
3
4
220/240
A
