ON/OFF SWITCH
FLEX
OUTLET
ON/OFF SWITCH
FLEX
OUTLET
FO 0763 FO 0764
1 2

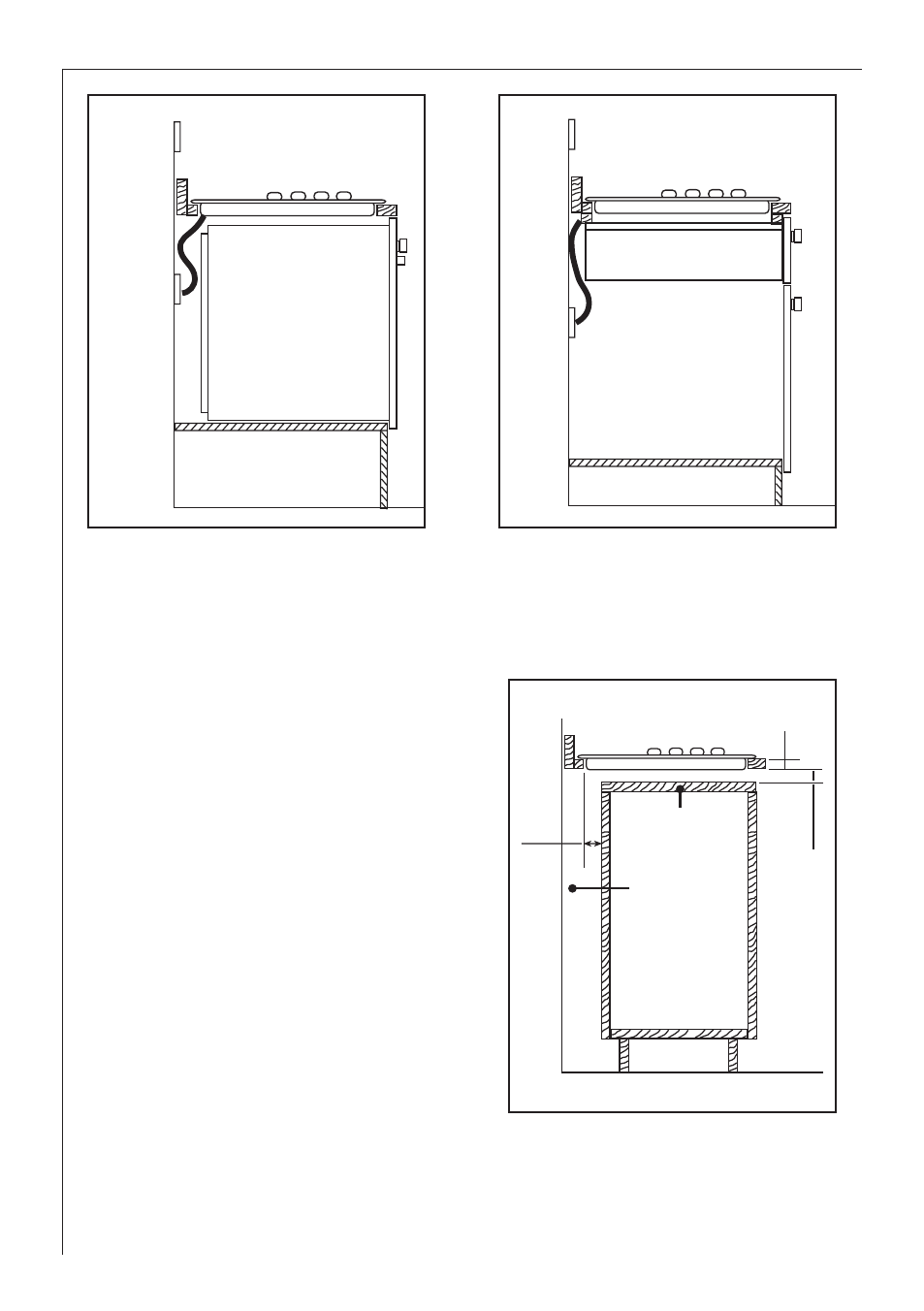

Building over a kitchen unit with door
Proper arrangements must be taken in
designing the furniture unit, in order to
avoid any contact with the bottom of the
hob which can be heated when it is
operated. The recommended solution is
shown in diagram 3.
The panel fitted under the hob ("a")
should be easily removable to allow easy
access if technical assistance is needed.
The space behind the kitchen unit ("b")
can be used for connections.
30
20 min 60
a
b
FO1013
3
Dimensions are given in mm.
