Echo SRM-260U - Manual (Page 15)

G
RASS
T
RIMMER
/B
RUSH
C
UTTER
O
PERATOR
'
S
M
ANUAL
15
BLADE SELECTION
WARNING DANGER
The type of Blade used MUST be matched to the type and size of material cut. An improper or dull blade can cause
serious personal injury. Blades MUST be sharp. Dull blades increase the chance of kick-out and injury to yourself
and bystanders.
C
A
B
D
E

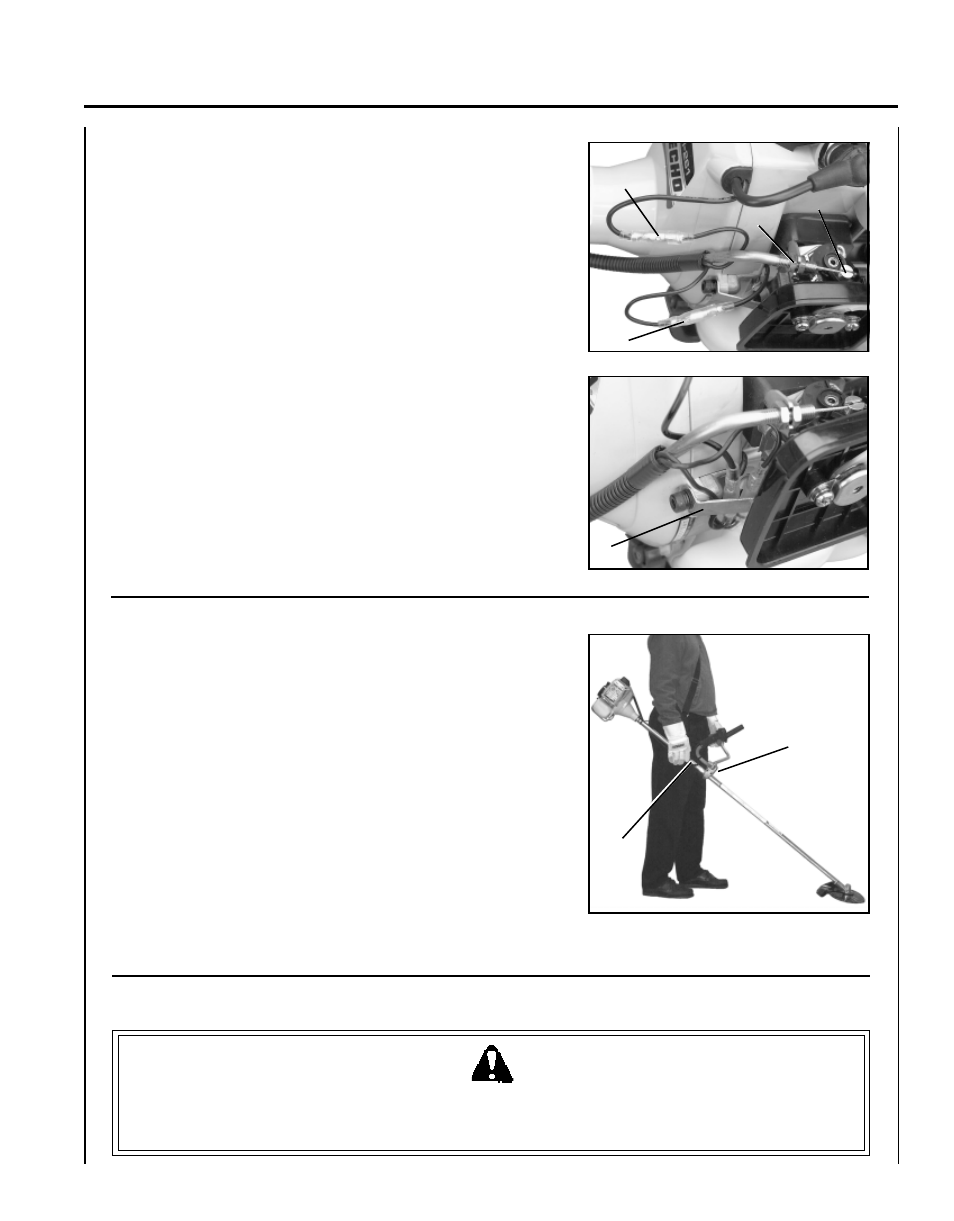

THROTTLE LINKAGE AND IGNITION LEADS
1. Close choke and remove air filter cover.
2. Place inner cable in large hole of carburetor swivel (A).
3. Loosen nuts (B) and place threaded end of throttle linkage in
bracket slot. Finger tighten nuts (B).
4. Check throttle for freedom of movement and that wide open throttle
/ low idle extremes are adjusted properly. If adjustment cannot be
achieved with adjusting nuts (B), consult with your Echo Dealer for
correct adjustment procedure. Tighten nuts (B).
5. Connect ignition stop leads (C) and (D).
6. Bundle and secure ignition leads against engine housing with clip
(E).
7. Install air filter and cover.
BALANCE AND ADJUST UNIT
1. Loosen harness clamp screw.
2. Put on harness and attach unit to harness.
3. Slide harness clamp up (F) or down until unit balances with head
approximately 50-75 mm (2 -3 in.) from the ground.
4. Tighten harness clamp screw.
5. Loosen upper U-Handle clamp screws (G), and position U-Handle
for comfortable operation.
6. Tighten U-Handle clamp screws and 8 mm clamp bolt securely.
F
G
