17

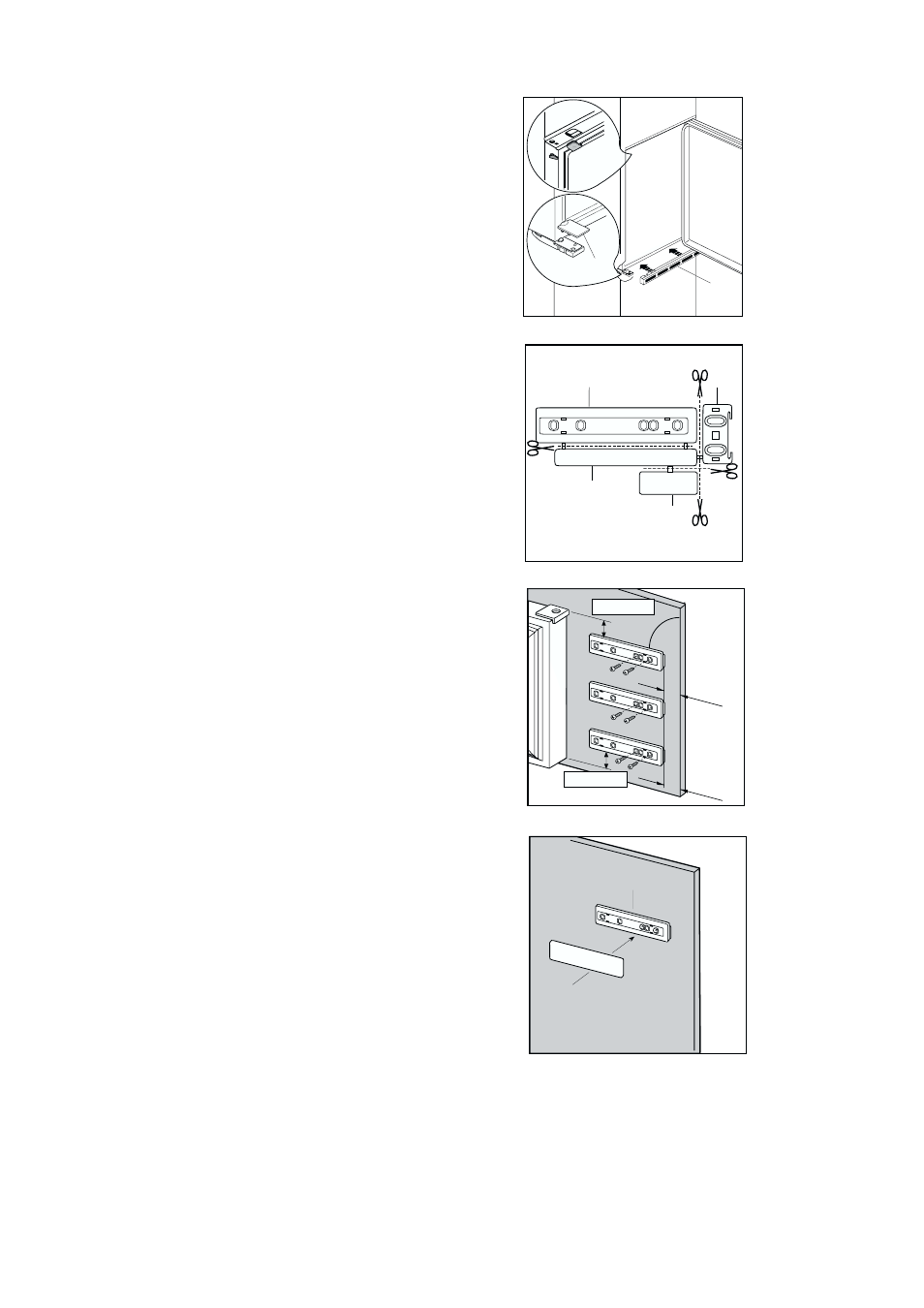

Place guide (Ha) on the inside part of the furniture
door, as shown in the figure and mark the position of
external holes. After having drilled holes, fix the
guide with the screws supplied.
21 mm
ca. 50 mm
90°
ca. 50 mm
21 mm
Fix cover (Hc) on guide (Ha) until it clips into place
PR33
Hc
Ha
PR266
Ha Hb
Hc
Hd
Separate parts Ha, Hb, Hc, Hd as shown in the
figure.
Apply covers (C-D) on joint cover lugs and into hinge
holes.
Snap vent grille (B) and hinge cover (E) into
position.
B
E
C
D
