16

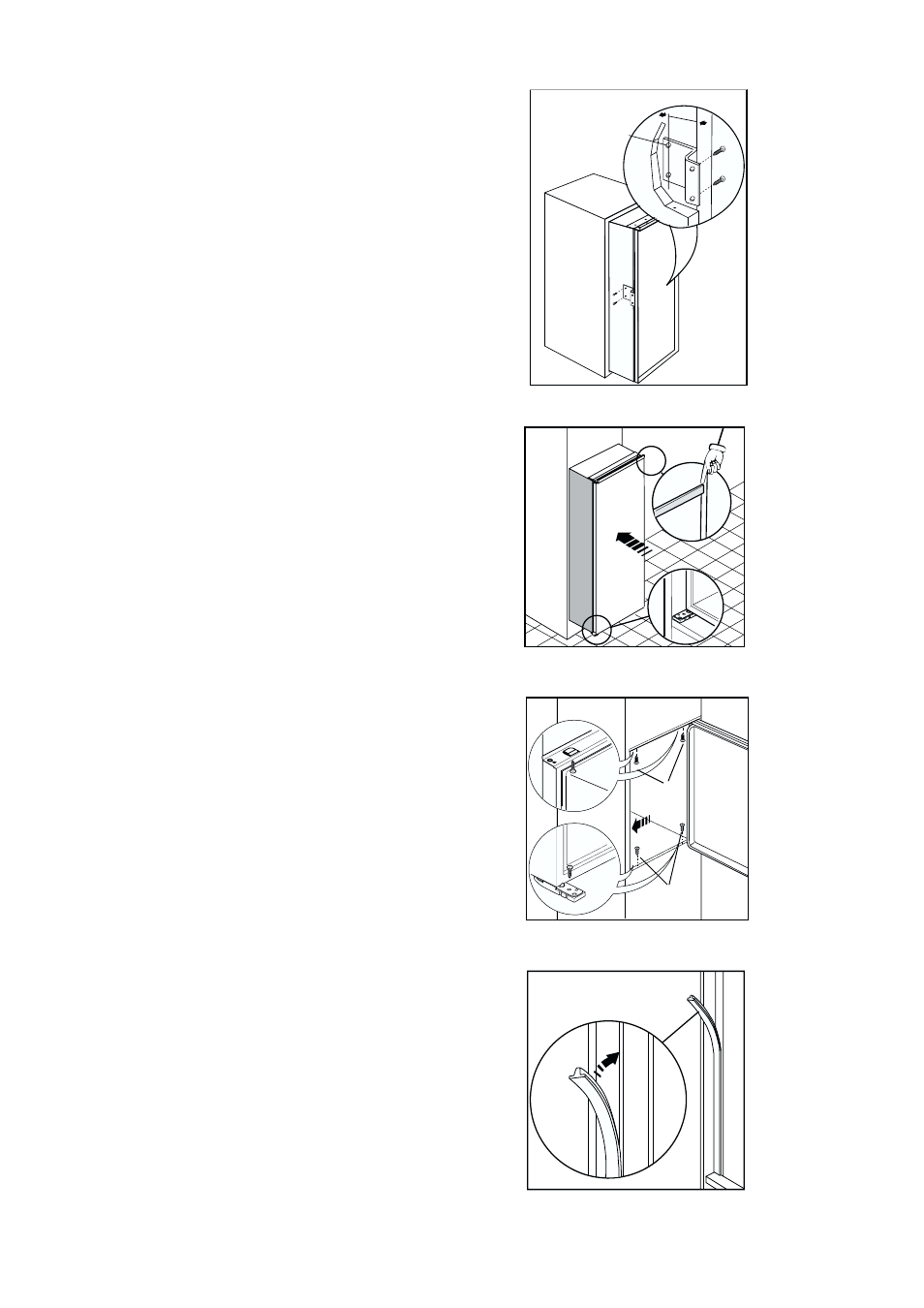

Fit the appliance in the niche by making sure that it
stands against the interior surface of the unit on the
side where the door hinges of the appliances are
fitted. Insert the appliance until the upper strip butts
up against the unit (1) and make sure that the lower
hinge is in line with the surface of the unit (2).
Fasten the appliance with 4 screws provided in the
kit included with the appliance.
(I = short) (P = long)
D724
Apply the sealing strip pushing it between the
refrigerator and the adjacent cabinet.
D022
1
2
I
P
D740
Ø 2,5
13mm
Drill the unit using a Ø 2.5 mm drill (10 mm max.
penetration);
Fix the square fitting to the appliance.
