3. Tighten the 4 mounting screws to secure the camera body to the mounting surface.



3. If you need to wire cable through side conduit hole, use a coin to remove the conduit plug

;

save the plug as it will be used to close the rear conduit hole.

4. Disconnect the power and video wire from the camera board end of the wire. Gently pull the

wire out from under the plate until it is free. Using wrench or pliers, remove the weather tight

bushing from the rear conduit hole. Using the plug removed in step 3 above, close the rear conduit

hole (additional caulk or other sealant recommended).

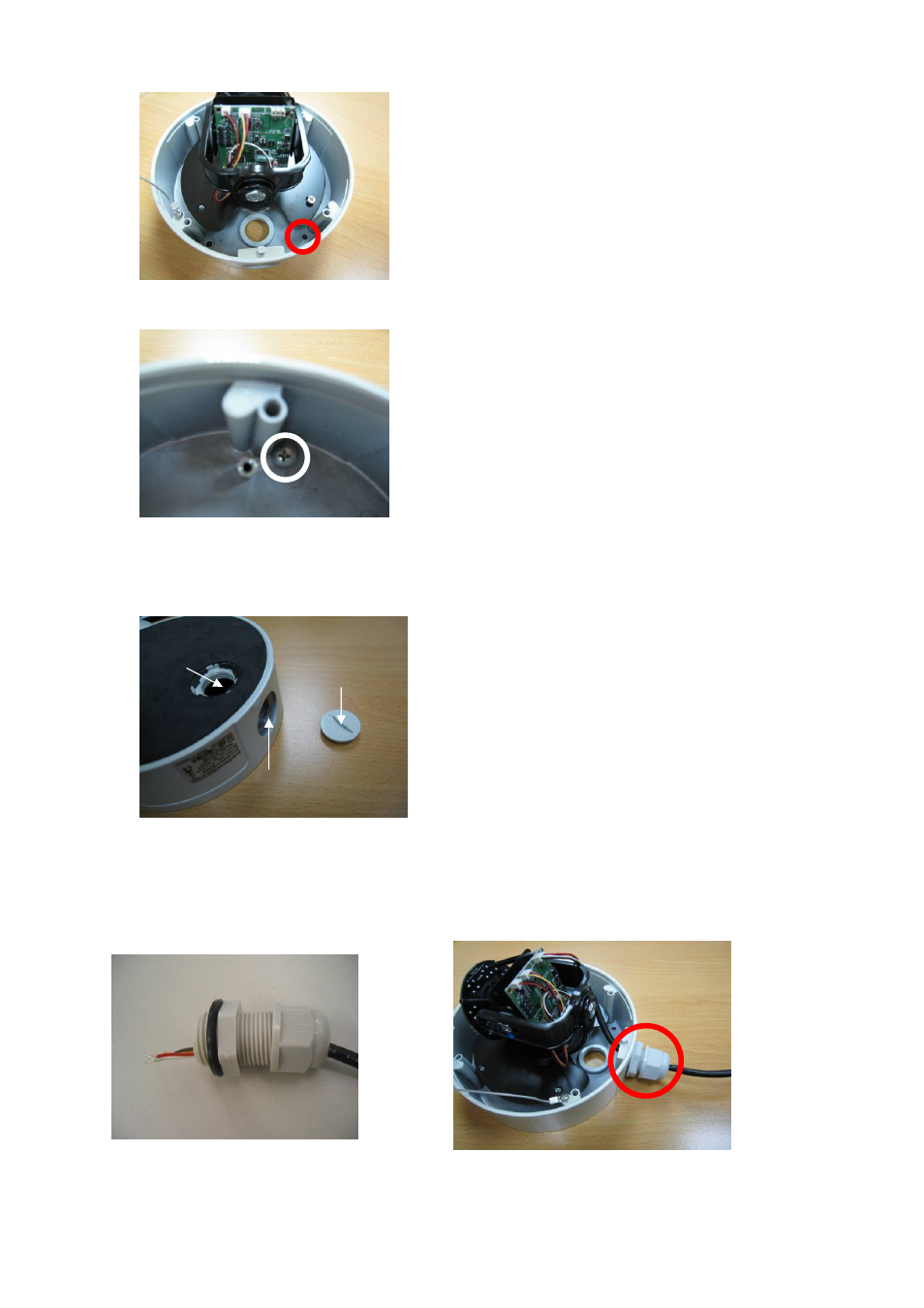

5. Pass the camera end of the power/video cable through side conduit hole. Using wrench or

pliers, carefully tighten the weather tight bushing into the side conduit hole.

Back conduit
hole

Conduit plug

Side conduit hole
