EverFocus EHD360 User Manual
Page 4
3
DIMENSIONS
INSTALLATION INSTRUCTIONS
Drill the Holes
1. Locate the desired mounting location; position housing with camera pointed generally in the
desired direction and mark location.
2. Use template to fix hole locations. Drill 4 holes for mounting screws and insert plastic anchors
into holes after drilling.
Mounting Steps
1. Use the security wrench provided to loosen the 4 screws holding the dome cover.
2. Remove the dome cover. Attach the camera body to the mounting surface with the mounting
screws provided
A. Lens
B. IR-LED
C. Side conduit entry
D. Back conduit entry

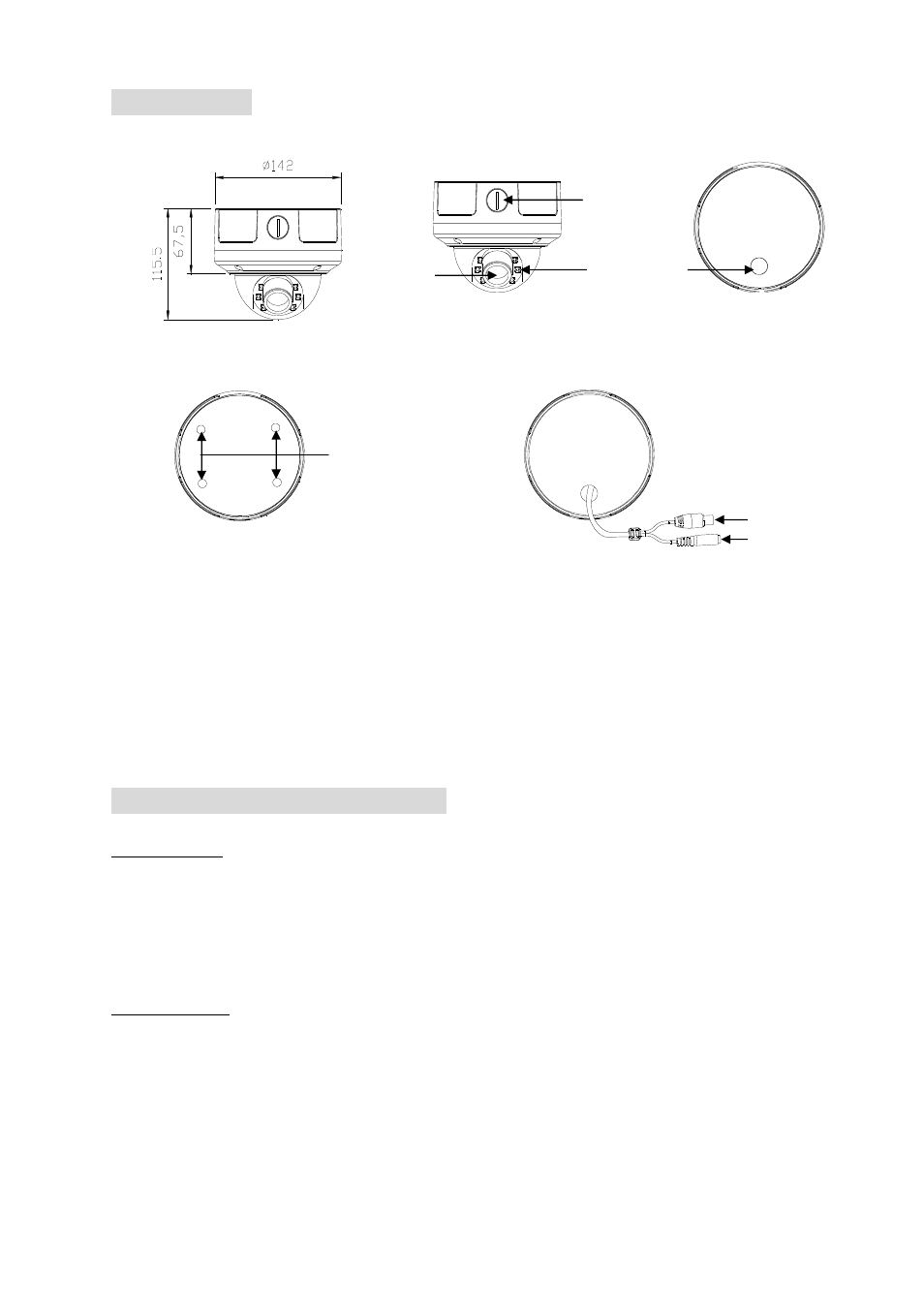

Dimensions
Front View
Bottom View
Top View
Bottom View
D
E
F
G
A
C
B
E. Inner plate mounting holes
F. BNC Connector
G. DC Connector
