SPECIFICATIONS LA128z

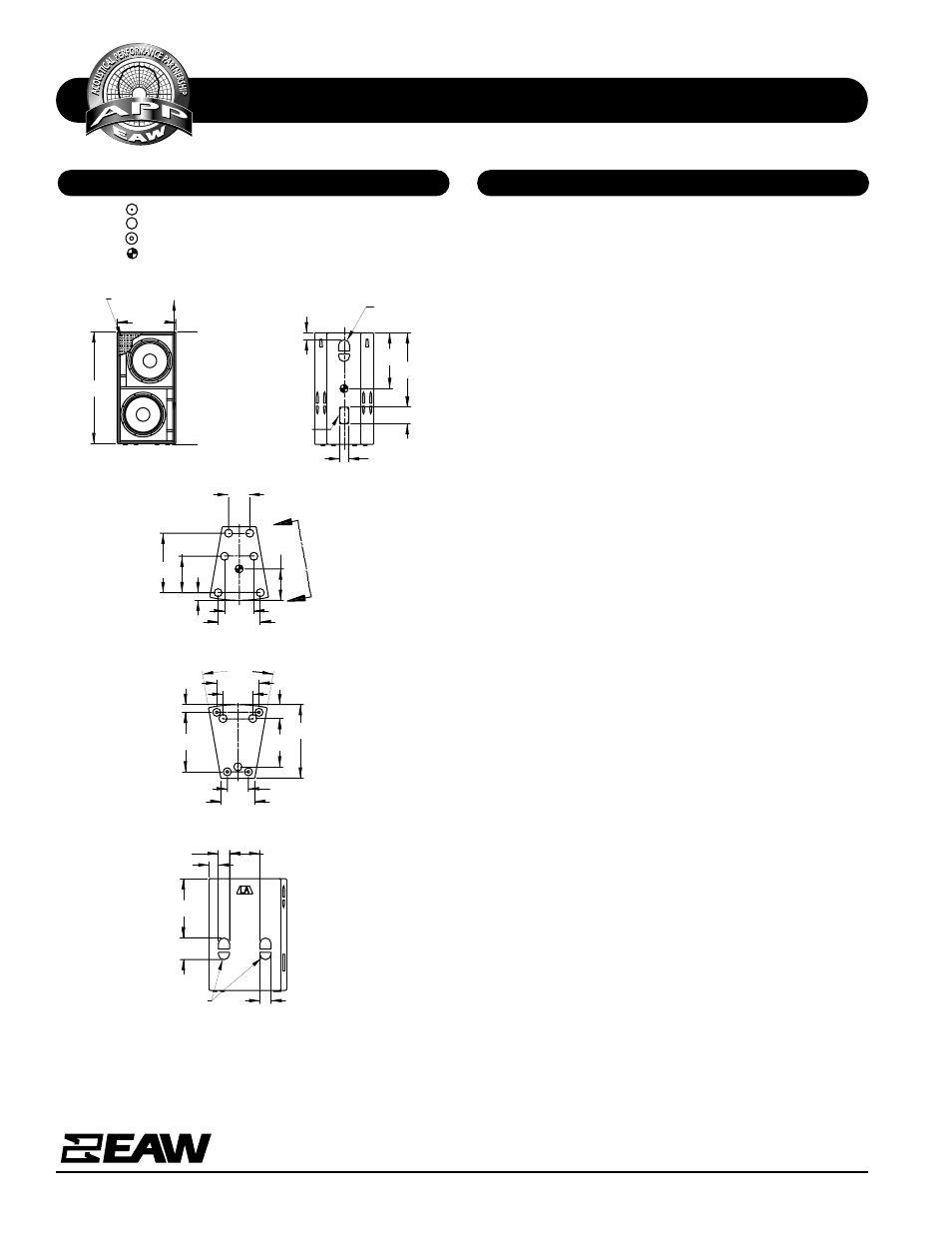

DIMENSIONAL DRAWING A & E SPECIFICATIONS
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 [email protected] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. LA128z/2 pp October 2001 Printed in USA
INDICATES CENTER OF BALANCE.
INDICATES MOUNTING POINT-CASTER PALLET
INDICATES RUBBER FOOT.
INDICATES FOOT CUP.
Manufacturing tolerances are +/- 0.13 and +/- 1°
509109 (0)
2/21/01
FRONT
GRILLE PARTIALLY
SHOWN
23.62
45.44 45.00
4.50
3.75
23.88
2X 8.75
2X HANDLES
BACK
20°
22.50
30.00
HANDLE
L C
2.87
3.63
INPUT
6.63
.50
TOP
( )
D 8.53
14.64
11.81
23.95 3.11
A
12.66
L C
A
17.02
BAC
Y
BOTTOM
L
C
12.00
23.95
17.02 3.11
19.46
5.60
8.53
(13.66)
29.66
20°
SIDES
DIMENSIONS APPLY
TO BOTH SIDES 3.11
INP
LY
.44
4.50
3.75
23.88
12.25
2X 8.75
2X HANDLES 5X 4.50
20°
The sub bass loudspeaker systems shall incorporate 2x 18-in
LF transducer mounted in a vented enclosure tuned for opti-
mum low frequency response.
System frequency response shall vary no more than ±3 dB
from 31 Hz to 200 Hz measured on axis using appropriate sig-
nal processing. The loudspeaker shall produce a Sound
Pressure Level (SPL) of 98 dB SPL on axis at 1 meter with a
power input of 1 Watt, and shall be capable of producing a
peak output of 135 SPL on axis at 1 meter. The loudspeaker
shall handle 1600 Watts of amplifier power (continuous) and
shall have a nominal impedance of 8 Ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of multi-ply, void-free cross-grain-lami-
nated Baltic birch plywood and shall employ extensive inter-
nal bracing. It shall be finished in black catalyzed
polyurethane. Input connectors shall be dual Neutrik NL4
Speakon. The front of the loudspeaker shall be covered with
a vinyl coated perforated steel grille.
The sub bass loudspeaker shall be the EAW model LA128z.
