EPSON Perfection 636
4 - EPSON Perfection 636 10/98
Feeder type Sheet through, face up loading, face down
ejecting, roller friction
Loading position Left side of paper against left side of feeder
Connector 8-pin DIN male
Operating
temperatures
Operation
50 to 90 °F (10 to 32 °C)
Storage
-4 to 140 °F (–20 to 60 °C)
Humidity (without
condensation)
Operation
20% to 80%
Storage
10% to 85%
Operating
conditions
Ordinary office or home conditions; avoid
extreme dust, direct sunlight, and strong
light.
Reliability Load/eject: MCBF 20,000 sheets
Hinge: MCBF 12,000 cycles
Electrical Input voltage: DC 24 V ± 10%
DC 5 V ± 5%
Input current: 24 V: 0.8 A
5 V: 0.2 A
Safety approvals UL 1950
CSA C22.2 No. 950
EN60950 (VDE)
IEC950 (ROSTEST, PSB)
EMC FCC Part 15 Subpart B Class B
CSA C108.8 Class B
AS/NZS3548 Class B
CISPR Pub 22 Class B
CNS13438 Class B
CE Marking Low voltage directive 73/23/EEC
EN60950
EMC Directive 89/336/EECEN55022
Class B
EN50082-1
IEC 801-2/801-3/801-4
Resistance to
electrical noise
(static electricity)
Casing: 10 kV
Metal: 7 kV/150 pF, 150 ohm
Document Specifications
Feeder capacity 20 sheets of maximum weight 55 gm,
thickness less than 0.16 inch (4 mm)
Size Width: 3.3 to 8.5 inches (85 to 216 mm)
Length: 5 to 14 inches (127 to 356 mm)
Thickness 0.0028 to 0.0063 inch (0.07 to 0.16 mm)
Ream weight 110 to 231 lbs (50 to 105 kg)
Weight 58 to 122 g/m
2
Paper quality High-quality bond paper, check paper,
recycled paper
Applied color Color and monochrome
Document type Documents printed with impact printers,
laser printers, or facsimile machines
Don’t use the following paper types:
transparencies, coated paper, labels, carbon
paper, or paper with staples, holes, rips, curls,
or folds.

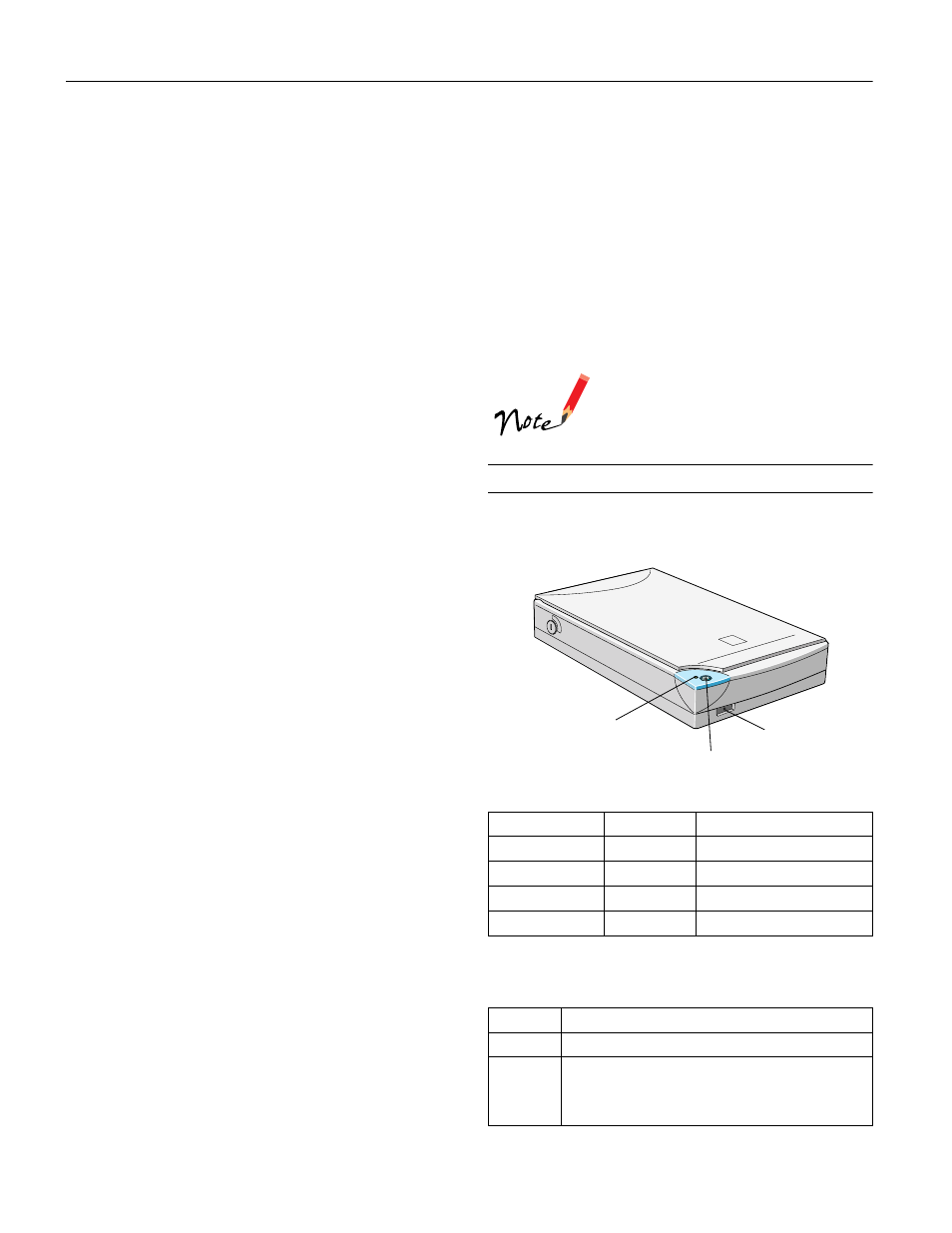

Light and Buttons
The scanner has one indicator light and two buttons. Light
status and button functions are described in the tables below.
N = on, O = off, F = flashing
Scanner operate light
Light status Color Scanner status
F (slowly flashing) Green Initializing or busy scanning
N Green Ready to scan images
F (rapidly flashing) Red or Orange An error occurred
O N/A The scanner is turned off
Scanner button
Button Function
P Operate Turns the scanner on and off.
]
Start
Lets you scan directly to an application with one touch.
You must set up the scanner monitor and a compatible
application to use this button. See the
EPSON TWAIN
User’s Guide for more information.
operate button operate
light
Start button
