PTZ Setting Menu

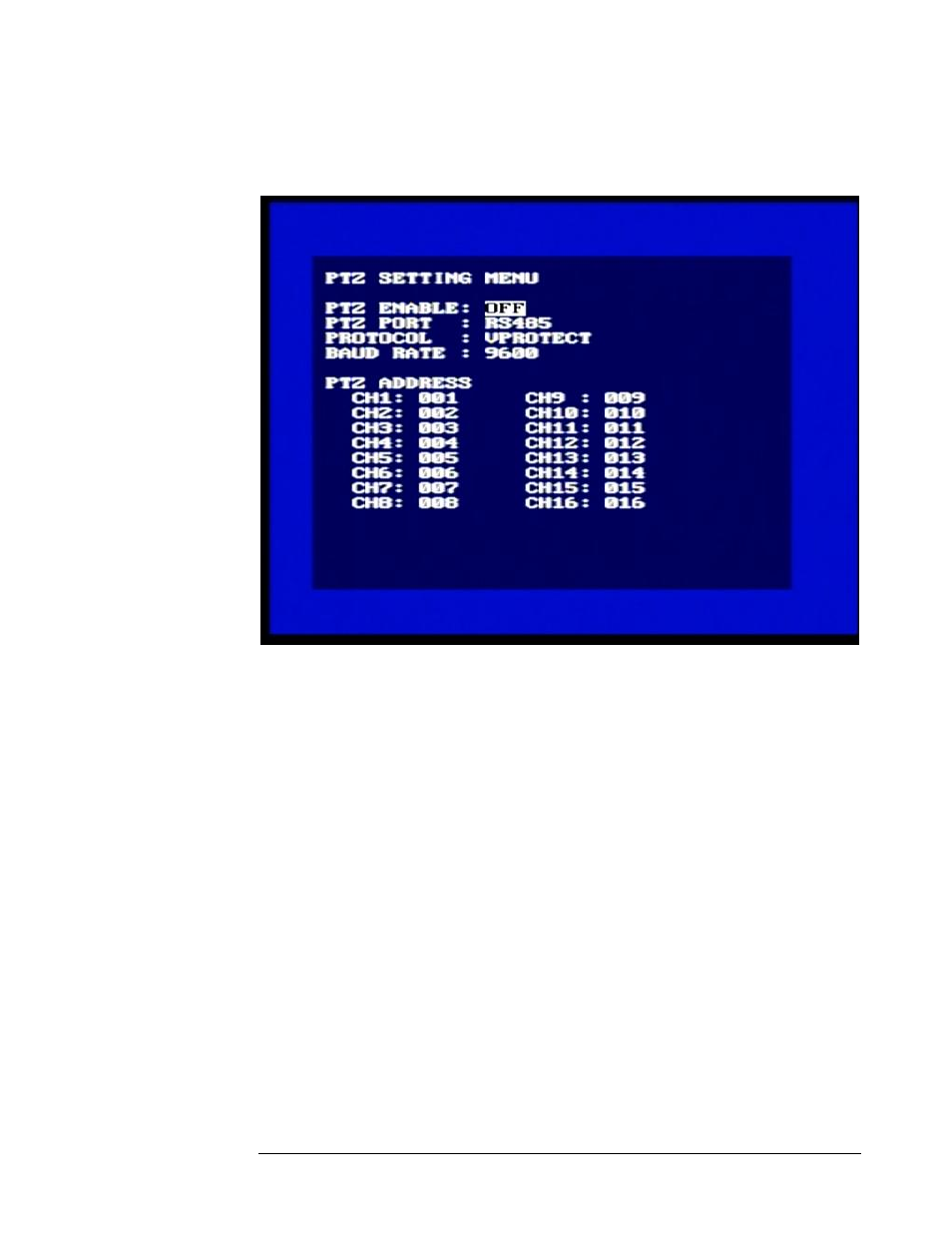

Diagram 22
Diagram 22 is a screen shot of the PTZ setting menu. PTZ control functions are
accessible through the web interface. You now have the same basic controls used with
the EKB series keyboards over the web interface. This allows you to control the
camera pan, tilt and zoom functions while away.
¾ PTZ ENABLE: Turn this option on to enable PTZ control on the DVR
¾ PTZ PORT: Set this to RS-485 to connect to the PTZ cameras
¾ PROTOCOL: Select the Protocol for the PTZ Cameras (Vprotect,
EverFocus, Pelco-D, Pelco-D)
¾ BAUD RATE: Set this to match All PTZ cameras
¾ PTZ ADDRESS: Set the ID of the camera to the Channel which the
camera is connected to.
