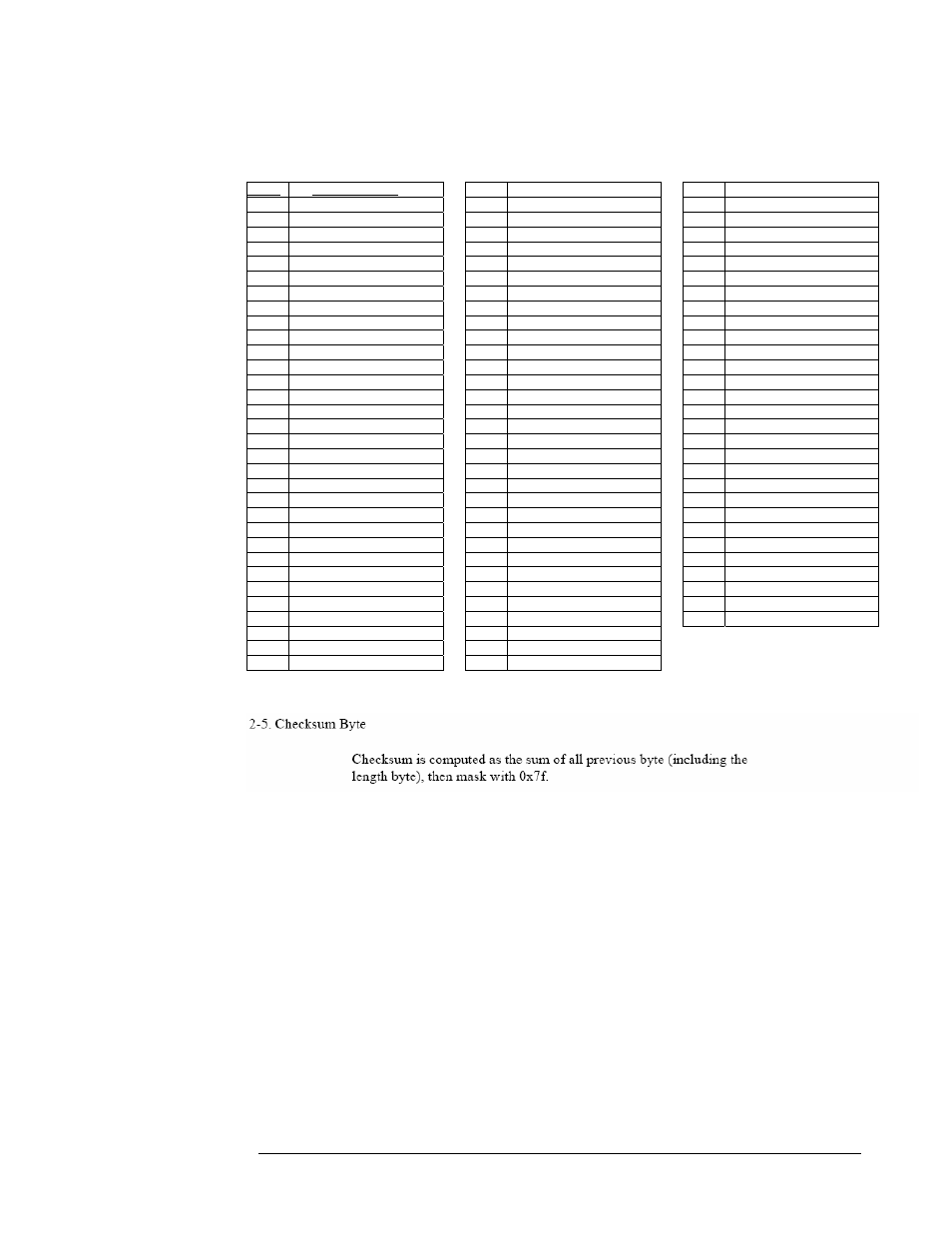

Matrix command (Opcode= 0x4D)
Data1 Matrix Function
0x00 Matrix Mon0 – CH01 spot
0x01 Matrix Mon0 – CH02 spot
0x02 Matrix Mon0 – CH03 spot
0x03 Matrix Mon0 – CH04 spot
0x04 Matrix Mon0 – CH05 spot
0x05 Matrix Mon0 – CH06 spot
0x06 Matrix Mon0 – CH07 spot
0x07 Matrix Mon0 – CH08 spot
0x08 Matrix Mon0 – CH09 spot
0x09
Matrix Mon0 – CH10 spot
0x0A Matrix Mon0 – CH11 spot
0x0B Matrix Mon0 – CH12 spot
0x0C Matrix Mon0 – CH13 spot
0x0D Matrix Mon0 – CH14 spot
0x0E Matrix Mon0 – CH15 spot
0x0F Matrix Mon0 – CH16 spot
0x10 Matrix Mon1 – CH01 spot
0x11 Matrix Mon1 – CH02 spot
0x12 Matrix Mon1 – CH03 spot
0x13 Matrix Mon1 – CH04 spot
0x14 Matrix Mon1 – CH05 spot
0x15 Matrix Mon1 – CH06 spot
0x16 Matrix Mon1 – CH07 spot
0x17 Matrix Mon1 – CH08 spot
0x18 Matrix Mon1 – CH09 spot
0x19 Matrix Mon1 – CH10 spot
0x1A Matrix Mon1 – CH11 spot
0x1B Matrix Mon1 – CH12 spot
0x1C Matrix Mon1 – CH13 spot
0x1D Matrix Mon1 – CH14 spot
0x1E Matrix Mon1 – CH15 spot
0x1F
Matrix Mon1 – CH16 spot
0x20 Matrix Mon2 – CH01 spot
0x21 Matrix Mon2 – CH02 spot
0x22 Matrix Mon2 – CH03 spot
0x23 Matrix Mon2 – CH04 spot
0x24 Matrix Mon2 – CH05 spot
0x25 Matrix Mon2 – CH06 spot
0x26 Matrix Mon2 – CH07 spot
0x27 Matrix Mon2 – CH08 spot
0x28 Matrix Mon2 – CH09 spot
0x29 Matrix Mon2 – CH10 spot
0x2A Matrix Mon2 – CH11 spot
0x2B Matrix Mon2 – CH12 spot
0x2C Matrix Mon2 – CH13 spot
0x2D Matrix Mon2 – CH14 spot
0x2E Matrix Mon2 – CH15 spot
0x2F Matrix Mon2 – CH16 spot
0x30 Matrix Mon3 – CH01 spot
0x31 Matrix Mon3 – CH02 spot
0x32 Matrix Mon3 – CH03 spot
0x33 Matrix Mon3 – CH04 spot
0x34 Matrix Mon3 – CH05 spot
0x35
Matrix Mon3 – CH06 spot
0x36 Matrix Mon3 – CH07 spot
0x37 Matrix Mon3 – CH08 spot
0x38 Matrix Mon3 – CH09 spot
0x39 Matrix Mon3 – CH10 spot
0x3A Matrix Mon3 – CH11 spot
0x3B
Matrix Mon3 – CH12 spot
0x3C Matrix Mon3 – CH13 spot
0x3D Matrix Mon3 – CH14 spot
0x3E Matrix Mon3 – CH15 spot
0x3F
Matrix Mon3 – CH16 spot
0x40 Matrix Mon4- CH01 spot
0x41 Matrix Mon4- CH02 spot
0x42 Matrix Mon4- CH03 spot
0x43 Matrix Mon4- CH04 spot
0x44 Matrix Mon4- CH05 spot
0x45 Matrix Mon4- CH06 spot
0x46 Matrix Mon4- CH07 spot
0x47 Matrix Mon4- CH08 spot
0x48 Matrix Mon4- CH09 spot
0x49 Matrix Mon4- CH10 spot
0x4A Matrix Mon4- CH11 spot
0x4B
Matrix Mon4- CH12 spot
0x4C Matrix Mon4- CH13 spot
0x4D Matrix Mon4- CH14 spot
0x4E Matrix Mon4- CH15 spot
0x4F
Matrix Mon4- CH16 spot
0x50 Matrix Mon0 – sequence
0x51 Matrix Mon1 – sequence
0x52 Matrix Mon2 – sequence
0x53 Matrix Mon3 – sequence
0x54 Matrix Mon4 – sequence
0x60 Matrix Mon0 – turn OSD on
0x61 Matrix Mon1 – turn OSD on
0x62 Matrix Mon2 – turn OSD on
0x63 Matrix Mon3 – turn OSD on
0x64 Matrix Mon4 – turn OSD on
0x70 Matrix Mon0 – turn OSD off
0x71 Matrix Mon1 – turn OSD off
0x72 Matrix Mon2 – turn OSD off
0x73 Matrix Mon3 – turn OSD off
0x74 Matrix Mon4 – turn OSD off
