E V E R F O C U S E L E C T R O N I C S C O R P O R A T I O N
Chapter
2
Installation
The installations described below should be made by qualified service personnel or
system installers.

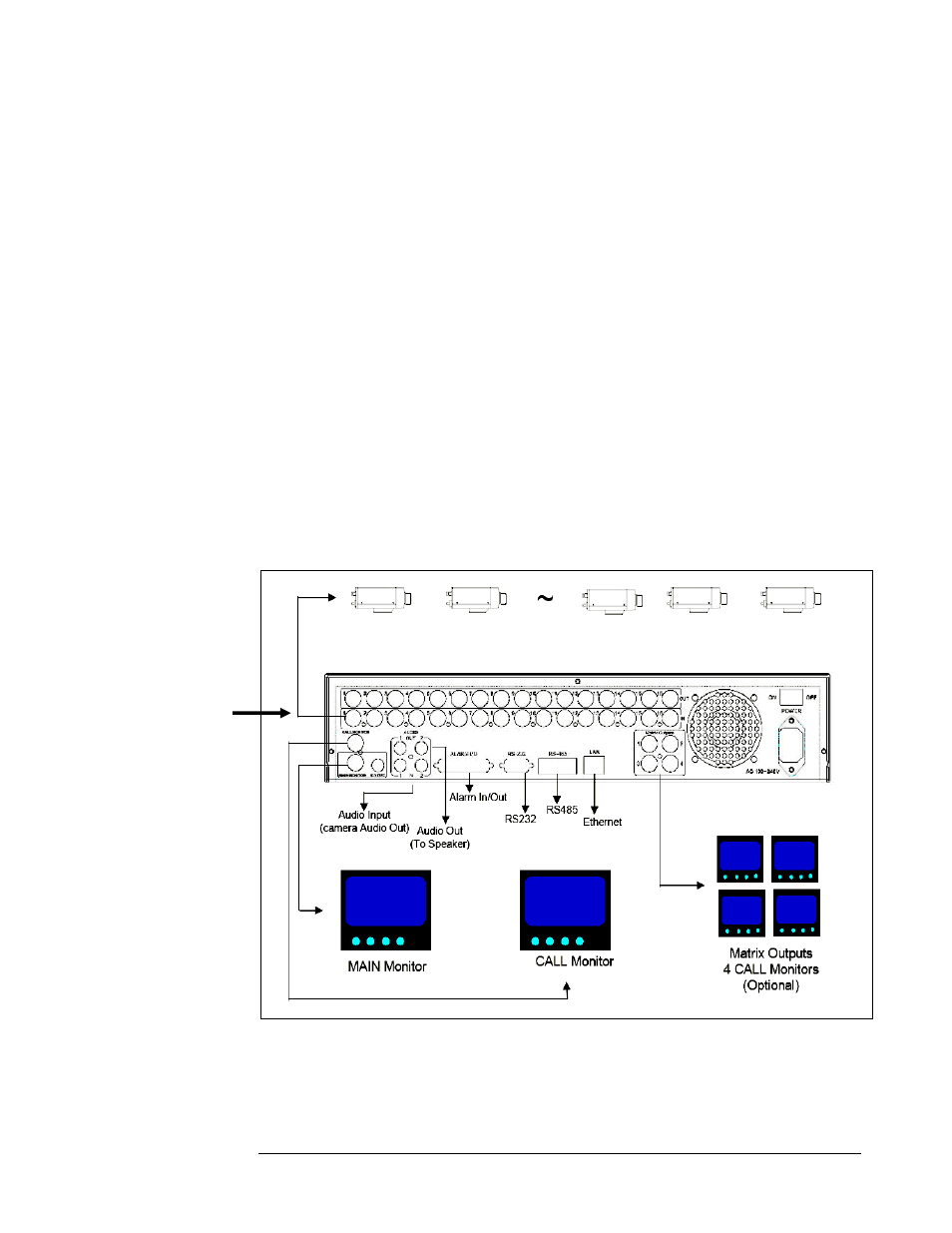

Please refer to the following diagram for the basic wiring connections.
¾ Please Note: Monitors and Cameras must be purchased separately.
EDSR400: Camera 1~4 / EDSR600: Camera 1~6
EDSR900: Camera 1~9 / EDSR1600: Camera 1~16
Video In
Diagram 1
7
