17
6. Communication Port
Intelligent slot
This series is equipped with an intelligent slot for Webpower
(optional accessory) or other optional card to achieve remote
management of the UPS through internet / intranet. Please contact
your local distributor for further information.
RS232 interface
The following are the descriptions and pin assignment of RS232
DB-9 port:
Baud rate: 2400bps Data bit: 8 bit
Ending bit:1bit Parity bit: None

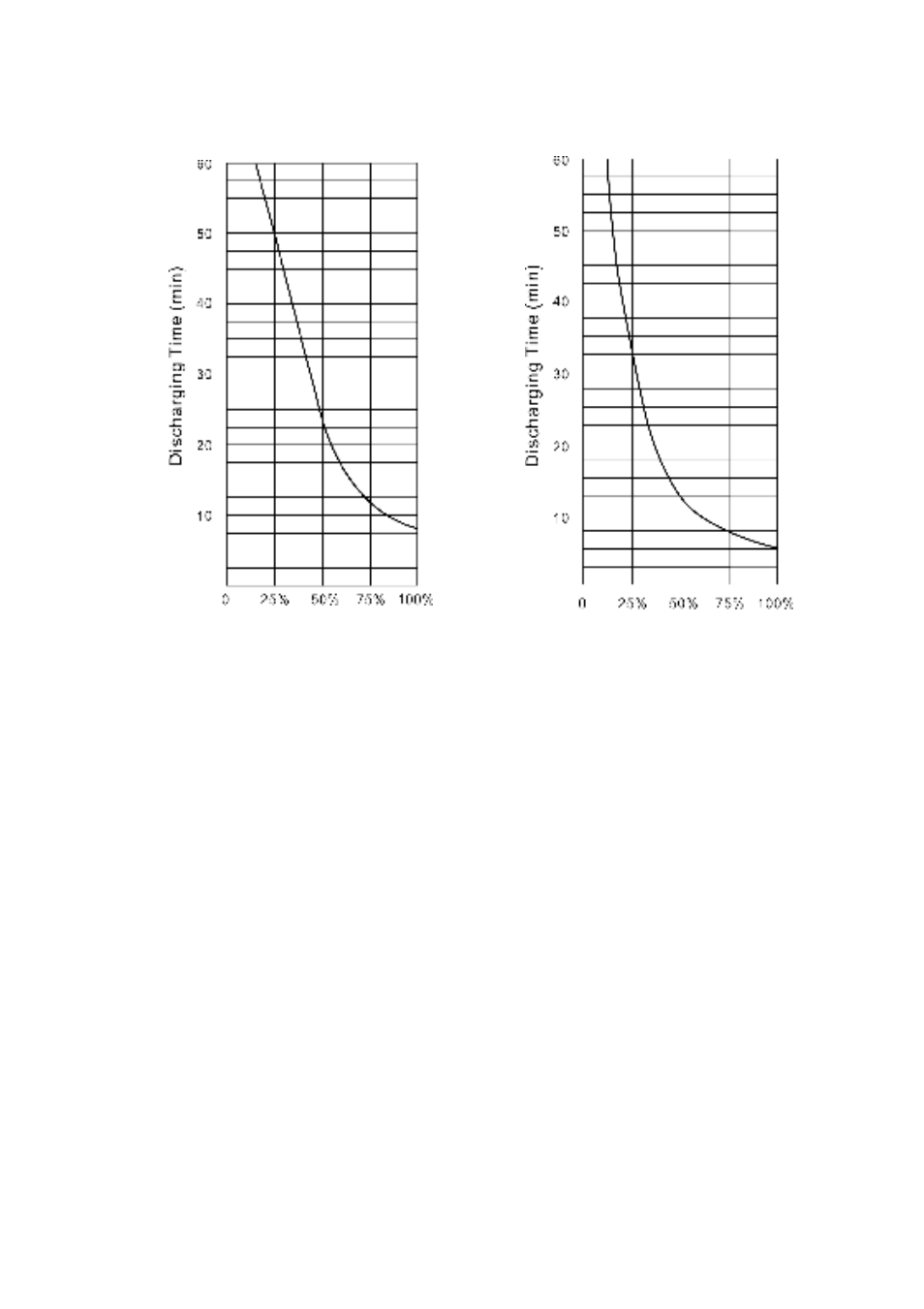

Load Level
Backup Time Of 6000L(XL)
Load level
Backup Time Of 10000L(XL)
