Cabling, Installation and operation, cont’d cabling, Sw1 j3 j2 1 – Extron Electronics SCP_AAP A User Manual

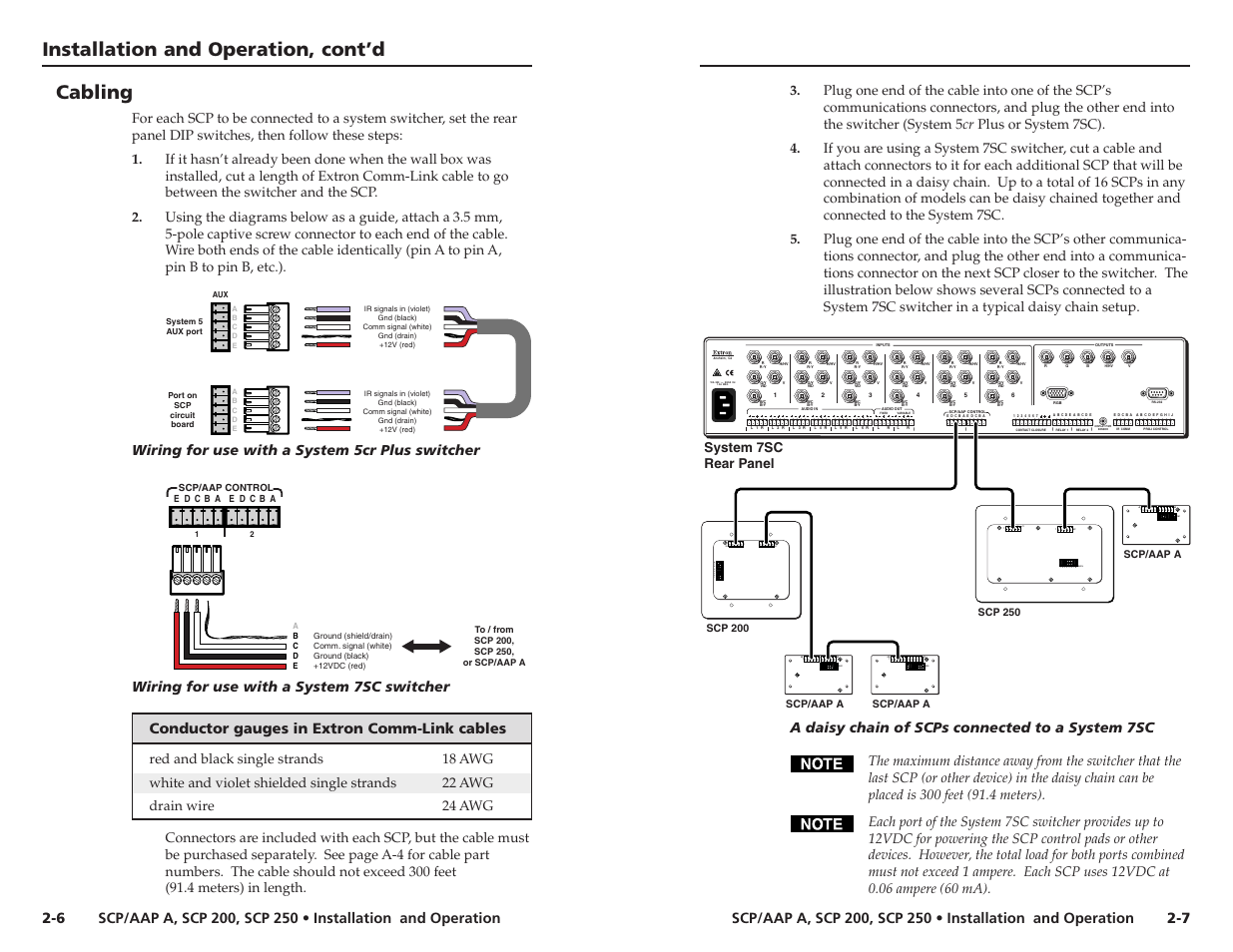

Page 8: Wiring for use with a system 5cr plus switcher, A daisy chain of scps connected to a system 7sc, System 7sc rear panel

Text mode
Original mode

Cabling, Installation and operation, cont’d cabling, Sw1 j3 j2 1 | Wiring for use with a system 5cr plus switcher, A daisy chain of scps connected to a system 7sc, System 7sc rear panel | Extron Electronics SCP_AAP A User Manual | Page 8 / 21
