vIdeo sIGnaL characTerIsTIcs

Unit-to-unit tracking
(ShiftLock)

.. . . . . . . . . . . . . . . . . . . . . . . . . Between units: ±0.5 ns accuracy

Long-term drift: ±0.5 ns accuracy
<0.1 pixels @ 60 kHz
<0.05 pixels @ 31.5 kHz

Rise time.. . . . . . . . . . . . . . . . . . . . . . . . . . . <1.6 ns

Orbiting cycle length... . . . . . . . . . . . 19 minutes

vIdeo ouTPuT

Number / Signal type.. . . . . . . . . . . . 1 RGBHV, RGBS, RGsB

Connectors.. . . . . . . . . . . . . . . . . . . . . . . . 5 BNC female

Nominal level.. . . . . . . . . . . . . . . . . . . . . 0.7 Vp-p (excluding sync)

Impedance... . . . . . . . . . . . . . . . . . . . . . . . 75 ohms

Return loss.. . . . . . . . . . . . . . . . . . . . . . . . <-30 dB @ 5 MHz

DC offset.. . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mV maximum

sync

Input type.. . . . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB

Output type.. . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB

ShiftLock connectors.. . . . . . . . . . . . 2 female jacks (ShiftLock)

Input level.. . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 5 Vp-p

Output level.. . . . . . . . . . . . . . . . . . . . . . . TTL: 4 V to 5.0 Vp-p, unterminated

Input impedance.. . . . . . . . . . . . . . . . . 510 ohms

Output impedance.. . . . . . . . . . . . . . . 75 ohms

Max. Rise / Fall time.. . . . . . . . . . . . . 4.15 ns

Polarity.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Positive or negative

GeneraL

Power... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, 12 watts, internal, autoswitchable

Temperature / Humidity.. . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Rack mount.. . . . . . . . . . . . . . . . . . . . . . . Yes, with optional 1U rack shelf, part #60-190-01 or 60-604-01

Enclosure type.. . . . . . . . . . . . . . . . . . . . Metal

Enclosure dimensions.. . . . . . . . . . . 1.7" H x 8.7" W x 9.4" D (1U high, half rack wide)

4.2 cm H x 22.1 cm W x 23.9 cm D
(Depth excludes connectors and knobs.)

Product / Shipping weight.. . . . . . 3.1 lbs (1.4 kg) / 6 lbs (3 kg)

S p e c i a l i z e d p r o d u c t S — S c r e e n S a v e r p r o d u c t S

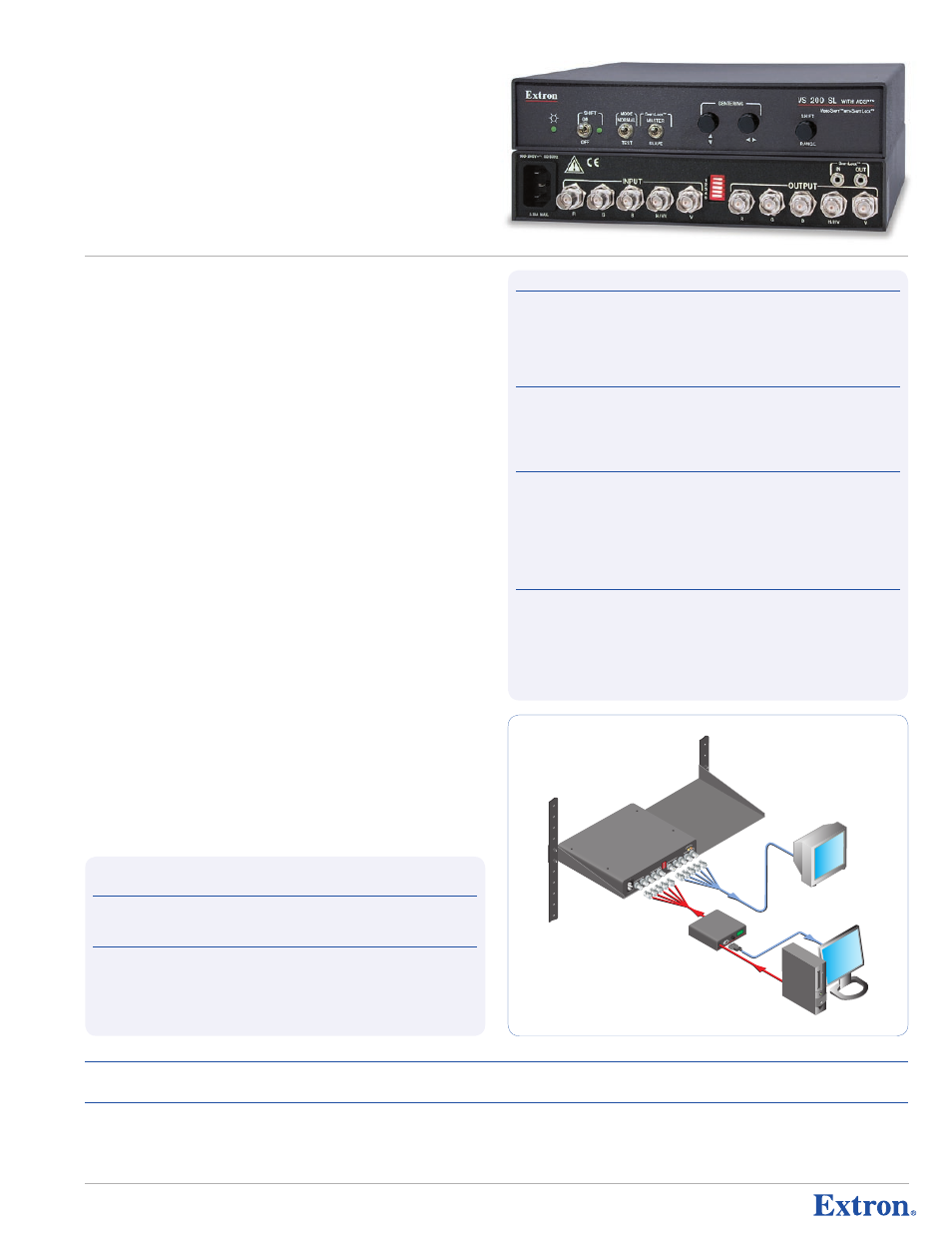

VS 200 SL

VideoShift

™

Image Orbiter with ShiftLock

™

FeaTures

•

Helps prevent CRT or plasma display burn-in

• Input: Female BNCs for RGBS and RGBHV

•

Output: Female BNCs for RGBS and RGBHV

•

Compatible with RGsB, RGBS, or RGBHV signals

•

Variable shift range affects horizontal and vertical pixel/line movement

•

Imperceptible horizontal and vertical movement

•

Test mode allows for setup of image by quickly shifting H&V so the image can
be easily centered and sized

•

Compatible with both interlaced and non-interlaced computer signals

•

RGBHV output allows for the smoothest shifting

•

250 MHz (-3 dB) RGB video bandwidth

•

ShiftLock

™

allows for "sync-locking" up to 17 VS 200 SLs

•

Rack-mountable

•

1U, half rack width metal enclosure

•

Internal international power supply

descrIPTIon

The Extron

VS 200 SL VideoShift with ShiftLock

™

allows an image to be slowly "orbited" or

shifted around a CRT or plasma display. Using Extron digital sync circuitry, the VS 200 SL is
capable of shifting all types of computer signals, both horizontally and vertically at a very slow
speed that it is imperceptible to the eye. This movement, up to one-fourth or 25% of the image,
set by range adjustment, is all that is required to help prevent CRT or plasma display burn-in.

ShiftLock allows multiple VS 200 SLs to be "sync-locked" together allowing for simultaneous
shifting of multiple images, such as for monitor/projector walls. Because many installations
that require VideoShift to help extend the life span of a CRT or plasma display have multiple
projection screens side-by-side, ShiftLock must be installed so that all images will move
horizontally and vertically at the same time and in the same direction.

sPecIFIcaTIons

vIdeo

Gain.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unity

Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . 250 MHz (-3 dB), fully loaded

Frequency response.. . . . . . . . . . . . . <±0.1 dB to 15 MHz

vIdeo InPuT

Number / Signal type.. . . . . . . . . . . . 1 RGBHV, RGBS, RGsB

Connectors.. . . . . . . . . . . . . . . . . . . . . . . . 5 female BNC

Minimum / Maximum levels... . . Analog: 0.3 V to 1.25 Vp-p with no offset

Impedance... . . . . . . . . . . . . . . . . . . . . . . . 75 ohms

Horizontal frequency. . . . . . . . . . . . . 15 kHz to 150 kHz

Vertical frequency.. . . . . . . . . . . . . . . . 40 Hz to 140 Hz

Return loss.. . . . . . . . . . . . . . . . . . . . . . . . <-30 dB @ 5 MHz

ModeL

versIon descrIPTIon

ParT #

MsrP

VS 200 SL

Video Image Orbiter

.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

60-175-01

1,390

oPTIonaL accessorIes

ModeL descrIPTIon

PaGe

ParT #

MsrP

RSU 129

1U 9.5" Deep Universal Rack Shelf Kit

.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

page 759

60-190-01

130

RSB 129

1U 9.5" Deep Basic Rack Shelf

.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

page 760

60-604-01

MBU 129

1U, 1/2 Rack Width Under-Desk Mount Kit for Four-Piece Enclosure

.. . . . . . . . . . . .

page 756

70-219-01

SYM BNCM/6

15-pin HD Male to BNC Male Mini High Resolution Cables

.. . . . . . . . . . . . . . . . . . . . . . .

page 716

26-533-02

629
