Page 14

14

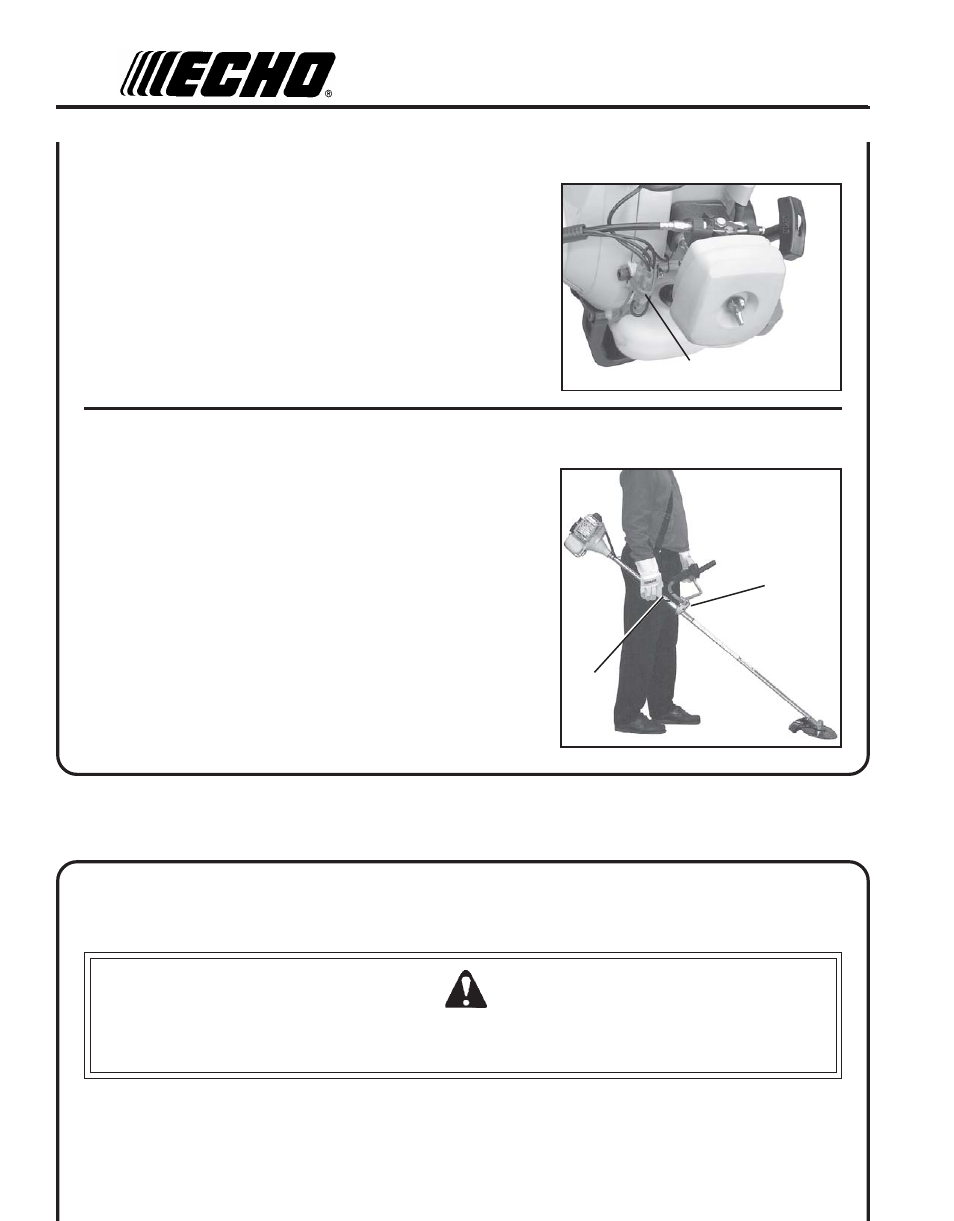

4.
Bundle and secure ignition leads against engine housing with clip
(I).
J
K
I
BALANCE
AND
ADJUST
UNIT
1.
Loosen harness clamp screw.
2.
Put on harness and attach unit to harness.
3.
Slide harness clamp (J) up or down until unit balances with head
approximately 50-75 mm (2 -3 in.) from the ground.
4.
Tighten harness clamp screw.
5.
Loosen upper U-Handle clamp screws (K), and position U-Handle
for comfortable operation.
6.
Tighten U-Handle clamp screws and 8 mm clamp bolt securely.
O
PERATION
OPERATION
WITH
BLADES
WARNING
DANGER
The type of Blade used MUST be matched to the type and size of material cut. An improper or dull blade can cause
serious personal injury. Blades MUST be sharp. Dull blades increase the chance of kick-out and injury to yourself
and bystanders.
