10

A

SSEMBLY

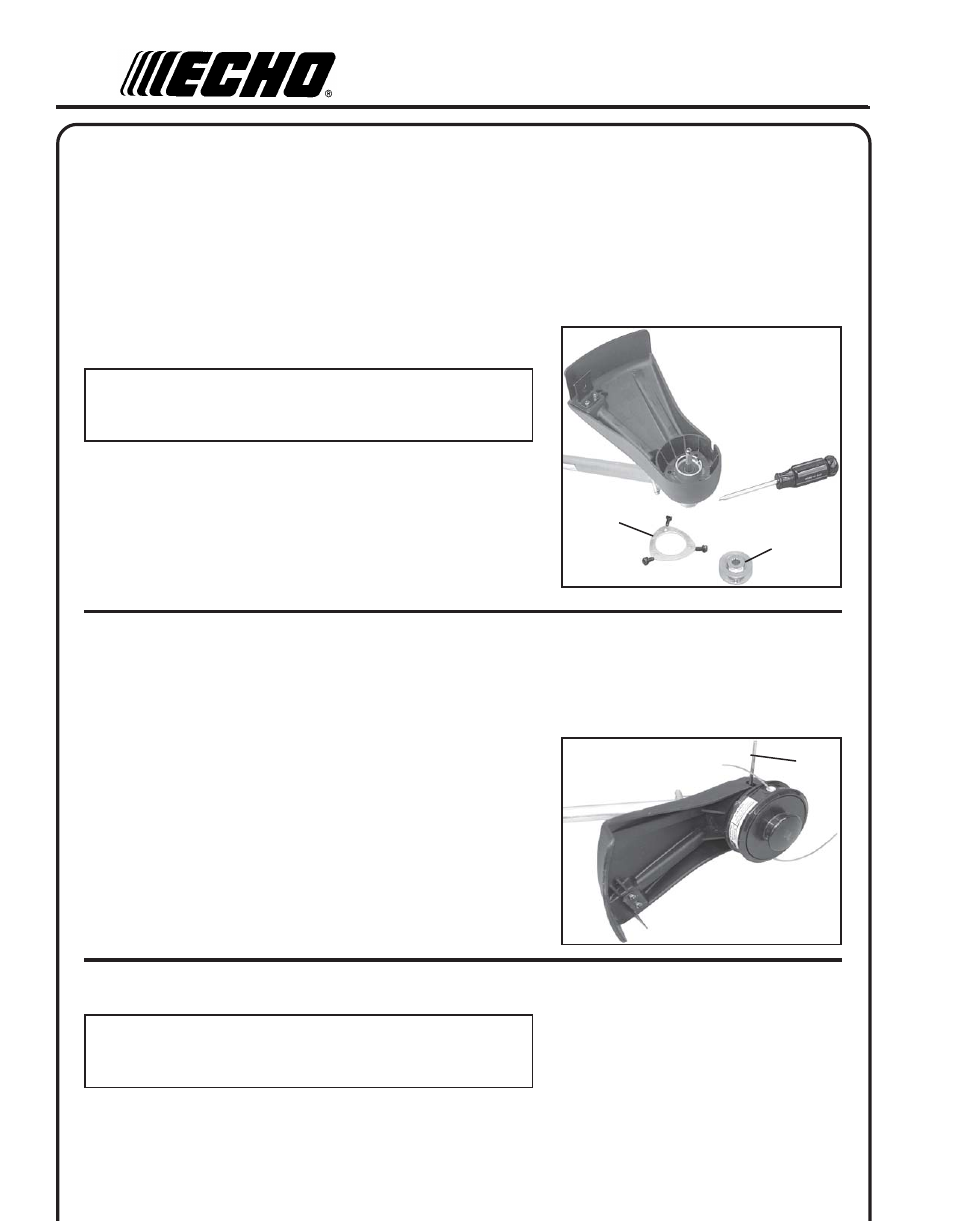

PLASTIC

SHIELD

INSTALLATION

(For Nylon Line Operation)

Tools Required: Screwdriver.

Parts Required: Plastic Shield, Shield Plate, three (3) 5mm x 16mm

screws.

NOTE
The plastic shield is for use with the Nylon Line Head only.
Install Metal Shield when using plastic or metal blades.

1.

Remove plastic sleeve and upper plate (A) from PTO shaft.

2.

Install the shield on the bottom of the bearing housing flange.

3.

Place shield plate (B) on shield, align holes and install three (3)
5x16 mm screws.

4.

Install upper plate (A).

NYLON

LINE

HEAD

INSTALLATION

(Use with Plastic Shield)

Tools Required: Head Locking Tool.

Parts Required: Nylon Line Head.

1.

Be sure upper adapter plate remains on PTO shaft.

2.

Align locking hole in upper plate with notch in edge of gear
housing and insert head locking tool (C).

3.

Thread line head onto shaft by turning it counter clockwise until
head is tight against upper plate.

4.

Remove locking tool.

TO

ADVANCE

TRIMMER

LINE

Tip:
To advance trimmer line, tap trimmer head against the ground while
the head is turning at normal operating speed.

B

A

C
