4
Description of the appliance
• The cooker hood is designed to extract
unpleasant odours from the kitchen, it will
not extract steam.
• The hood is supplied as a recirculator unit and
can also be used with a extraction mode by not
installing/using the charcoal filters.
Attention! The charcoal filters are attached to one
side of the polystyrene protection panels in the
packaging and should be fitted into place prior to
using the cooker hood in the recirculation version.

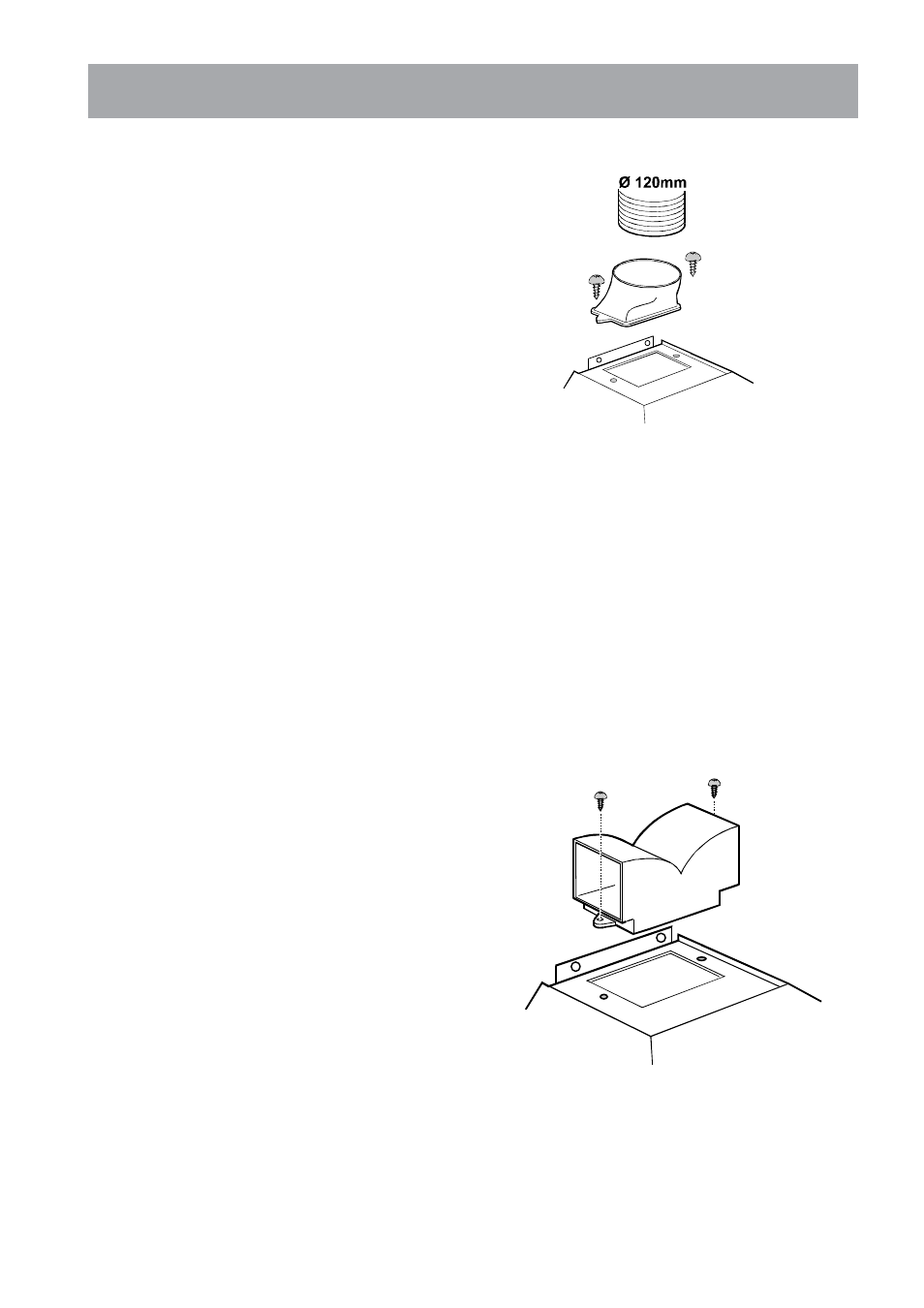

Extraction mode
• In this mode fumes are extracted to the outside
via a hose connected to the coupling ring,
Fig. 1.
• In order to obtain the best performance the hose
should have a diameter equal to the outlet hole.
Fig. 1
Recirculation mode
• The air is filtered through a charcoal filter and
returned to the kitchen.
• Fix the deflector using 2 screws Ø 3,5x6.5 mm.
Fig. 2.
Fig. 2
Coupling ring
