R
MENU SET
LOW
BATT
ON / OFF
755050
R
SET
Controls: Power On/Off, Set, Up, Down
Displays: LCD display showing: Battery
Level, Channel/Group or
Frequency
Battery Life: 8 hours with 9V alkaline typical
Antenna: Internal 1/2 wave
Microphone Elements: EV N/D 767a or N/D 967
Dynamic EV RE510 or RE410
Condenser
RF Output Selectable: 5 mW or 50 mW typical
Case Material: High Impact ABS
Size (Length x max
diameter): 24.8 cm (9.75 in.) x 52 mm (2.04
in.)
755050
R
SET
MENU
755050
R
AA SET MENU
Controls: Power On/Off, Set, Up, Down
Displays: Backlit LCD display showing:
Battery Level, Channel/Group or
Frequency
Battery Life: 10 hours with two AA alkaline
typical
Antenna: Internal Proprietary
Microphone Elements: EV N/D 767a or N/D 967 Dynamic
EV RE510 or RE410 Condenser
Case Material: Machined Aluminum
RF Output Selectable: 5 mW or 50 mW typical
Size (Length x max
diameter): 24.8 cm (9.75 in.) x 52 mm (2.04
in.)
Controls: Power, Menu Set, Up, Down
Indicators: Red LED Low Battery Indicator,
Back lit LCD display showing:
Battery Level, Channel/Group, or
Frequency
Battery Life: 8 hours with two AA alkaline typical
Antenna: External 1/4 wave detachable
Connector: TA4F input for microphone, Pin 1 -
ground, Pin 2 - Mic input, Pin 3 -
+5 Bias, Pin 4 - +5V through 3k
ohm
RF Output Selectable: 5 mW or 50 mW typical
Case Material: Cast Magnesium
Size: 3.37 in. H x 2.6 in. W x 0.75 in. D
85 mm H x 66 mm W x 19 mm D

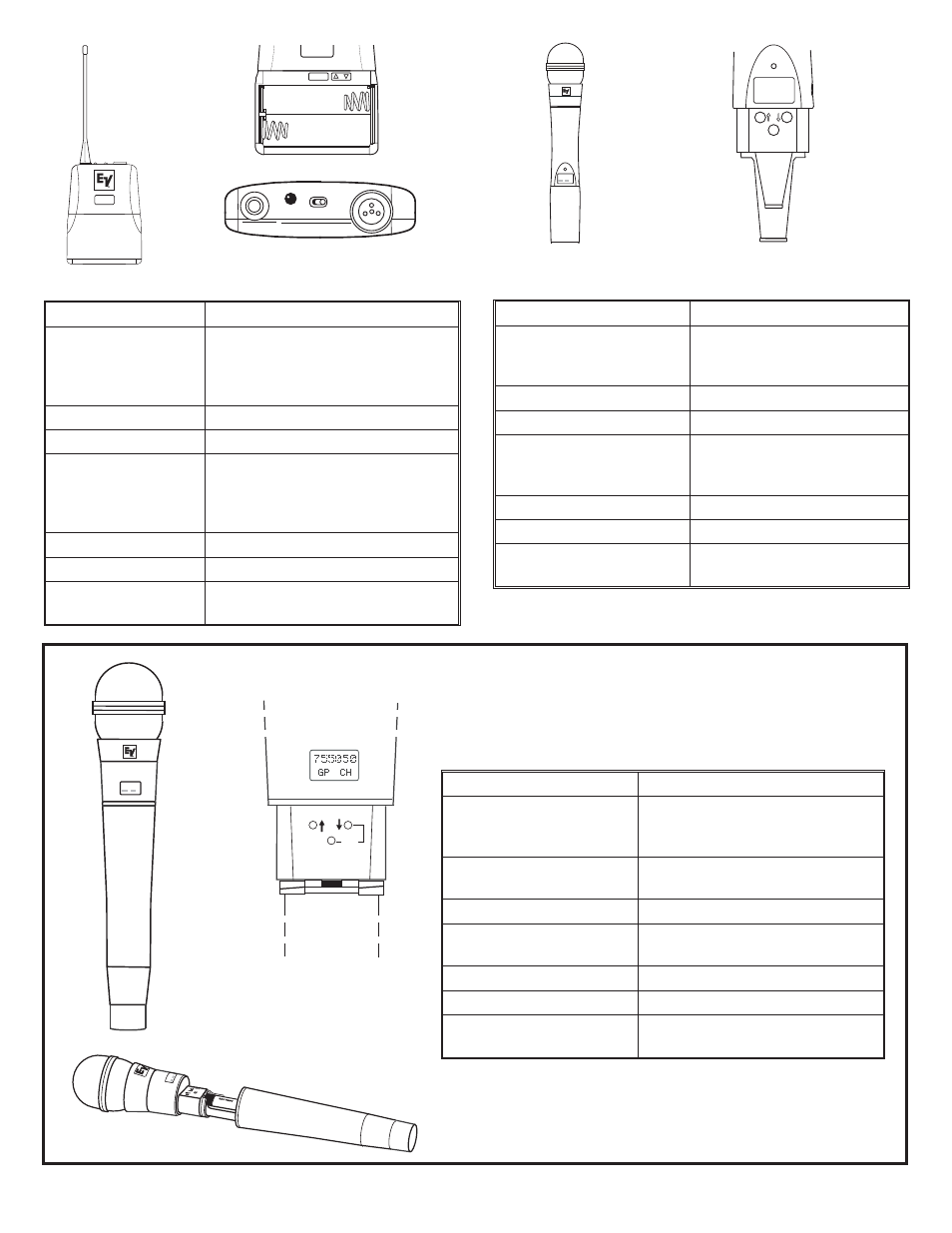

REV-WT Transmitter
REV-H Handheld Transmitter
REV-PH Presentation
Handheld Transmitter
3 of 4
