7
8. Turn the fan motor and housing assem-
bly upside down in preparation for
mounting the fan blade assemblies.
Remove and discard the three shipping
retainers securing the motor hub in the
motor housing.
NOTE: Take care not to scratch the fan
housing when installing the blade
assemblies.
9. Insert a 1/4-20 x 11mm pan head screw
with lockwasher (supplied) into each of
the recessed holes in one of the blade
flanges.

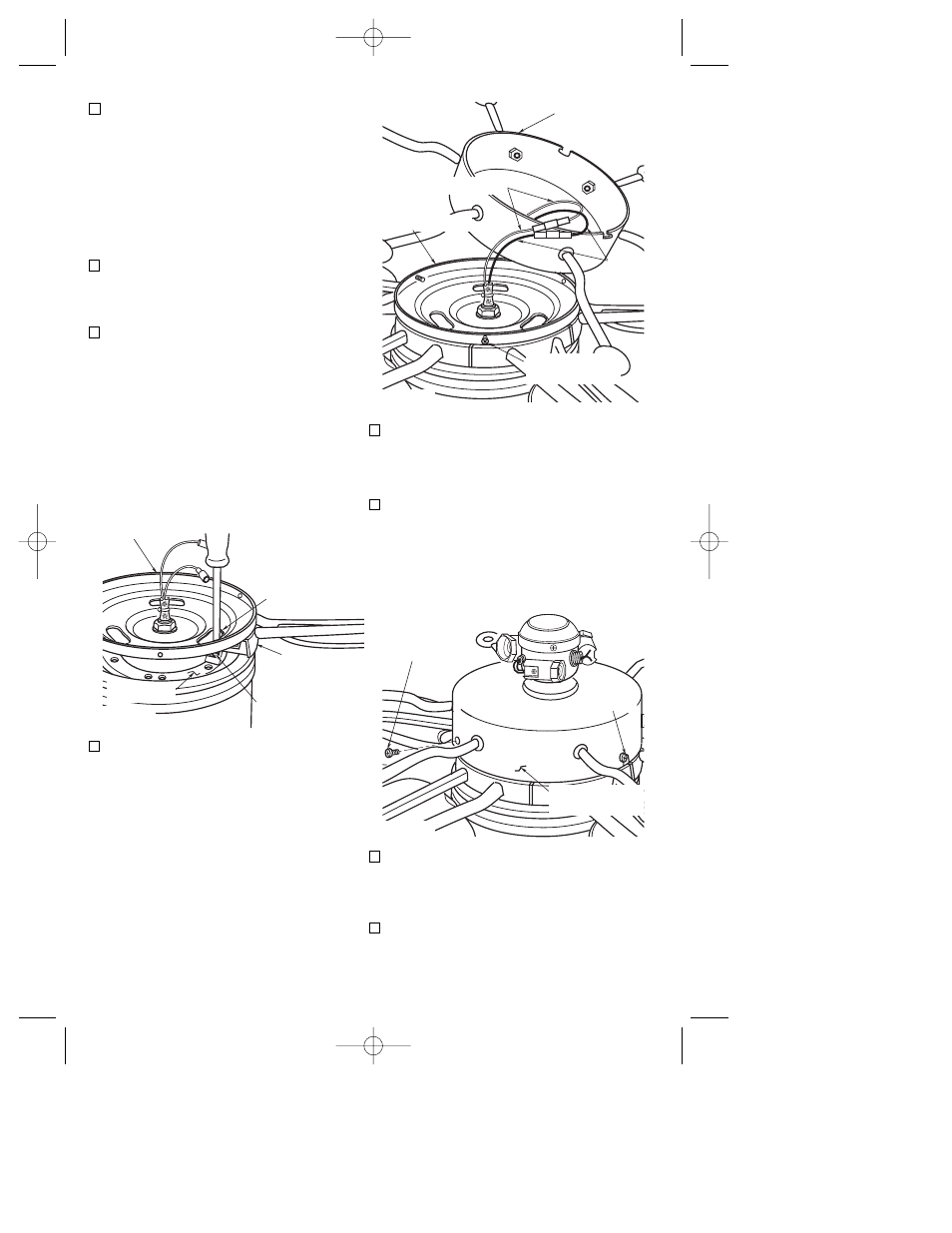

10. Align one of the threaded holes in the
motor hub with one of the slots in the
adapter plate (Figure 6). Position the
blade flange on the motor hub so one
of the screws in the blade flange aligns
with this threaded hole. Loosely tight-
en the screw. Rotate the motor hub
until the other flange screw can be
tightened through the slot of the
adapter. Repeat this procedure for the
remaining four blade assemblies, then
securely tighten all the screws.
SLOT FOR FLANGE
SCREW ACCESS
ADAPTER PLATE
1/4-20 x 11mm PAN
HEAD SCREW WITH
LOCKWASHER (2)
BLADE FLANGE
MOTOR HUB
Figure 6
ADAPTER
ASSEMBLY
ADAPTER PLATE
WHITE WIRES
BLACK
WIRES
8-32 x 12mm PAN
HEAD SCREW (2)
Figure 7
ADAPTER/LIGHT
FITTER ASSEMBLY
TIGHTEN TWO
SCREWS
INSTALL ONE
8-32 x 12mm
PAN HEAD
SCREW
Figure 8
11. Connect the white wire from the light
fitter to the white wire from the motor
(Figure 7). Connect the black wire
from the light fitter to the black wire
from the motor. Make sure both con-
nectors are securely engaged.
12. Partially install two 8-32 x 12mm pan
head screws (supplied) in two of the
threaded holes in the rim of the
adapter plate (Figure 7).
13. Position the two slots in the
adapter/light fitter assembly over the
two 8-32 x 12mm screws in the rim of
the adapter plate (Figure 8). Turn the
adapter/light fitter assembly counter-
clockwise and tighten the screws.
14. Install another 8-32 x 12mm pan head
screw in the remaining hole to secure
the adapter/light fitter assembly
(Figure 8).
15. You have completed the assembly of
your new ceiling fan. You can now pro-
ceed with hanging and wiring your fan.
