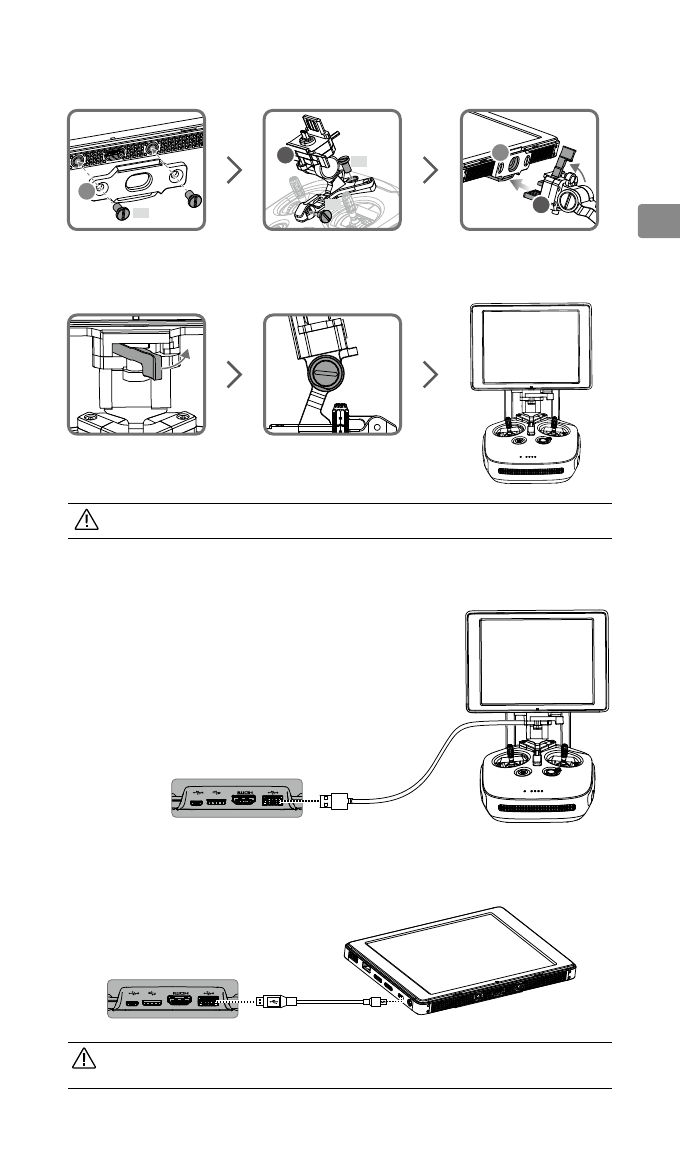

Mounting the Monitor
DO NOT obstruct the built-in GNSS during use.
Connect the Monitor
Mount Part A of the
Mounting Bracket’s
to the Monitor.
Lock the
Mounting Bracket.
Use a coin to adjust the
tightness of the pitch axis.
A
M5
When using without the Mounting Bracket, connect the Monitor to the remote
controller via a Micro USB cable.
When using the Mounting Bracket, plug the
connector on the Mounting Bracket to the remote
controller USB port.
DO NOT use the Type-C USB 2.0 HS port and Micro USB ports as the Micro
USB port will not work.
Ensure that Part B is
unlocked. Install Part
B into Part A.
B
A
Mount Part B to
the Remote Controller.
B
M6
M4
