P

OWER

E

DGER

A

TTACHMENT

O

PERATOR

'

S

M

ANUAL

9

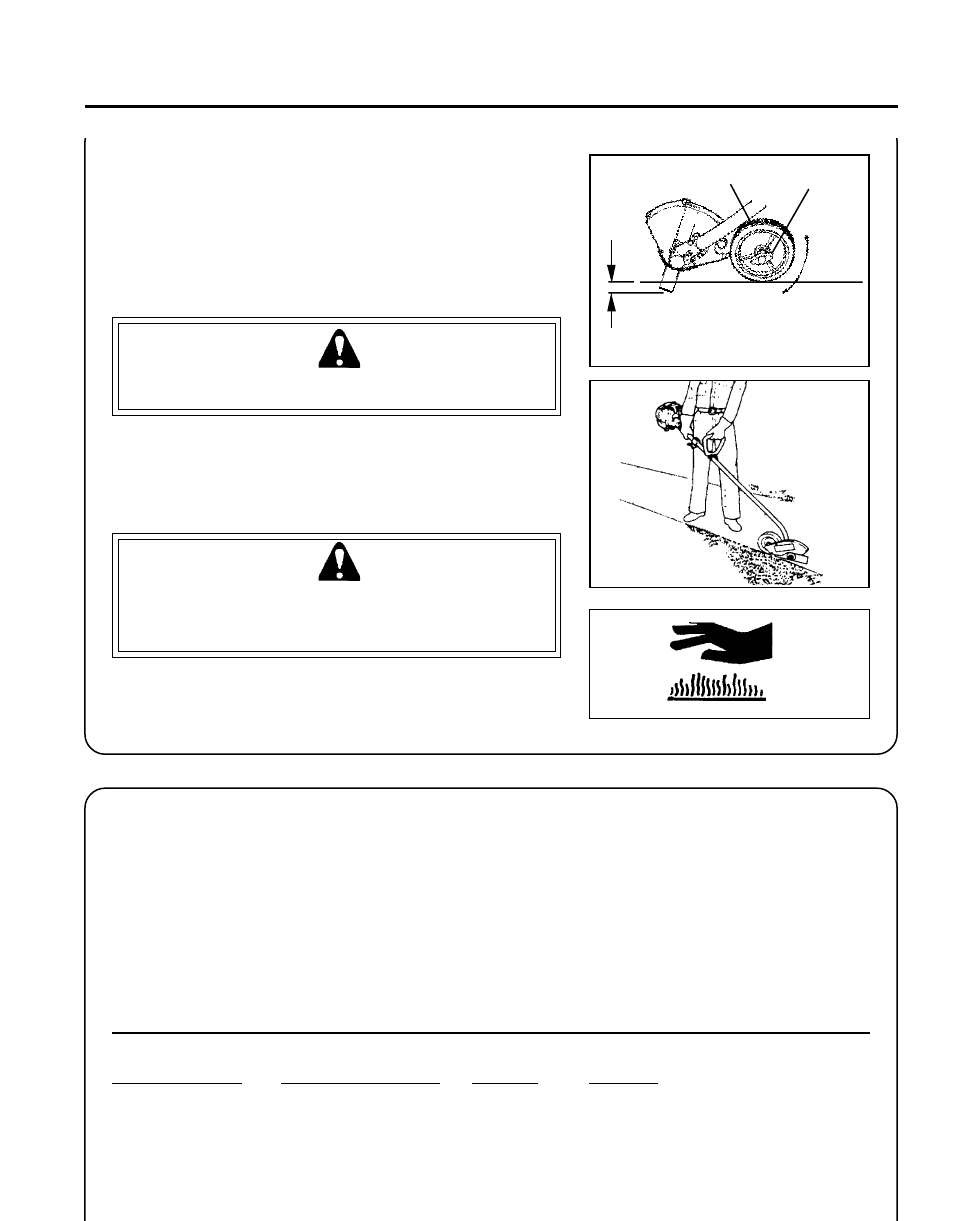

INCREASE

DEPTH

WHEEL

ADJUSTMENT

KNOB

DECREASE

DEPTH

1/2 in.

4.

Adjust the blade's depth of cut to produce a fine cut between
sidewalk and grass using a minimum blade depth, usually with
about 13 mm (1/2 in.) of the blade into the ground.

5. Before edging, plan your direction of travel so that the unit will

always be positioned on your right side and so that you walk on a
hard surface whenever possible.

6. Hold edger as shown.

WARNING

DANGER

Before edging, be sure to read and understand the entire Operator's
Manual to avoid the chance of serious injury.

7. When starting to edge, run the engine at full throttle, and lower the

blade gently into the ground, being careful not to hit the concrete
with the blade.

8. Don't force the blade. Only move forward as the blade will allow.

WARNING

DANGER

The complete unit, specifically the drive shaft assembly and muffler
exhaust area may become very hot during use. Avoid contact
during and immediately after operation, otherwise serious personal
injury may result.

M

AINTENANCE

Your ECHO edger is designed to provide many hours of trouble free service. Regular scheduled maintenance will help
your edger achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want to take your
unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the
ECHO Dealer do it, each maintenance task has been graded.

SKILL

LEVEL

Level 1 = Easy to do. Most required tools come with unit.
Level 2 = Moderate difficulty. Some specialized tools may be required.
Level 3 = Experience required. Specialized tools are required. ECHO recommends that

the unit be returned to your ECHO dealer for servicing.

MAINTENANCE

INTERVALS

Component/System

Maintenance Procedure

Skill Level

Frequency

Drive Shaft

Grease

1

Every 25 hours of use

Gear Housing

Grease

1

Every 50 hours of use

Screws/Nuts/Bolts

Inspect/Tighten/Replace

1

Before each use
