P

OWER

E

DGER

A

TTACHMENT

O

PERATOR

'

S

M

ANUAL

7

S

PECIFICATIONS

MODEL ----------------------------------------------------- POWER EDGER ATTACHMENT

Shaft Length ------------------------------------------------ 845 mm (33.25in.)

Attachment Width ----------------------------------------- 165.1 mm (6.50 in.)

Attachment Height ---------------------------------------- 552.45 mm (21.75 in.)

Weight w/blade -------------------------------------------- 2.3 kg (4.96 lb.)

Drive Shaft Type ------------------------------------------- 6.35 mm (1/4 in.) Flex Shaft

Rotation Direction ----------------------------------------- Clockwise viewed from right side

Blade Length ----------------------------------------------- 203 mm (8 in.)

Gear Case Ratio -------------------------------------------- 1.6 : 1.0 Reduction

A

SSEMBLY

POWER

HEAD

SHAFT

/

LOWER

SHAFT

ASSEMBLY

Tools Required: None

Parts Required: PAS or SRM-SB Power Head w/Shaft & Coupling.

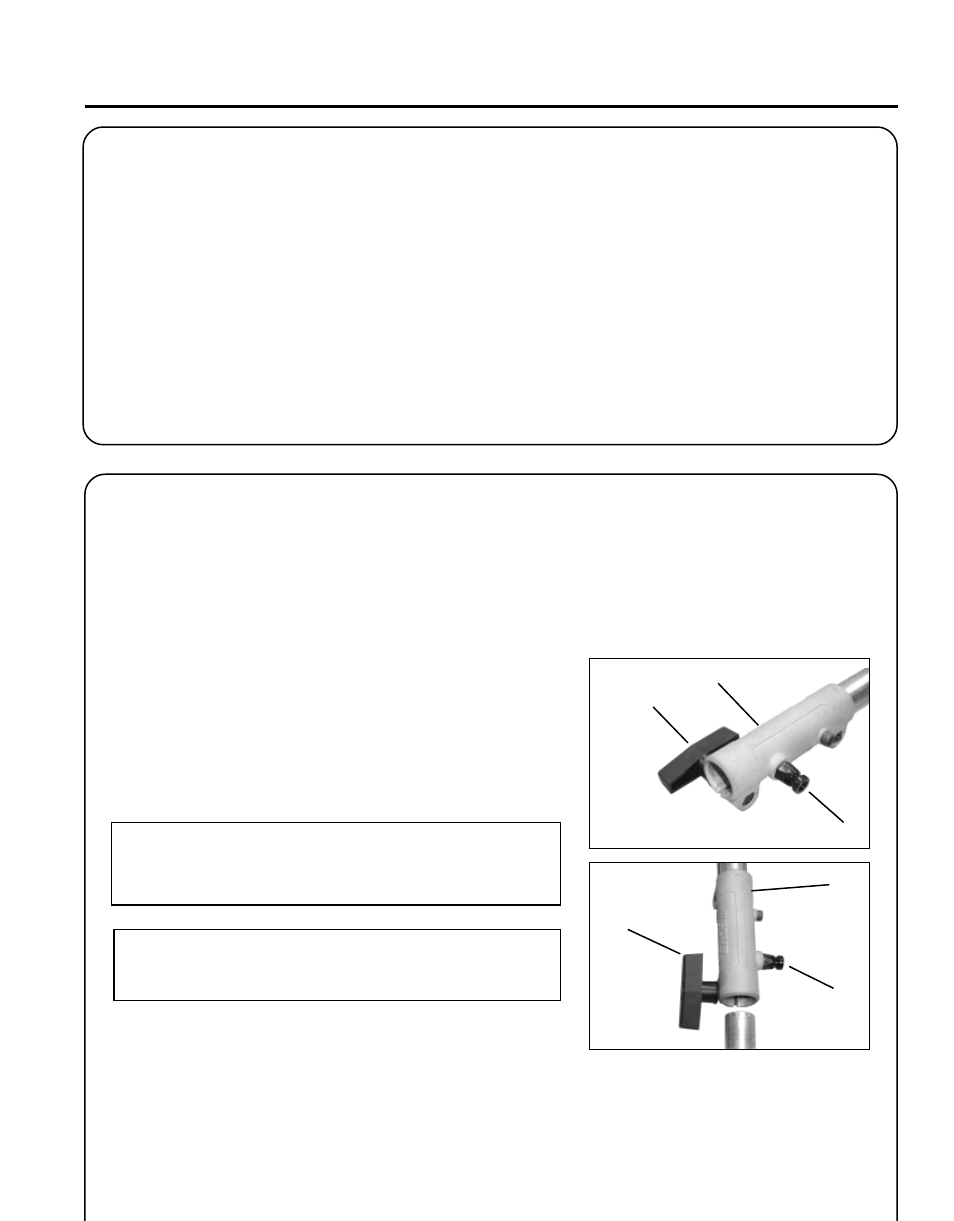

1. Set Power Head/Shaft Assembly on a level surface.

2. Pull locator pin (A) out, and turn counter-clockwise 1/4 turn to lock-

out position.

3. Carefully fit attachment drive shaft assembly into coupler (B) to

decal assembly line (C), making sure that the inner lower drive shaft
engages into the square upper drive shaft socket.

NOTE
Earlier model Power Heads may have shorter couplings. Short
couplings fit flush to decal point (E). New couplings are 4-3/4 in.
long, and fit flush to line (C).

NOTE
Lower bearing housing and head assembly must be in line with
the engine.

D

A

A

B

D

B
