3 camera mounting, 4 video installation for camera / lens adjustment – EverFocus EAN-1350 User Manual
Page 11
11 of 59

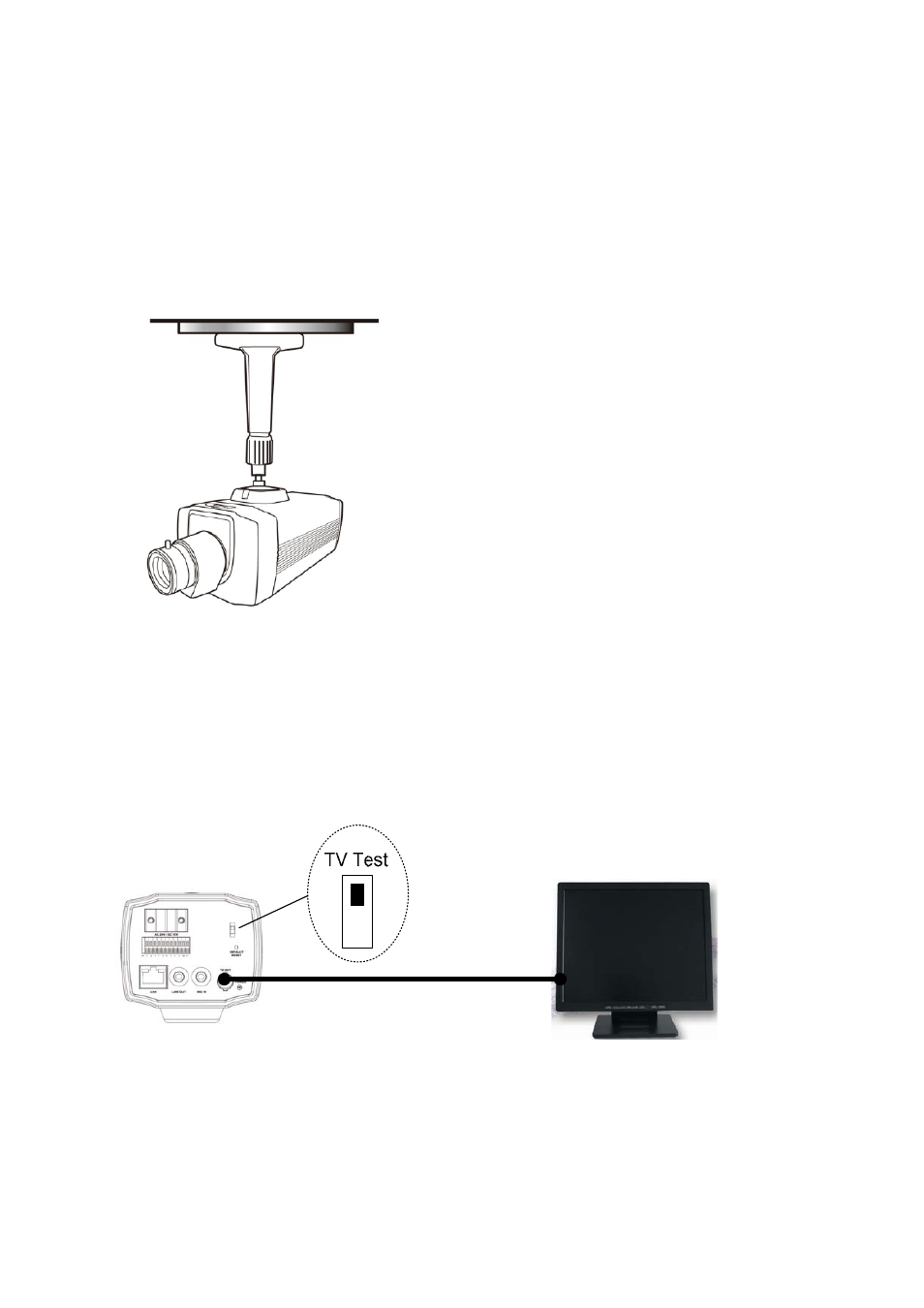

2.3 CAMERA MOUNTING
The camera monting adapter allows using standard camera brackets with 1/4" thread.
The mounting adapter can be mounted at top or botton side of the camera body.
2.4 VIDEO INSTALLATION FOR CAMERA / LENS
ADJUSTMENT
For checking and adjusting lens and camera viewing direction connect a standard video
monitor to the BNC socket.
Switch the mode switch to "TV test" and switch OFF / ON camera power.
In this "TV test" mode is no IP streaming possible.
After adjustment switch the mode back to "IP Cam" and switch OFF / ON camera power.
