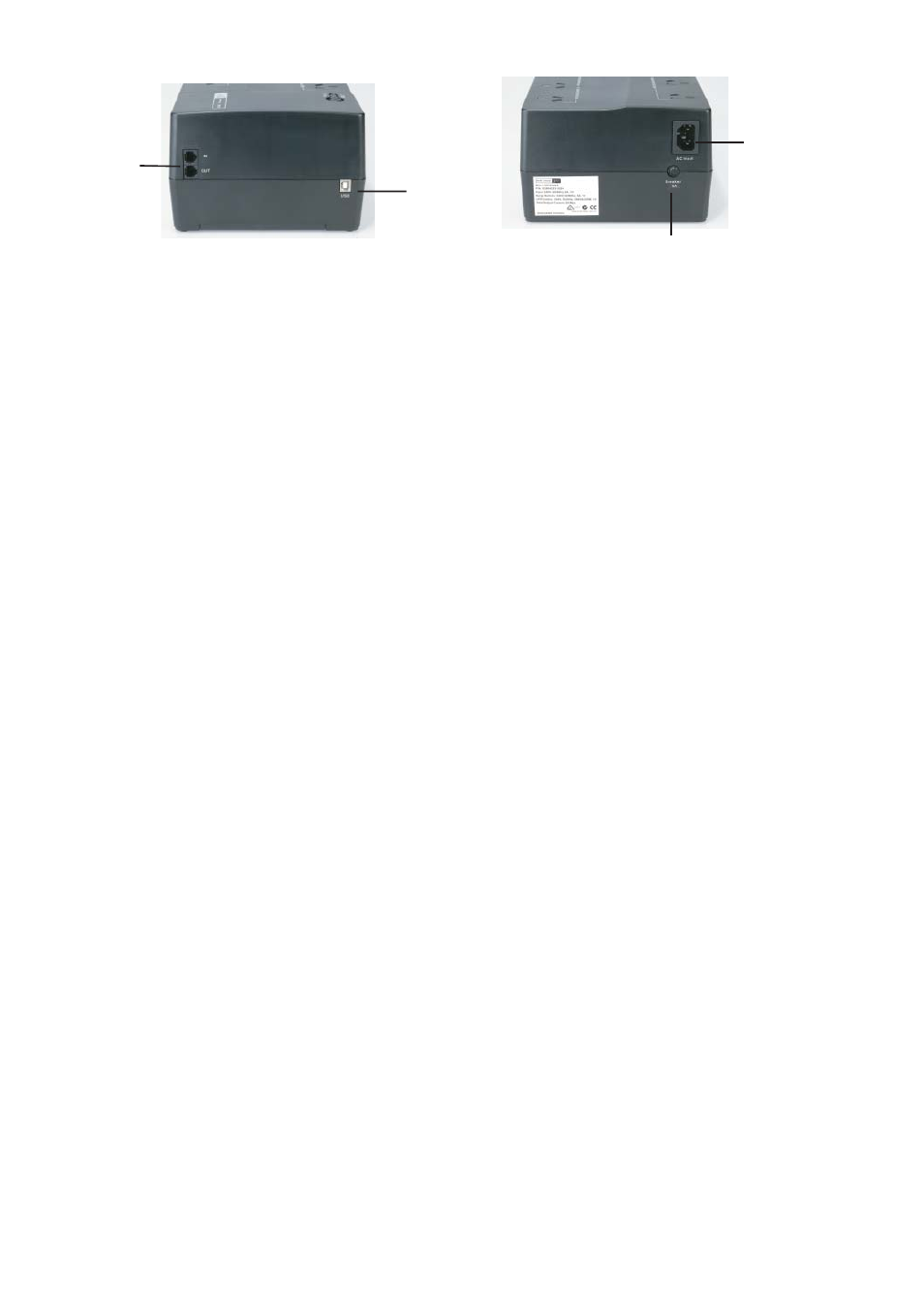

6. RJ11 Phone/Fax Protection Connectors
7. USB Communication Port
The provided LanSafe monitoring and shutdown software can be automatically
configured to save your files and shut down your computer in the event of a
prolonged power outage.
Your personal computer can receive the status as utility power line, utility power
failure, on battery and low battery by contact closure signals that are sent through
the USB port.
8. Circuit Breaker (resetable)
The button protrudes out when an overload condition occurs. If the button protrudes
out, then disconnect some non-essential equipment and reset the circuit breaker by
pushing the button inward.
9. Power connector
10 Amp IEC to 10 Amp Australian input lead provided.
Battery Replacement procedure:
1. Batteries must be replaced with identical type.
2. Disconnect UPS system from power source
3. Open battery door.
4. Disconnect used battery. Connect new battery. (It is important that connectors be
firmly attached to new batteries.
5. Close battery door.
6. Properly recycle used battery.
350VA and 500VA models (12V-4.5Ah,or 5Ah battery)
6
7
8
9
