Glide Gear POV100 Helmet (L / XL) - Manual (Page 3)

POV 100
For more information please visit our website: www.glidegear.net

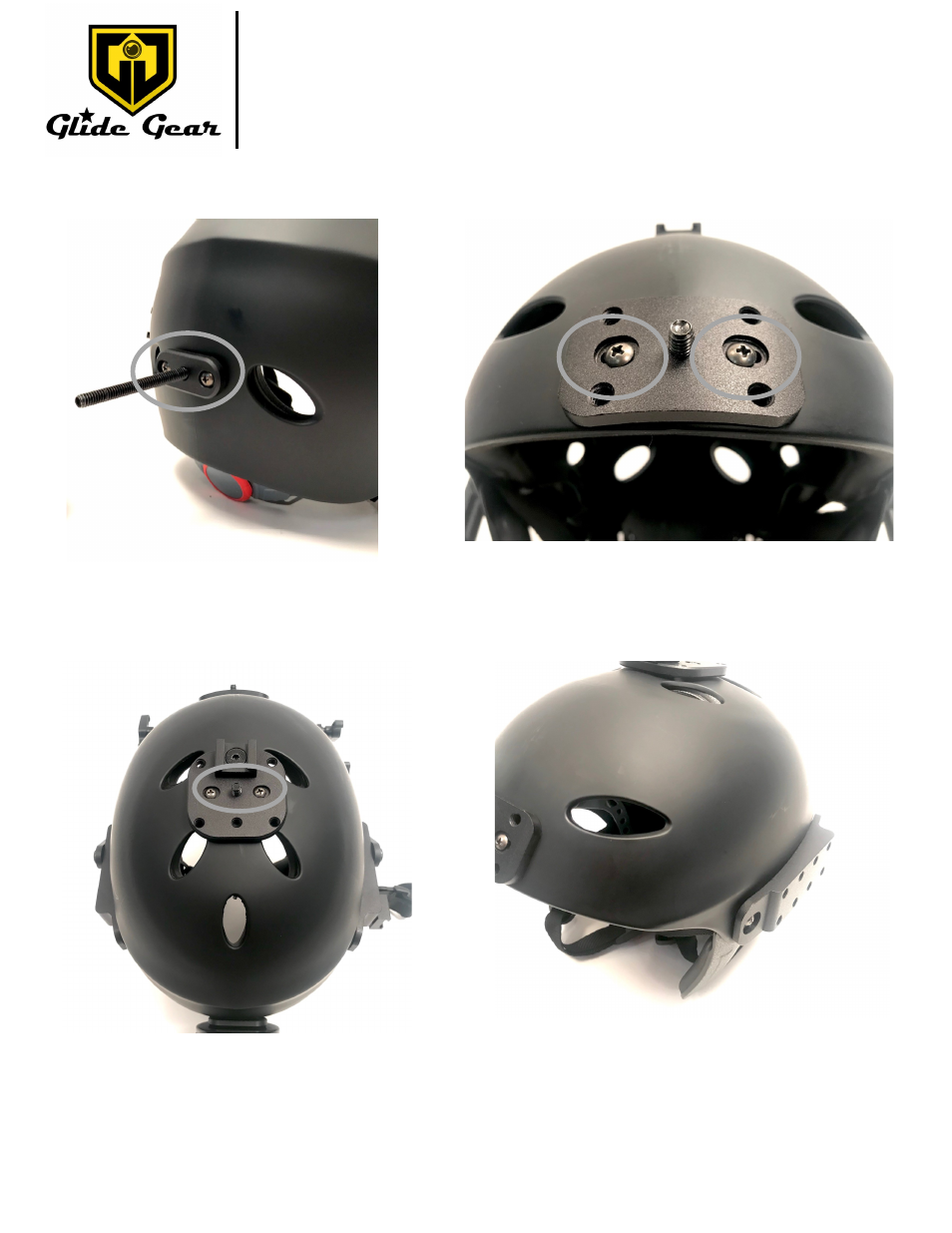

If any assembling is needed, please refer to the below section:
BACK: Mount the plate with the longest
screw to the back of the helmet using 2 of the
supplied M3 screws. Fig E.
FRONT: Mount the curved rectangular plate
to the front of the helmet using 2 of the sup-
plied M3 screws and through the 2 slots on
the plate. Fig F.
SIDES: Mount the 2 identical plates to the sides
of the helmet using 2 of the supplied M3 screws
and through the 2 slots on the plate. Each plate
should be oriented so that the plate’s thicker end
faces the back of the helmet . Fig. H.
TOP: Mount the rectangular flat plate to the
top of the helmet using 2 of the supplied M3
screws and through the 2 slots on the plate.
Fig G.
Thinner end
Thicker end
Fig F
Fig E
Fig G
Fig H
