Olympus FL-700WR Electronic Flash - Manual (Page 37)

37
EN

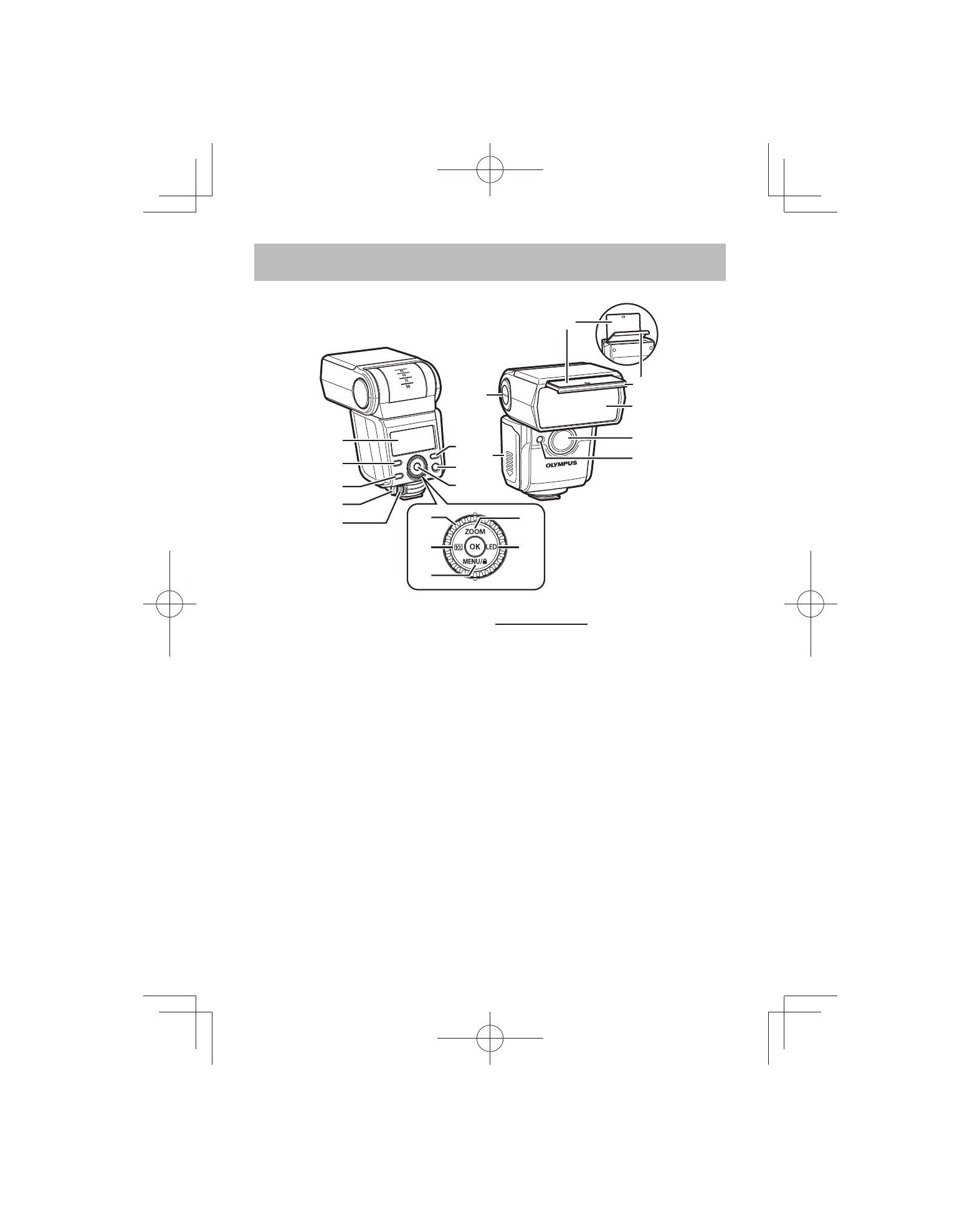

Names of Parts
1
2
g
3
4
9
0
5
f
h
6
e
a
i
8
7
c
d
j
b
1 Control panel ................................ P. 38
2
MODE button .......................... P. 42, 52
3
CHARGE/TEST button ................. P. 41
4
Latch ............................................. P. 40
5
Latch release button ..................... P. 40
6 #
/ l (radio communication mode
switching) button ..................... P. 42, 52
7 ON/OFF button ............................. P. 41
8 OK button ................................ P. 42, 52
9 PUSH (lock release) button .......... P. 47
0 Battery compartment cover ........... P. 39
a Catch light plate ............................ P. 48
b
Wide panel .................................... P. 48
c
Flash window ................................ P. 47
d
AF illuminator/LED light .......... P. 59, 60
e
Optical communication sensor
window .......................................... P. 49
Dial/Arrow pad
f
Dial .................................... P. 42, 52, 59
g a (flash compensation/flash intensity)/
H
button ............... P. 43, 44, 45, 46, 52
h MENU/ b (key locking)/
G
button
...................................................... P. 59
i
ZOOM/
F
button
........................ P. 43, 44, 45, 46, 47, 52
j LED/
I
button ............................... P. 59
