6

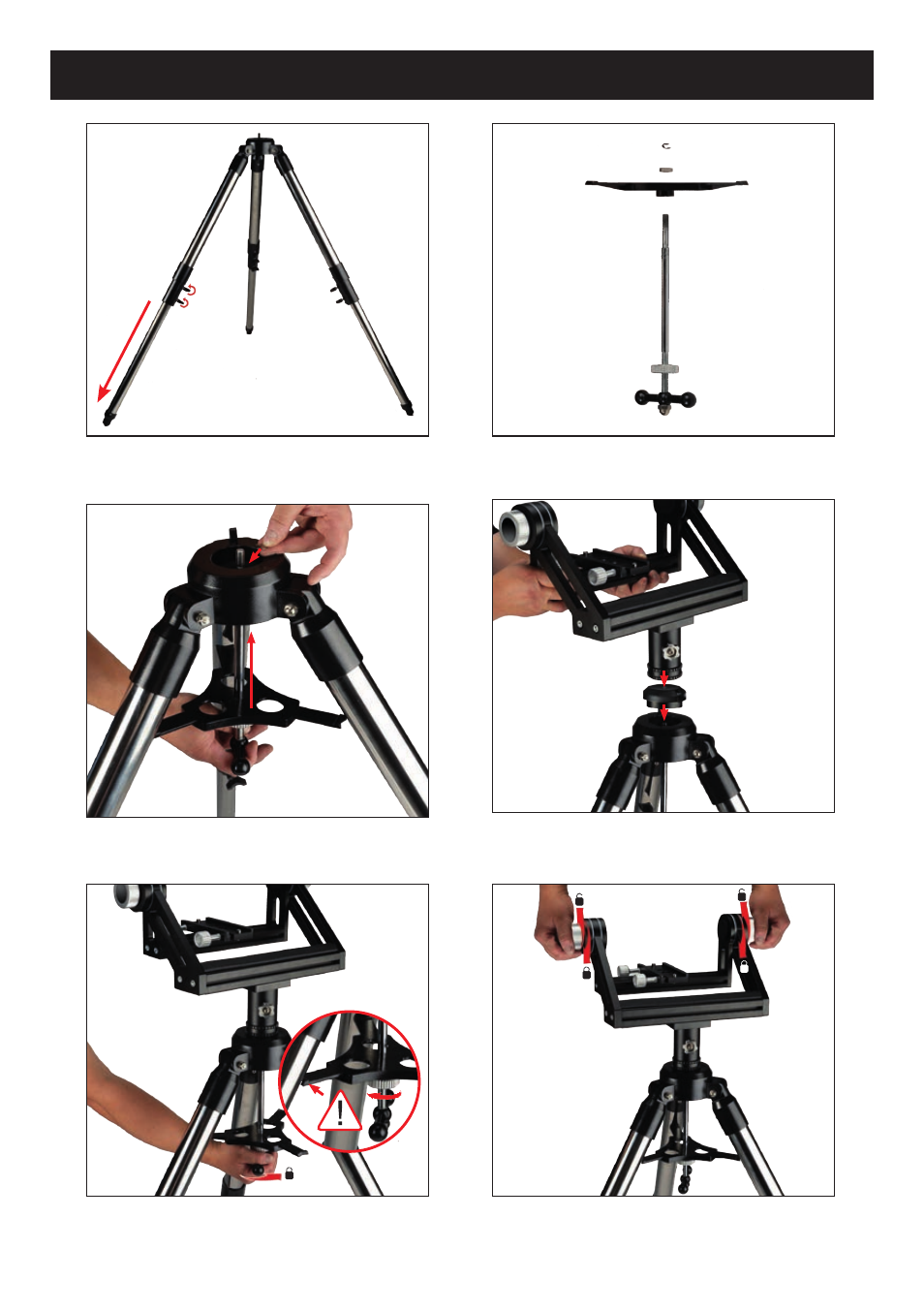

Assembly
3. Insert the central screw with the spacing
plate in the tripod head and fix it.
5. Screw the U-Mount with the tripod head
adapter and the tripod. Tighten the tripod
legs with the knurled screw.
2. Assemble spacing plate and central
screw.
6. Friction adjustment of the coupling for
the height axis.
1. Spread the tripod legs, extend and clamp
them.
4. Insert the tripod head adapter into the
tripod head. Place the U-Mount on the tripod
head adapter.
